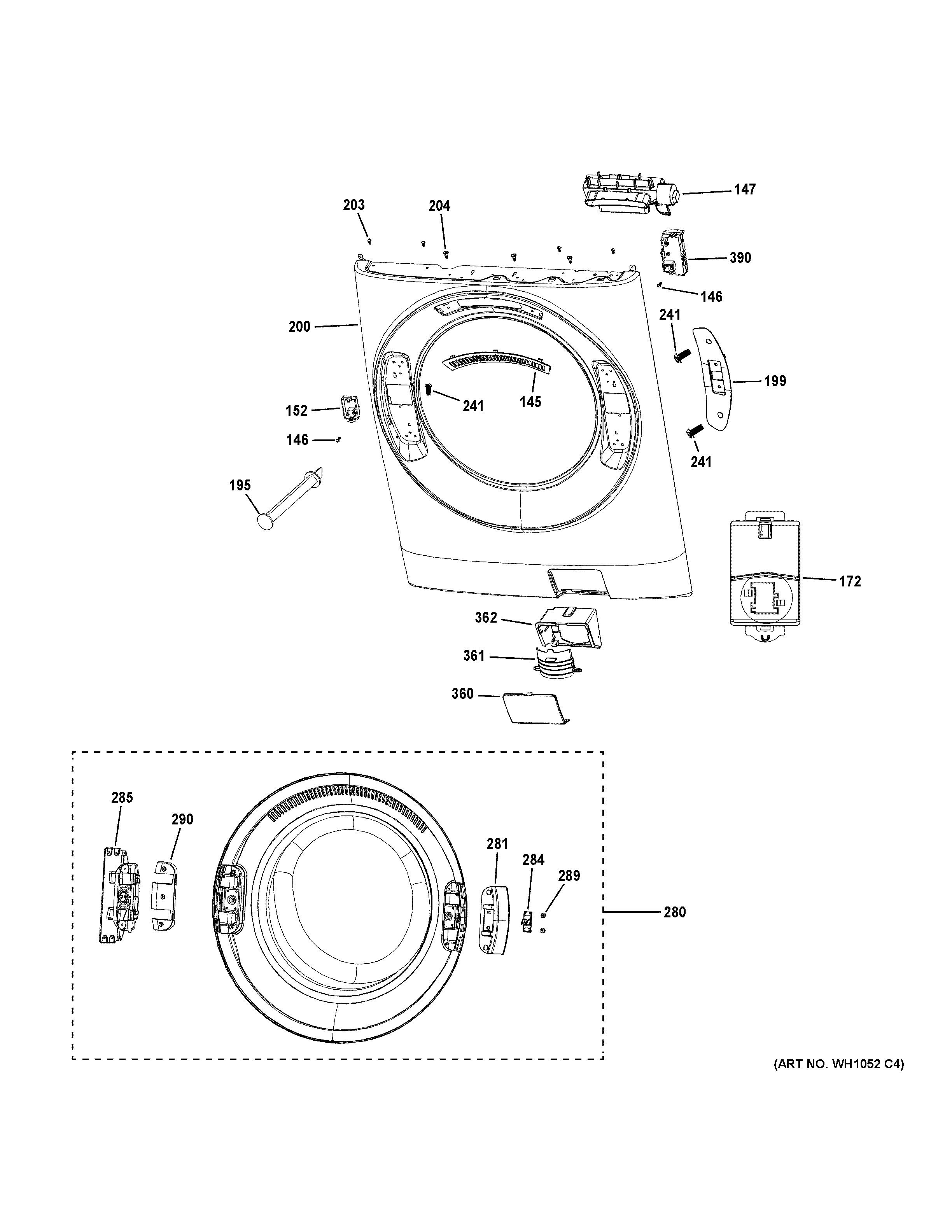

GFW650SPN1SN FRONT PANEL & DOOR

GFW650SPN1SN FRONT PANEL & DOOR

Written by

in

GFW650SPN1SN FRONT PANEL & DOOR

Products

PositionProduct
145WH13X29634 GE Vent Cover
146WH02X26240 GE Screw
147DAMPER VENT
152WH01X30359 GE Dishwasher Door Latch Harness Holder
172WH01X30352 GE Door Lock Harness Cover
195WH01X30057 GE Lock Assembly
199WH01X30344 GE Washer Latch Cover Diamond Gray
200WH13X30619 GE Dishwasher Front Panel Satin Nickel
203WH02X30339 GE Ground Screw
204WH02X26236 GE Screw Assembly
241WH02X30337 GE Door Hinge Screw
280WH10X29544 GE Washer Door
281WH13X29611 GE Support Door Strike
284WH01X32580 GE Washer Door Latch
285WH13X29632 GE Door Hinge Assembly
289WH02X29618 GE Door Strike Screw
290WH01X29637 GE Door Hinge Cover
360WH11X30618 GE Drain Pump Access Door Satin
361WH11X29650 GE Drain Pump Funnel
362WH11X29644 GE Drain Pump Housing
390WH01X29528 GE Door Lock
