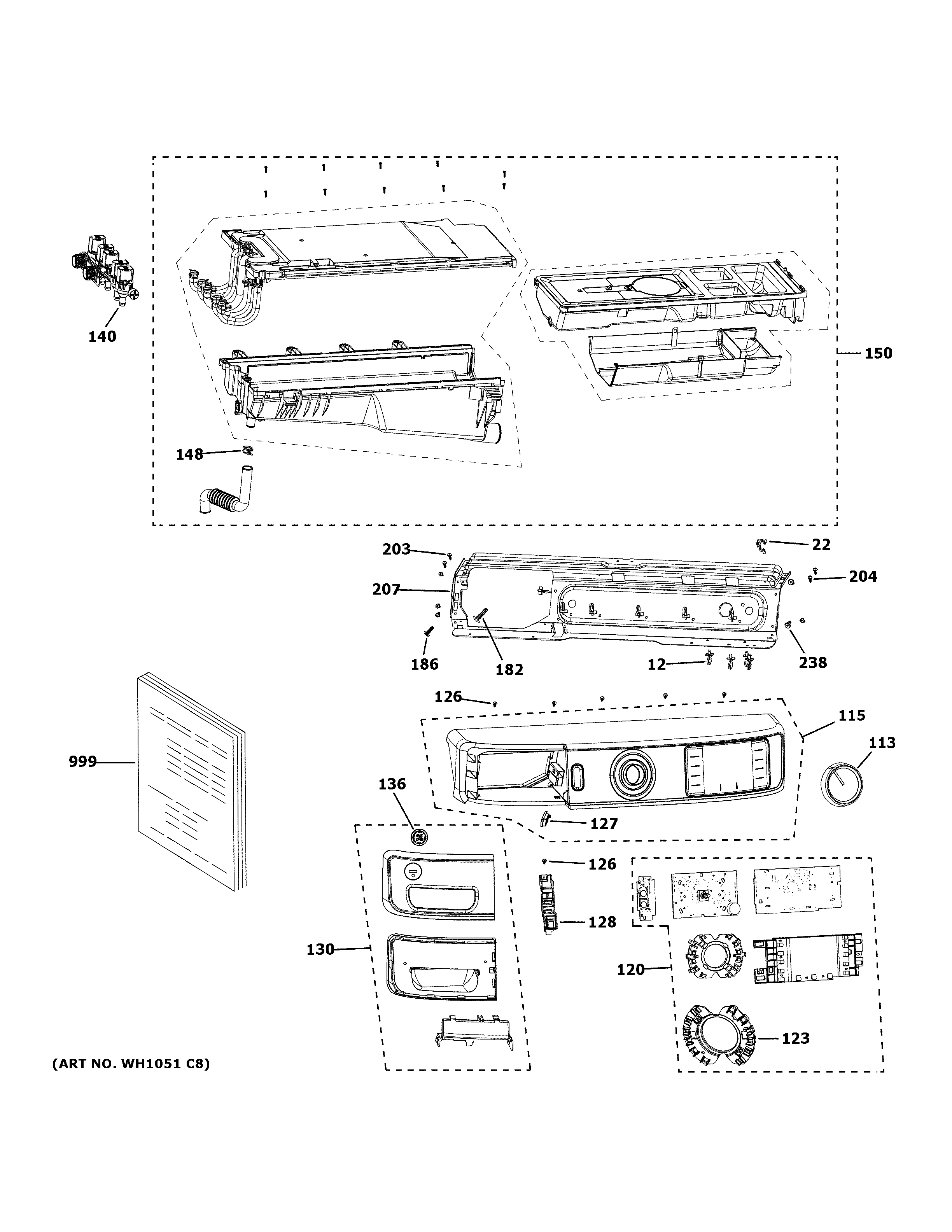

GFW850SPN0RS CONTROLS & DISPENSER

GFW850SPN0RS CONTROLS & DISPENSER

Written by

in

GFW850SPN0RS CONTROLS & DISPENSER

Products

PositionProduct
12WH02X29626 GE Ground Harness Clamp
22FIXED-LINE CLIP
113WH01X30000 GE Knob Selector
115WH22X29543 GE Control Panel Sapphire
120WH22X34919 GE Washer UI Board 850 with Sum
123LIGHT GUIDE
126M SCREW
127WH01X29669 GE RJ45 Cover
128WH01X29631 GE Power Button Support
130WH01X30777 GE Dispenser Tray Handle
136GE BADGE
140WH23X29553 GE Water Valve
148WH01X26245 GE Tub Vent Hose Clamp
150DISPENSER DRAWER
182WE02X26338 GE Front Panel Screws
186WH02X30343 GE Hinge Base Fastening Screw
203WH02X30339 GE Ground Screw
204WH02X26236 GE Screw Assembly
207WH13X29643 GE Control Bracket
238WH02X30370 GE Shoulder Bolt
999PM OWNERS AND INSTALL
999PM MINI MANUAL AND WIRING
