GFWH1300D0WW CONTROLS & DISPENSER

GFWH1300D0WW CONTROLS & DISPENSER

Written by

in

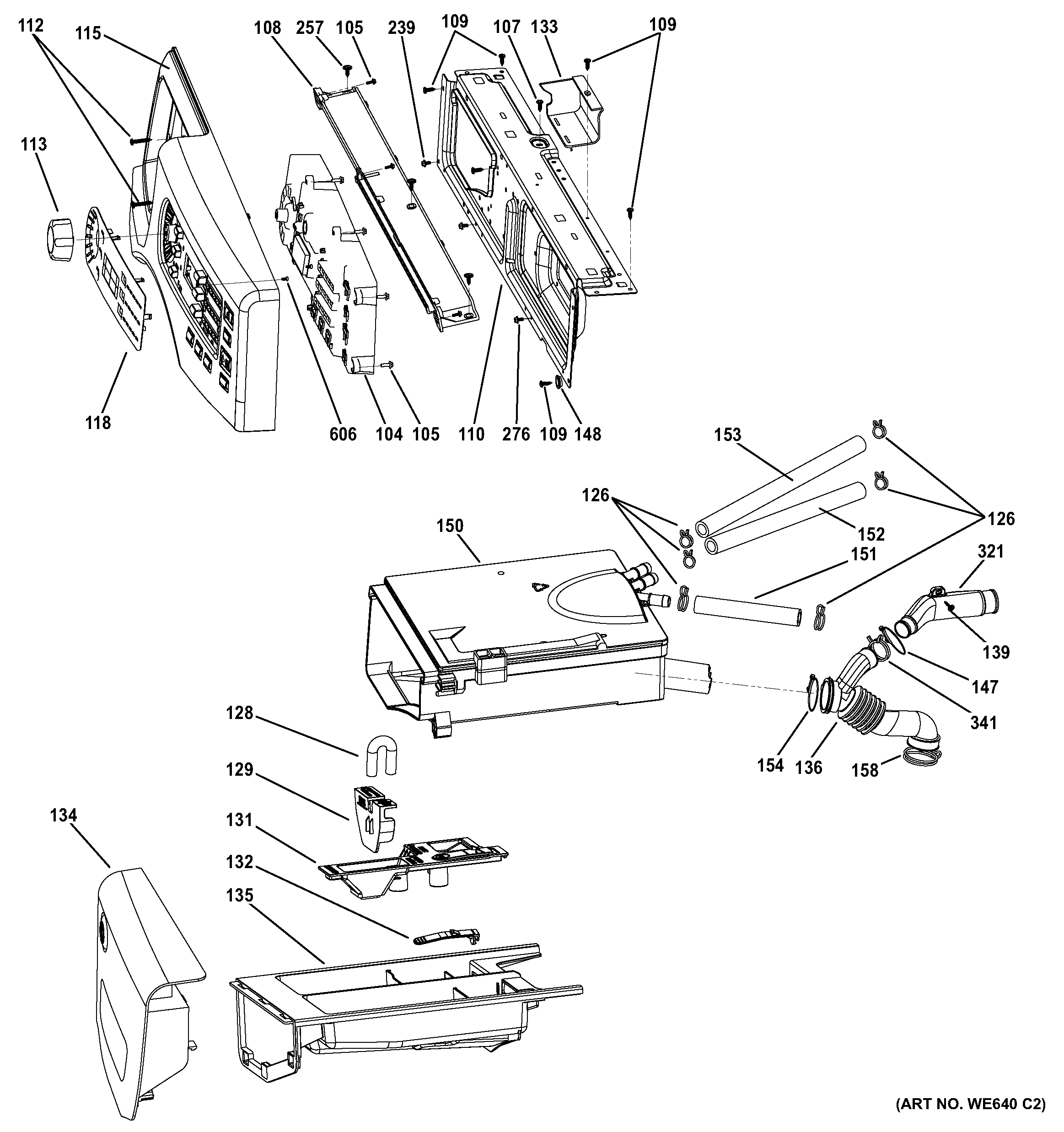

GFWH1300D0WW CONTROLS & DISPENSER

Products

PositionProduct
104WH12X10544 GE User Interface Board
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
108GEN WH16X10164
109WH02X10184 GE Screw 4.2 x 13
110WH46X10272 GE Top Front Bracket
112WH02X10185 GE Screw ST4 25
113WE04X21014 GE Washer Control Knob
115GEN WH42X10928
118GEN WH42X10932
126WH01X10324 GE Washer Water Inlet Hose
128WH41X10112 GE Siphon Pipe
129GEN WH41X10266
131WH41X10155 GE Washer Bleach Dispenser
132WH01X10245 GE Level Drawer Latch
133WH44X10296 GE Cover Harness
134GEN WH41X10314
135WH41X10302 GE Drawer
136WH41X10257 GE Water Inlet Pipe
139GEN WH02X10186
147WH02X10341 GE Washer Water Inlet Hose
148GEN WH01X10651
150WH41X10303 GE Main Box
151GEN WH41X10156
152WH41X10157 GE Inlet Water Hose for Bleach
153WH41X10158 GE Hot Water Inlet Hose
154GEN WH01X10377
158WH01X10379 GE Washer Water Inlet Hose
239WH02X10197 GE Screw St4.4 9.5
257WH02X10201 GE Screw ST4.2 13
276GEN WH02X10203
321WH41X10249 GE Vent Hose
341WH01X10275 GE Pump Clamp
606GEN WH02X10355
