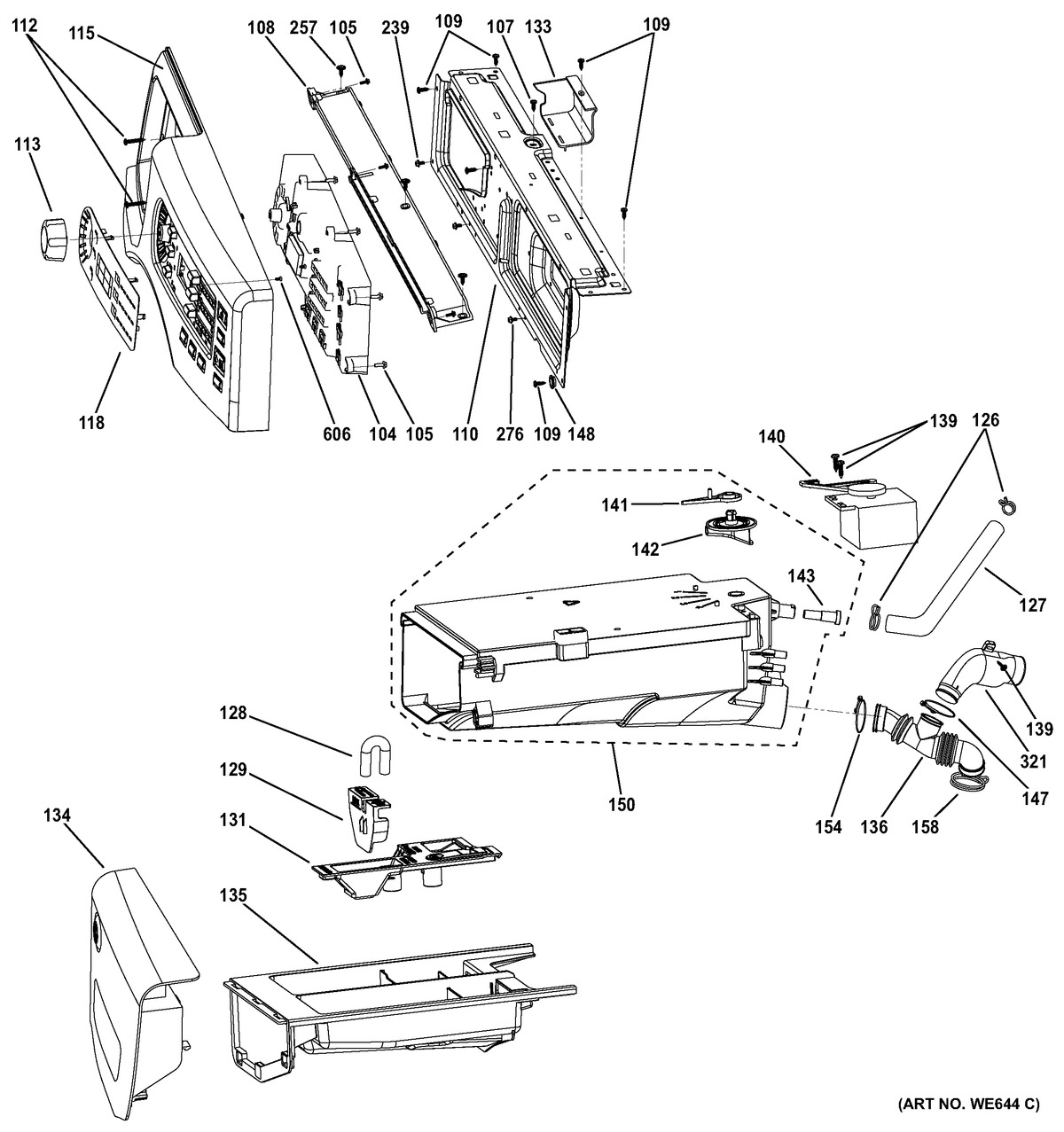

GFWH1405D0MS CONTROLS & DISPENSER

GFWH1405D0MS CONTROLS & DISPENSER

Written by

in

GFWH1405D0MS CONTROLS & DISPENSER

Products

PositionProduct
104WH12X10544 GE User Interface Board
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
108GEN WH16X10164
109WH02X10184 GE Screw 4.2 x 13
110WH46X10272 GE Top Front Bracket
112WH02X10185 GE Screw ST4 25
113WE04X21014 GE Washer Control Knob
115CONTROL PANEL
115GEN WH42X10938
118DISPLAY TRIM
126WH01X10324 GE Washer Water Inlet Hose
127INLET WATER HOSE 1
128WH41X10179 GE Siphon Pipe
129WH41X10264 GE Liquid Detergent Insert
131WH41X10181 GE Bleach Softener Cover
133WH44X10296 GE Cover Harness
134GEN WH41X10314
134GEN WH41X10315
135WH41X10185 GE Drawer Dispenser Assembly
136WH41X10257 GE Water Inlet Pipe
139GEN WH02X10186
140WH43X10059 GE Washer Dispenser Actuator
141WH01X10247 GE Diverter Indicator
142WH01X10376 GE Washer Lever Plate
143WH41X10121 GE Washer Dispenser Inlet
147WH02X10341 GE Washer Water Inlet Hose
148GEN WH01X10651
150WH41X10307 GE Main Box
154GEN WH01X10377
158WH01X10379 GE Washer Water Inlet Hose
239WH02X10197 GE Screw St4.4 9.5
257WH02X10201 GE Screw ST4.2 13
276GEN WH02X10203
321WH41X10249 GE Vent Hose
606GEN WH02X10355
