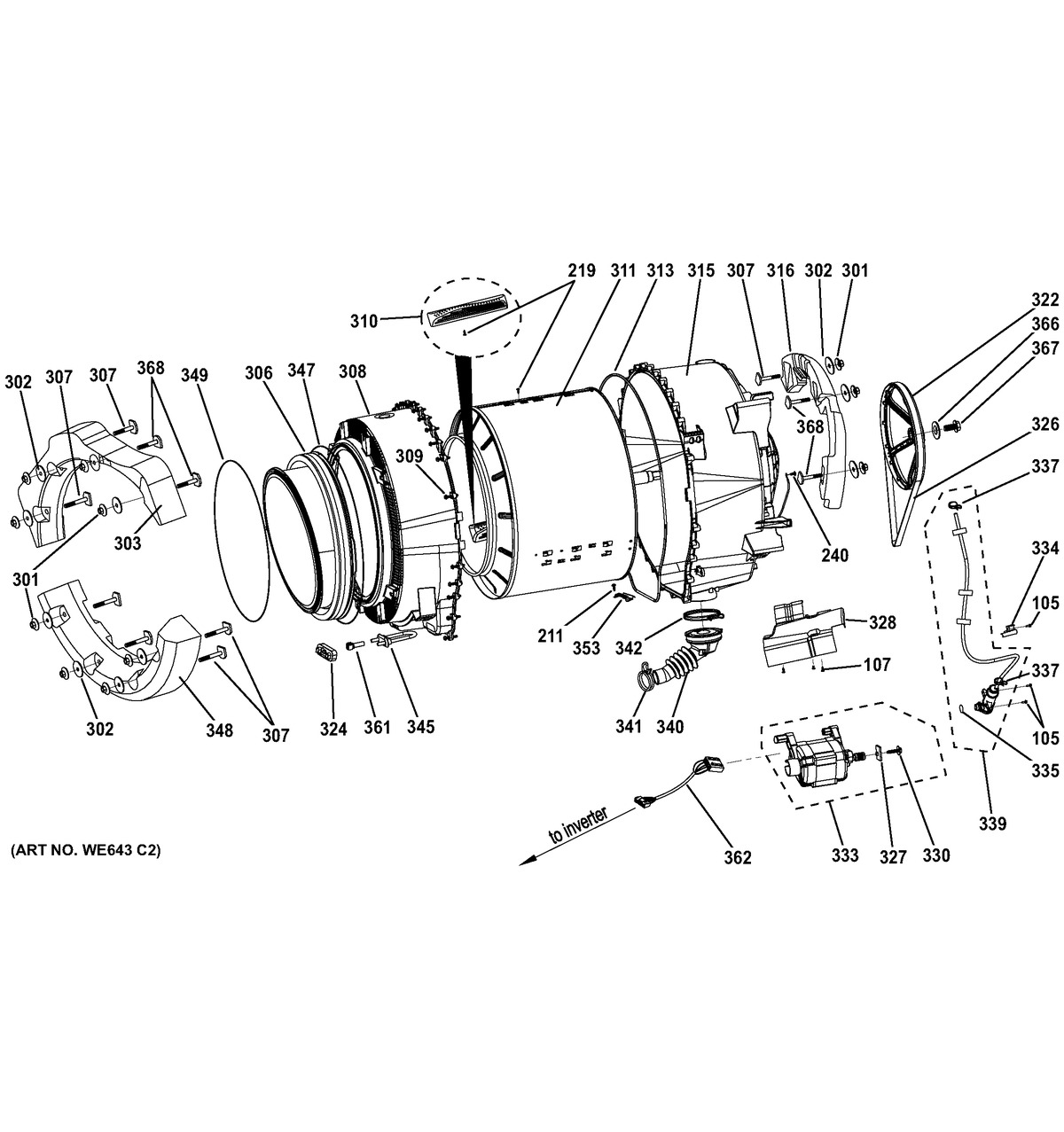

GFWH1405D0MS TUB & MOTOR

GFWH1405D0MS TUB & MOTOR

Written by

in

GFWH1405D0MS TUB & MOTOR

Products

PositionProduct
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
211GEN WH02X10188
219WH02X10189 GE Screw ST4 13 F05
301WH02X10204 GE Nut M8
302WH02X10205 GE Washer
303GEN WH01X10656
306WH08X10064 GE Washer Boot Gasket
307WH02X10207 GE M8 Bolt 48
308GEN WH45X10121
309WH02X10208 GE Screw ST6 35
310WH16X10128 GE Baffle
311BASKET ASSEMBLY
313WH08X10054 GE Tub Seal
315GEN WH45X10096
316GEN WH01X10521
322WH07X10022 GE Washer Drive Pulley Kit
324GEN WH44X10264
326WH08X10050 GE Washer Drive Belt
327WH02X10212 GE Motor
328WH16X10131 GE Washer Motor Shield
330GEN WH02X10213
333WH20X10078 GE Motor Assembly
334WH01X10396 GE Pressure Hose Support
335WH01X10397 GE Air Chamber Ring
337WH01X10273 GE Pressure Hose Clamp
339GEN WH41X10190
340GEN WH41X10250
341WH01X10275 GE Pump Clamp
342GEN WH01X10276
345GEN WH12X10309
347WH01X10277 GE Washer Door Gasket Clamp
348GEN WH01X10657
349WH01X10279 GE Boot Seal Retaining Ring
361WH12X10351 GE Heater Thermistor
362WH19X10070 GE Motor Harness
366WH02X10337 GE Washer 34×12.5×3.5 mm
367WH02X10334 GE Bolt Flange M12 25
368WH02X10333 GE Bolt M8 x 38 Front Counterweight
