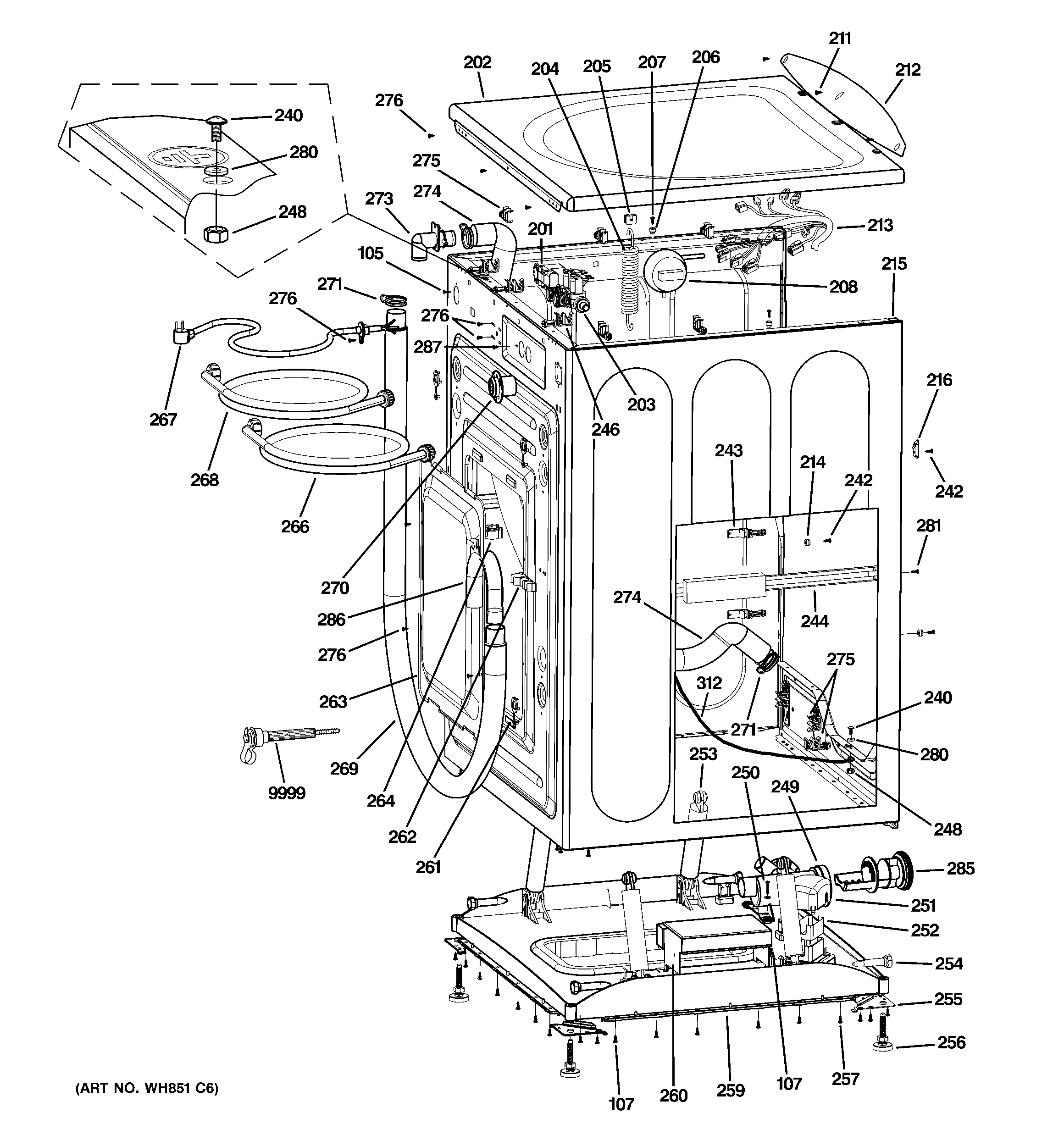

GFWN1000L2WW CABINET & TOP PANEL

GFWN1000L2WW CABINET & TOP PANEL

Written by

in

GFWN1000L2WW CABINET & TOP PANEL

Products

PositionProduct
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
201WH41X10301 GE EMI Filter
202GEN WH44X10173
203WH13X10029 GE Washer 2-In-3 Out Water Valve
204WH05X10009 GE Washer Suspension Spring
205WH01X10251 GE Han R Spring
206WH01X10252 GE Top Panel Pin
207GEN WH02X10187
208GEN WH12X10307
211GEN WH02X10188
212GEN WH44X10174
213GEN WH19X10050
214WH01X10253 GE Front Panel Pin
216WH16X10073 GE Front Panel
240GEN WH02X10198
242GEN WH02X10182
243WH16X10074 GE Catch Wire
246WH16X10076 GE Wire Catch
248GEN WH02X10199
249WH23X10028 GE Washer Drain Pump
250WH02X10200 GE Screw ST4*25
251GEN WH44X10176
252GEN WH44X10177
253WH01X10343 GE Washer Shock Damper
254WH01X10261 GE Damper Pin
255WH16X10077 GE Corner Bracket
256GEN WH46X10130
257WH02X10201 GE Screw ST4.2 13
260GEN WH12X10519
261GEN WH44X10178
262WH01X10262 GE Drain Hose Catch
263GEN WH46X10132
264WH01X10263 GE Washer Inside Drain Hose
266GEN WH41X10215
267GEN WH19X10051
268GEN WH41X10216
269WH41X10126 GE Drain Hose Outside
270GEN WH01X10264
271WH01X10265 GE Drain Hose Clamp
273WH01X10266 GE Drain Hose Coupling
274GEN WH41X10127
275WH16X10078 GE Wire Catch
276GEN WH02X10203
280GEN WH02X10218
281WH02X10219 GE Screw ST4 10
285PUMP FILTER
286WH41X10133 GE Drain Hose U-Shape
312GEN WH19X10067
9999WE25X10028 GE Washer Stacking Kit
9999GEN WH49X10089
