GFWN1000L2WW TUB & MOTOR

GFWN1000L2WW TUB & MOTOR

Written by

in

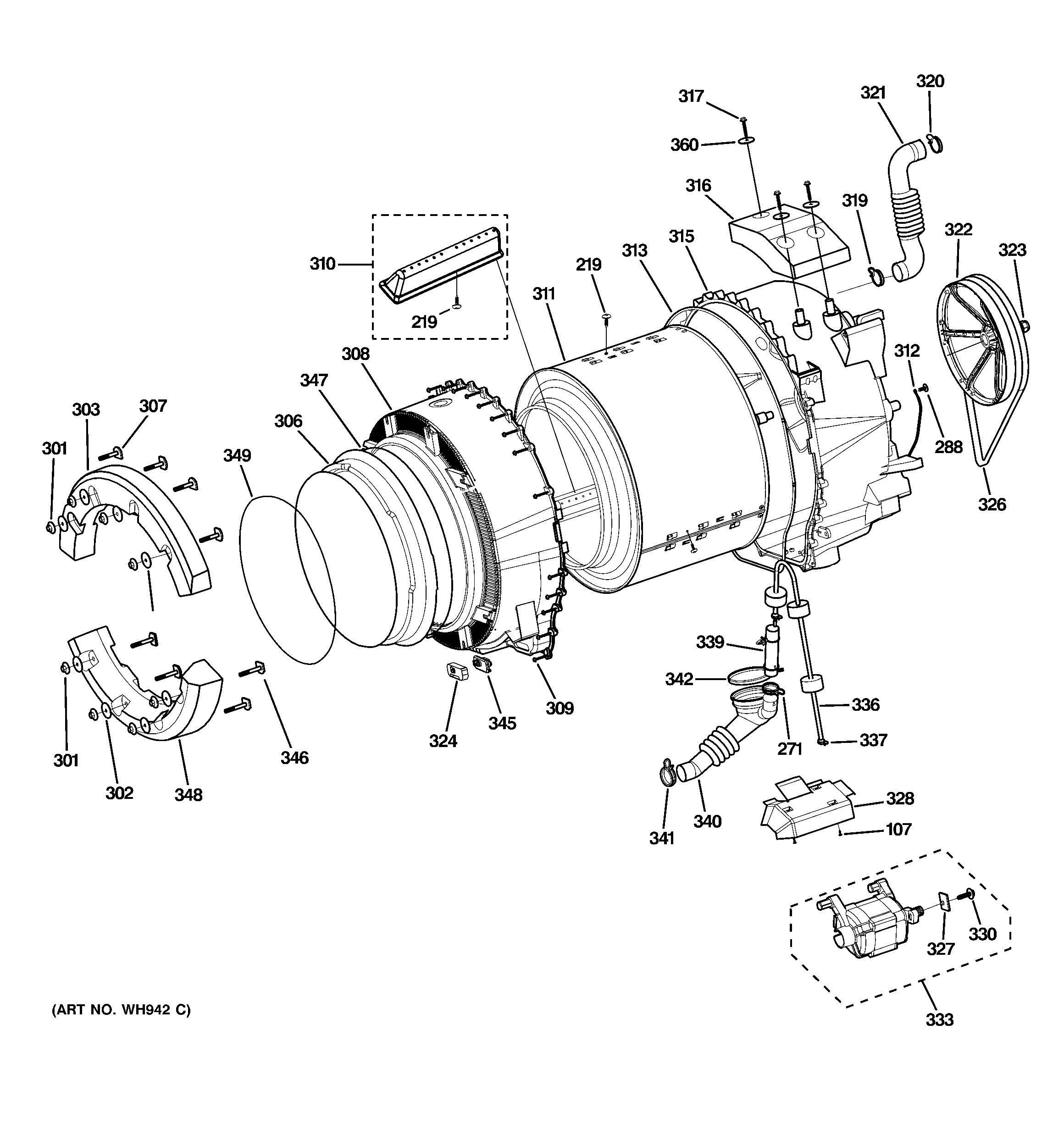

GFWN1000L2WW TUB & MOTOR

Products

PositionProduct
107WH02X10183 GE Screw ST4 13
219WH02X10189 GE Screw ST4 13 F05
271WH01X10265 GE Drain Hose Clamp
288WH02X10234 GE Screw M5 12
301WH02X10204 GE Nut M8
302WH02X10205 GE Washer
303GEN WH01X10267
306WH08X10049 GE Door Boot Seal Gasket
307WH02X10207 GE M8 Bolt 48
308GEN WH45X10101
309WH02X10208 GE Screw ST6 35
310GEN WH16X10079
311WH45X10142 GE Basket Assembly
312GEN WH19X10067
313GEN WH08X10023
315GEN WH45X10071
316GEN WH01X10268
317GEN WH02X10210
319GEN WH01X10270
320GEN WH01X10271
321GEN WH41X10128
322GEN WH07X10016
323GEN WH02X10211
324GEN WH44X10243
326GEN WH08X10048
327WH02X10212 GE Motor
328GEN WH16X10080
330GEN WH02X10213
333WH20X10028 GE Motor Assembly Kit
336GEN WH41X10262
337WH01X10273 GE Pressure Hose Clamp
339GEN WH41X10130
340GEN WH41X10131
341WH01X10275 GE Pump Clamp
342GEN WH01X10276
345WH12X10351 GE Heater Thermistor
346GEN WH02X10216
347WH01X10277 GE Washer Door Gasket Clamp
348GEN WH01X10278
349WH01X10279 GE Boot Seal Retaining Ring
360GEN WH02X10221
