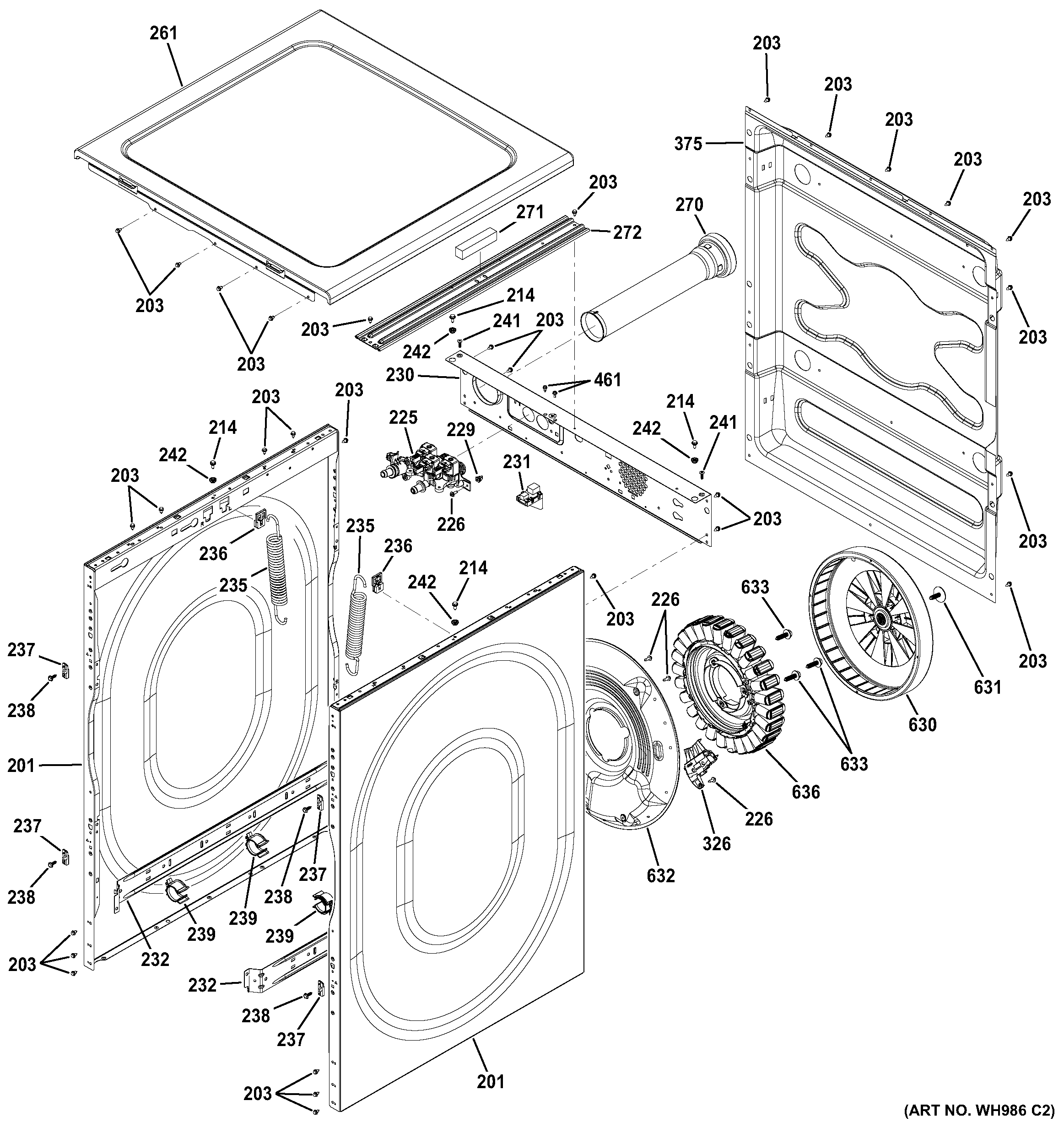

GFWS2500F0WW CABINET (1)

GFWS2500F0WW CABINET (1)

Written by

in

GFWS2500F0WW CABINET (1)

Products

PositionProduct
201WH10X10011 GE Side Panel
203WH02X10396 GE Screw 10-16 B HXW 3/8 S
214WH02X10398 GE Screw Type A 10-16 SHLDR
225WH13X10066 GE Washer Water Valve Assembly
230WH10X10024 GE Rear Top Panel
231WH12X28437 GE RJ45 Assembly
232BRACKET SUPPORT SIDE
235WH01X10730 GE Suspension Spring
236WH01X10732 GE Support Spring
237WH01X10733 GE Front Support Pin
239WH01X10734 GE Clip
242BUSH GUIDE PIN
270WH01X10749 GE Air Vent Tube
271INSULATION LID
272BRACKET TOP
326WH12X23995 GE Rotor Position Sensor
375GEN WH44X10323
461WZ5X158D GE Screw Package of 12
630WH39X10014 GE Rotor
631WH02X10409 GE Screw 5/16-24 Hexagon
632WH10X10019 GE Motor Shield
633WH02X10404 GE Screw 5/16-18 HXW 1 1/4 S
636WH39X10013 GE Stator
