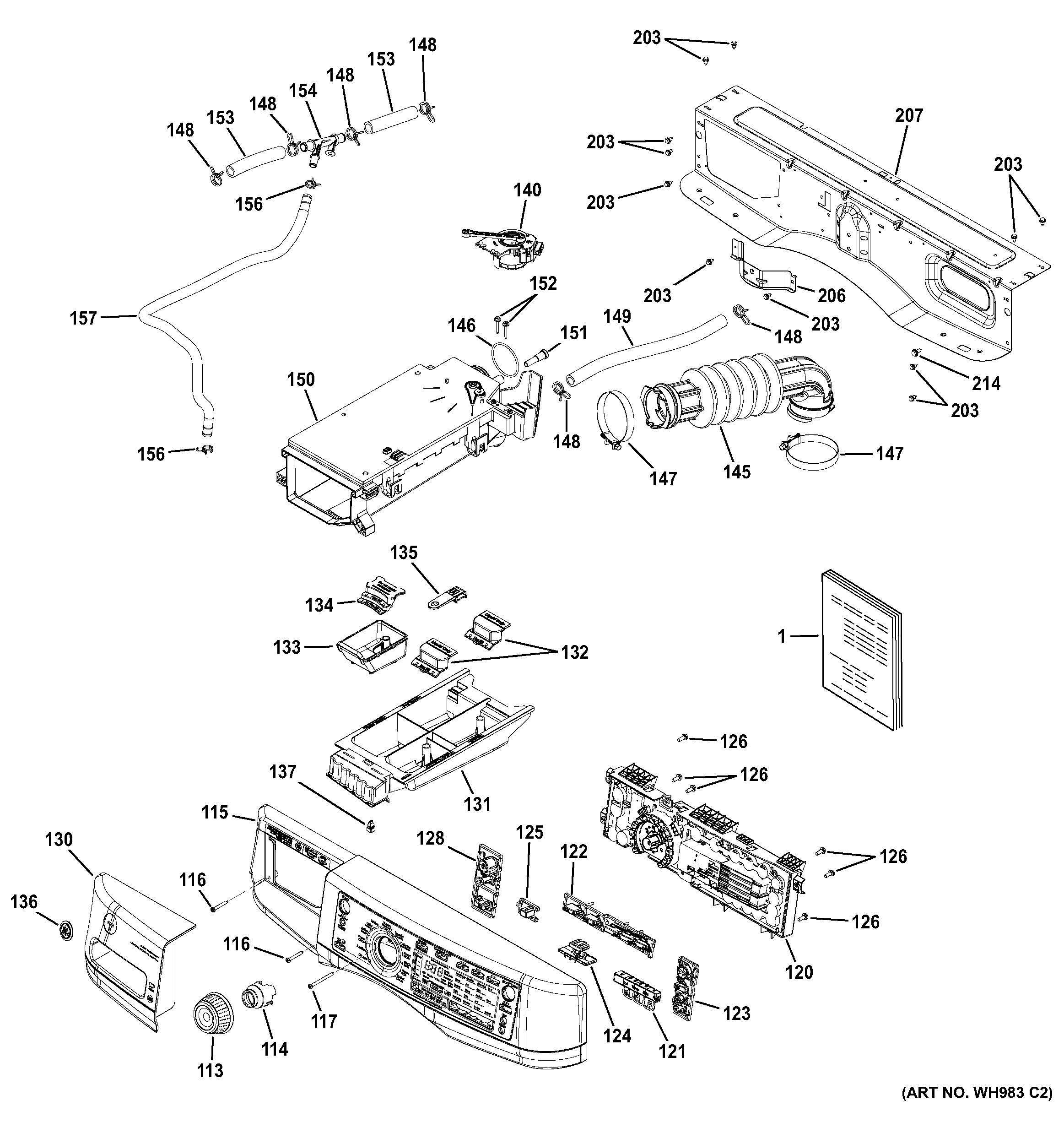

GFWS2500F0WW CONTROLS & DISPENSER

GFWS2500F0WW CONTROLS & DISPENSER

Written by

in

GFWS2500F0WW CONTROLS & DISPENSER

Products

PositionProduct
1GEN 49-90469
1GEN 31-16858
1GEN 31-16698
113WE01X10415 GE Knob
114WH01X10743 GE Washer Dryer Knob Retainer
115GEN WH42X11005
116WH02X10403 GE Screw 8-18 AB PNP 1-1/4"
117WH02X10408 GE Screw 8-18 AB PNP 2-1/8"
120WH12X25837 GE User Interface
121WH42X11000 GE Button Tree Assembly – Soil
122BUTTON TREE ASM – EWASH
123WH42X11002 GE Button Tree Assembly – Start
124GEN WH42X11006
126WR01X10619 GE Refrigerator Screw
128WH42X10983 GE Button Tree Assembly
130GEN WH47X10046
131WH47X10033 GE Drawer Body Dispenser
132WH47X20146 GE Siphon Cap
133WH47X20147 GE Detergent Cup
134WH47X10036 GE Dishwasher Cup Siphon Detergent
135WH47X10035 GE Refrigerator Drawer Dispenser Retainer
136WE19M10949 GE Badge
137WH02X10395 GE Grommet Closed Screw
140WH47X10040 GE Drive Assembly Diverter
145WH41X10337 GE Fill Hose Sub Assembly
146WH01X10741 GE O-Ring
147WH01X10739 GE Clamp
148WH01X10740 GE Clamp
149WH41X10338 GE Hose
150WH47X20507 GE Dispense Body Manual Assembly
151WH01X10738 GE Inlet Dispenser Nozzle
152WH02X10400 GE Scraper 6-19 BHXWP 1S
153WH41X10339 GE Hose
154WH41X10355 GE Channel Y
156WH01X10747 GE Clamp
157WH41X10351 GE Hose Assembly (Glass Clean)
203WH02X10396 GE Screw 10-16 B HXW 3/8 S
206WH10X10014 GE Control Bracket
207WH10X10013 GE Control Bracket
214WH02X10398 GE Screw Type A 10-16 SHLDR
