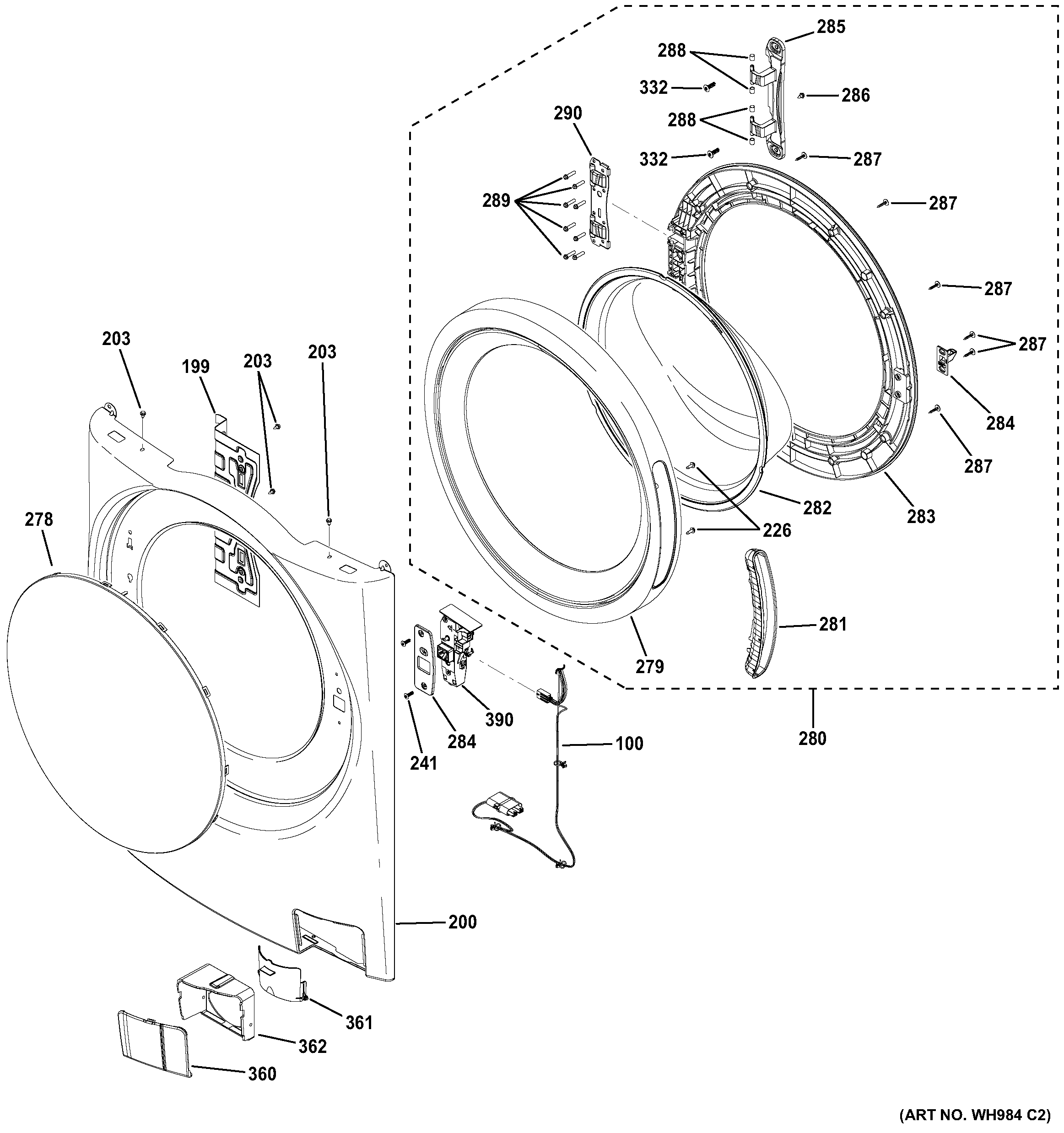

GFWS2500F0WW FRONT PANEL & DOOR

GFWS2500F0WW FRONT PANEL & DOOR

Written by

in

GFWS2500F0WW FRONT PANEL & DOOR

Products

PositionProduct
100WH19X10131 GE Main Harness
199WH10X10020 GE Stiffener Housing
200PANEL FRONT ASM (WH)
203WH02X10396 GE Screw 10-16 B HXW 3/8 S
278WH44X21159 GE Door Cover Protector
279WH46X10284 GE Door Cover
280DOOR ASM MIDLINE
282WH46X25561 GE Glass Door
283WH46X10287 GE Door Frame
284WH01X10731 GE Door Striker
285WH01X10723 GE Hinge
287WH02X10394 GE Screw 8-18 AB TRQ 5/8 Stainless Steel
288WH01X10722 GE Hinge Bushing
290WH01X10724 GE Hinge Plate
332WH02X10139 GE Screw 10-32 B TRT-25 5/8
360WH44X10326 GE Pump Housing Cover
361WH01X10754 GE Laundry Cleanout Funnel
362WH01X10753 GE Pump Housing Enclosure
390WH01X23494 GE Washer Door Lock Module
