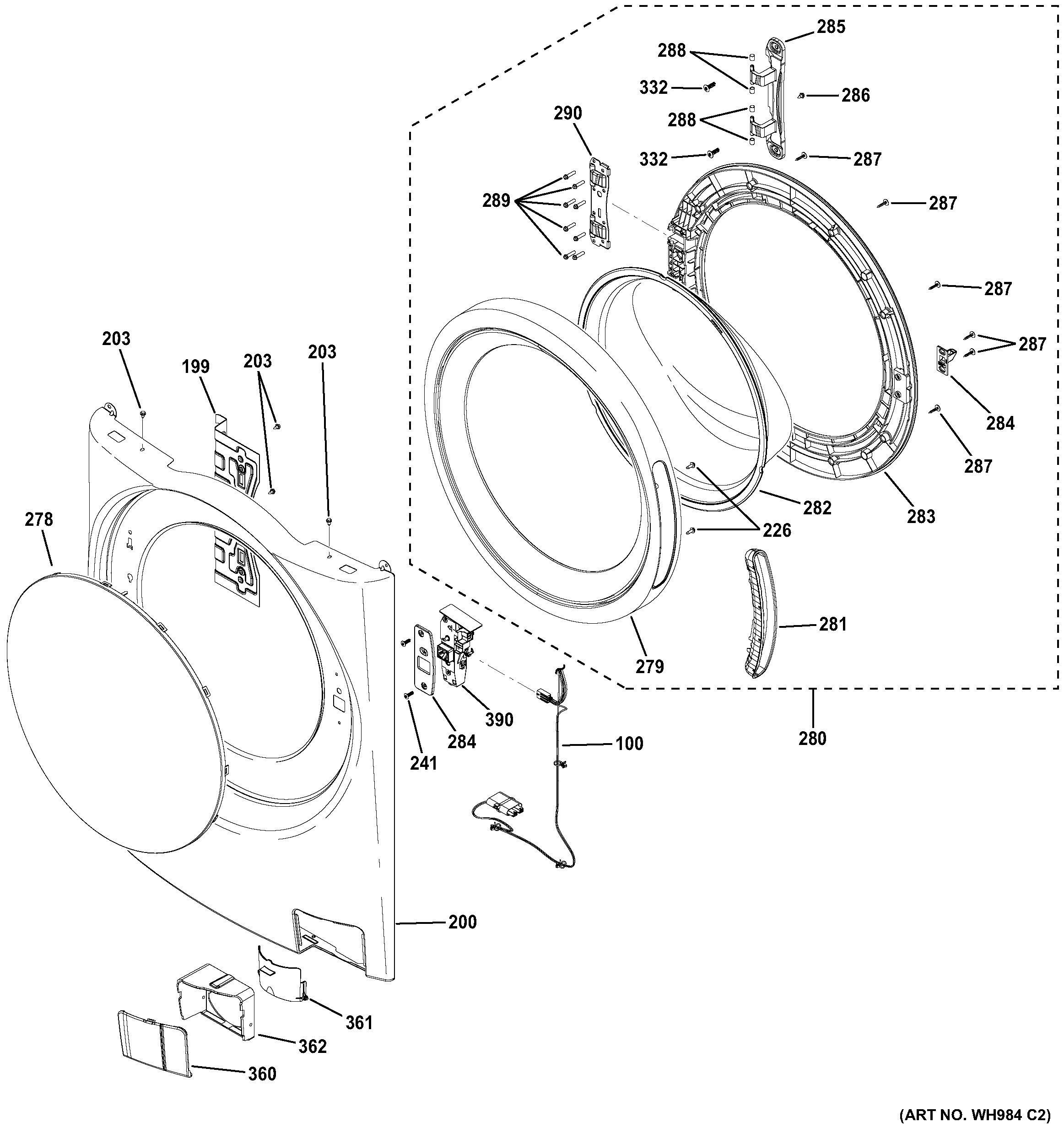

GFWS2505F0RR FRONT PANEL & DOOR

GFWS2505F0RR FRONT PANEL & DOOR

Written by

in

GFWS2505F0RR FRONT PANEL & DOOR

Products

PositionProduct
100WH19X10131 GE Main Harness
199WH10X10020 GE Stiffener Housing
200PANEL FRONT ASM (RD)
203WH02X10396 GE Screw 10-16 B HXW 3/8 S
278WH44X21159 GE Door Cover Protector
279WH46X10284 GE Door Cover
280DOOR ASM MIDLINE
282WH46X25561 GE Glass Door
283WH46X10287 GE Door Frame
284WH01X10731 GE Door Striker
285WH01X10723 GE Hinge
288WH01X10722 GE Hinge Bushing
290WH01X10724 GE Hinge Plate
332WH02X10139 GE Screw 10-32 B TRT-25 5/8
360WH44X10331 GE Pump Housing Cover
361WH01X10754 GE Laundry Cleanout Funnel
362WH01X10753 GE Pump Housing Enclosure
390WH01X23494 GE Washer Door Lock Module
