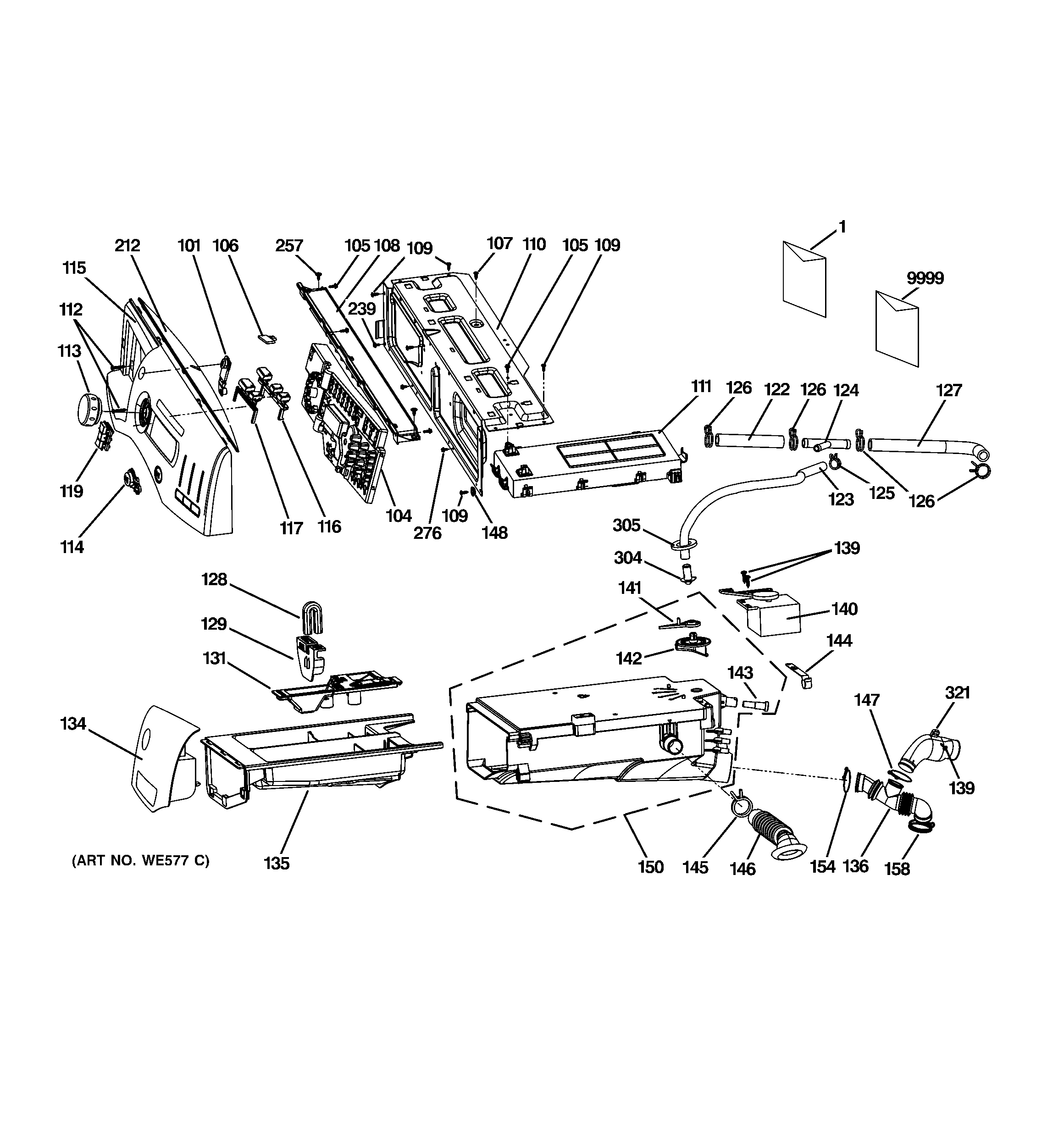

GFWS3505L0MV CONTROLS & DISPENSER

GFWS3505L0MV CONTROLS & DISPENSER

Written by

in

GFWS3505L0MV CONTROLS & DISPENSER

Products

PositionProduct
1GEN 49-90390-1
1GEN 31-30623
1GEN 49-90390
101GEN WH01X10565
104GEN WH12X10485
105WH02X10181 GE Screw ST3.5 x 11
106GEN WH01X10436
107WH02X10183 GE Screw ST4 13
108GEN WH16X10138
109WH02X10184 GE Screw 4.2 x 13
110GEN WH46X10240
111GEN WH12X10484
112WH02X10185 GE Screw ST4 25
113GEN WH11X10059
114GEN WH01X10570
115GEN WH42X10861
115GEN WH42X10859
115GEN WH42X10860
115GEN WH42X10863
115GEN WH42X10862
116GEN WH01X10557
117GEN WH01X10579
119GEN WH01X10564
122GEN WH41X10108
123GEN WH41X10109
124GEN WH41X10110
125GEN WH01X10243
126WH01X10244 GE Pipe Clamp 3-Way
127GEN WH41X10111
128WH41X10179 GE Siphon Pipe
129WH41X10264 GE Liquid Detergent Insert
131WH41X10181 GE Bleach Softener Cover
134GEN WH41X10254
134GEN WH41X10256
134GEN WH41X10253
134GEN WH41X10255
134GEN WH41X10252
135WH41X10185 GE Drawer Dispenser Assembly
136WH41X10257 GE Water Inlet Pipe
139GEN WH02X10186
140WH43X10059 GE Washer Dispenser Actuator
141WH01X10247 GE Diverter Indicator
142WH01X10376 GE Washer Lever Plate
143WH41X10121 GE Washer Dispenser Inlet
144WH01X10249 GE Dispenser Clamp
145GEN WH01X10250
146GEN WH41X10122
147WH02X10341 GE Washer Water Inlet Hose
148GEN WH01X10555
150GEN WH41X10204
154GEN WH01X10377
158WH01X10379 GE Washer Water Inlet Hose
212GEN WH01X10574
212GEN WH01X10573
212GEN WH01X10572
212GEN WH01X10571
212GEN WH01X10558
239WH02X10197 GE Screw St4.4 9.5
257WH02X10201 GE Screw ST4.2 13
276GEN WH02X10203
304GEN WH08X10021
305GEN WH02X10206
321WH41X10249 GE Vent Hose
9999WE25X10028 GE Washer Stacking Kit
