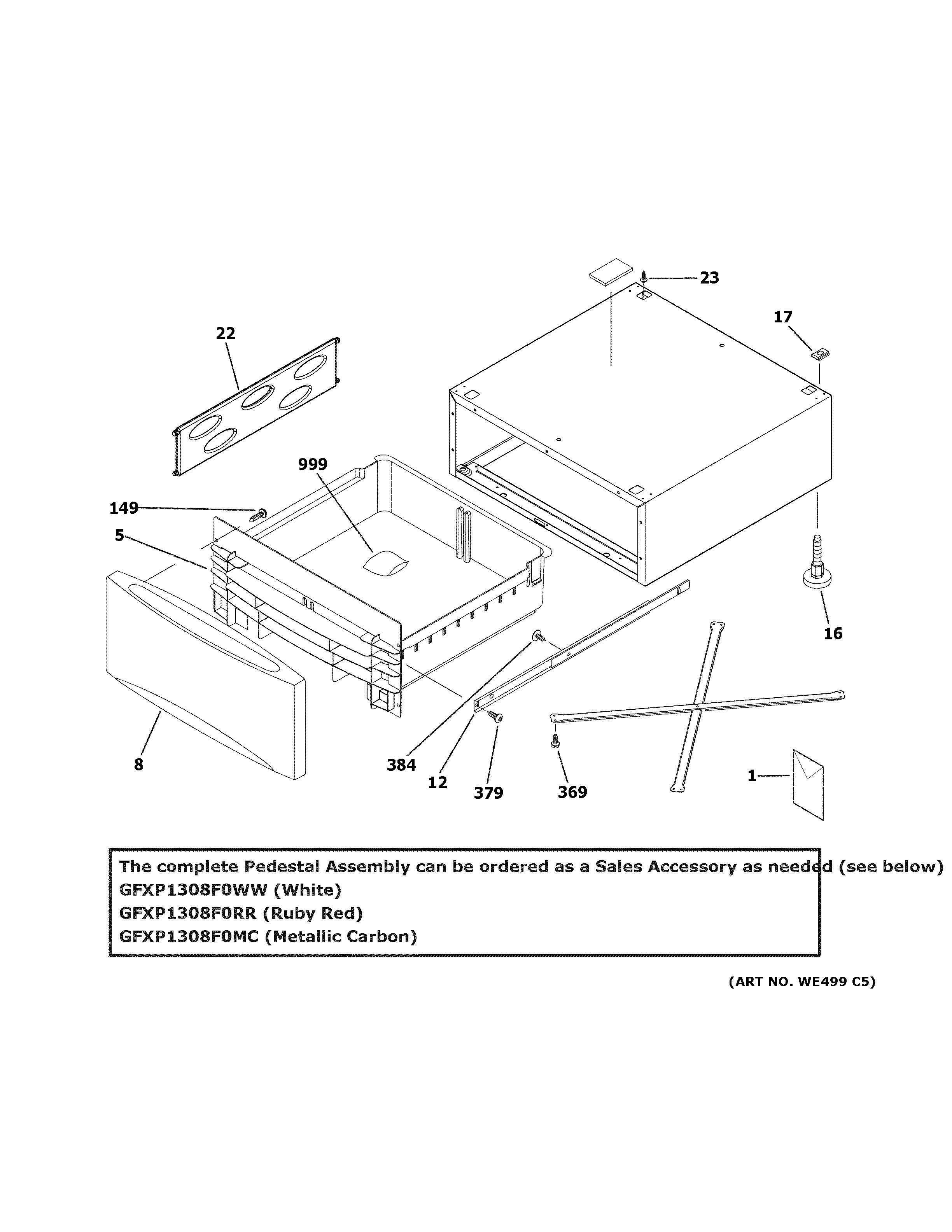

GFXP1308F0MC PEDESTAL

Products

Position	Product
1	PM INSTALL INSTRUCTIONS
5	WH44X10188 GE Drawer Pedestal
8	PANEL FRONT PEDESTAL
12	WH16X10099 GE Washer Drawer Slide Rail
16	WH01X10585 GE Rubber Molded Foot Bolt
17	WH08X10061 GE Rubber Pad Assembly for HA
22	WH16X10120 GE Pedestal Divider
23	WH02X10232 GE Screw ST5.5
149	WR01X10196 GE Refrigerator Screw 8-18 HID02
369	WH2X1217 GE Screw Assembly
379	SCREW 8-15 A 3/4 SP HXW
384	WH01X10423 GE Screw 6-20 B TRT 3/8 S
999	PK HARDWARE BAG ASM
