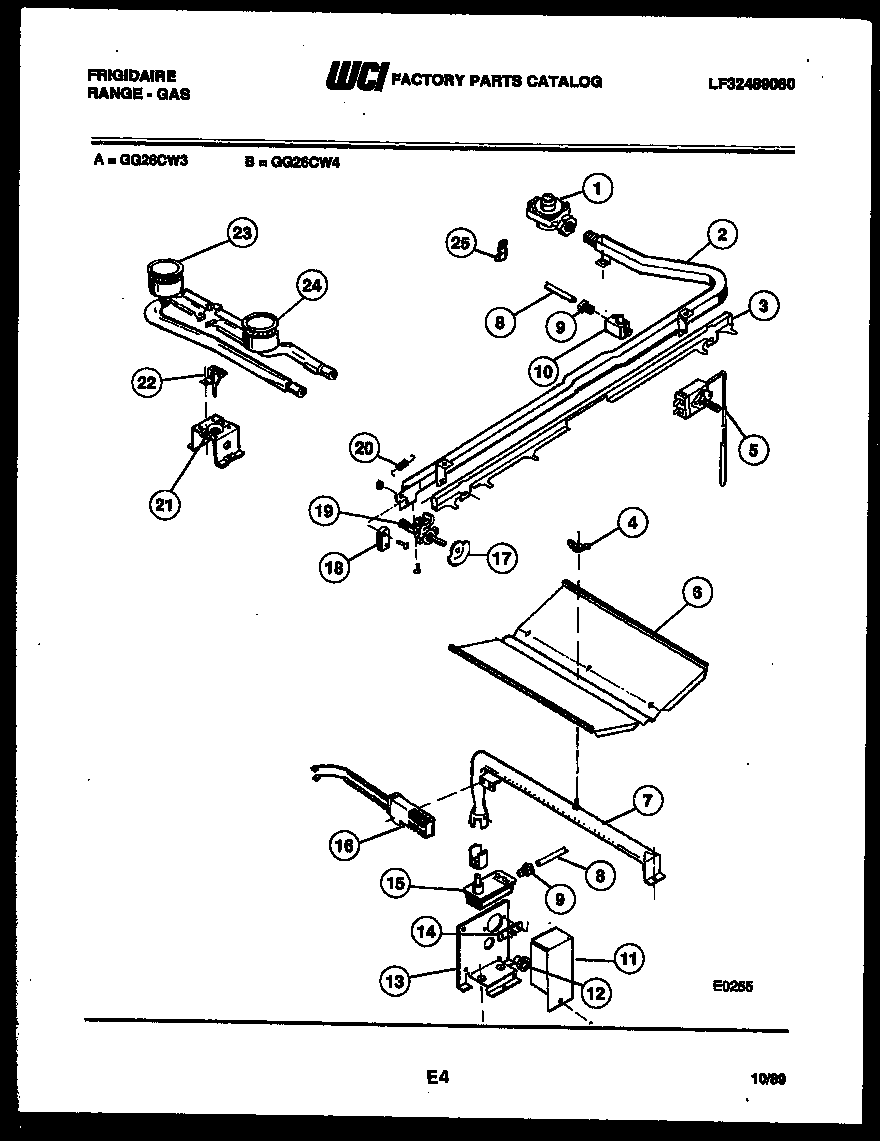

GG26CW3 07 – BURNER, MANIFOLD AND GAS CONTROL

GG26CW3 07 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GG26CW3 07 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 08013905
3WCI 08014020
4NUT – WING
5THERMOSTAT
6WCI 08007980
7WCI 08009418
8TUBING-OVEN SPLY 3/8
9WCI 08008363
10WCI 08008006
11WCI 08007986
12WCI 08008051
13WCI 08007987
14WCI 08007985
15WCI 08009419
165303935066 Frigidaire Oven Flat Igniter 17" Leads
17WCI 08008002
18WCI 08013925
19VALVE – TOP BURNER (4)
20WCI 08013921
21SUPPORT – TOP BURNER
22IGNITER 36“
23WCI 08013853
24WCI 08013852
25WCI 08013856
