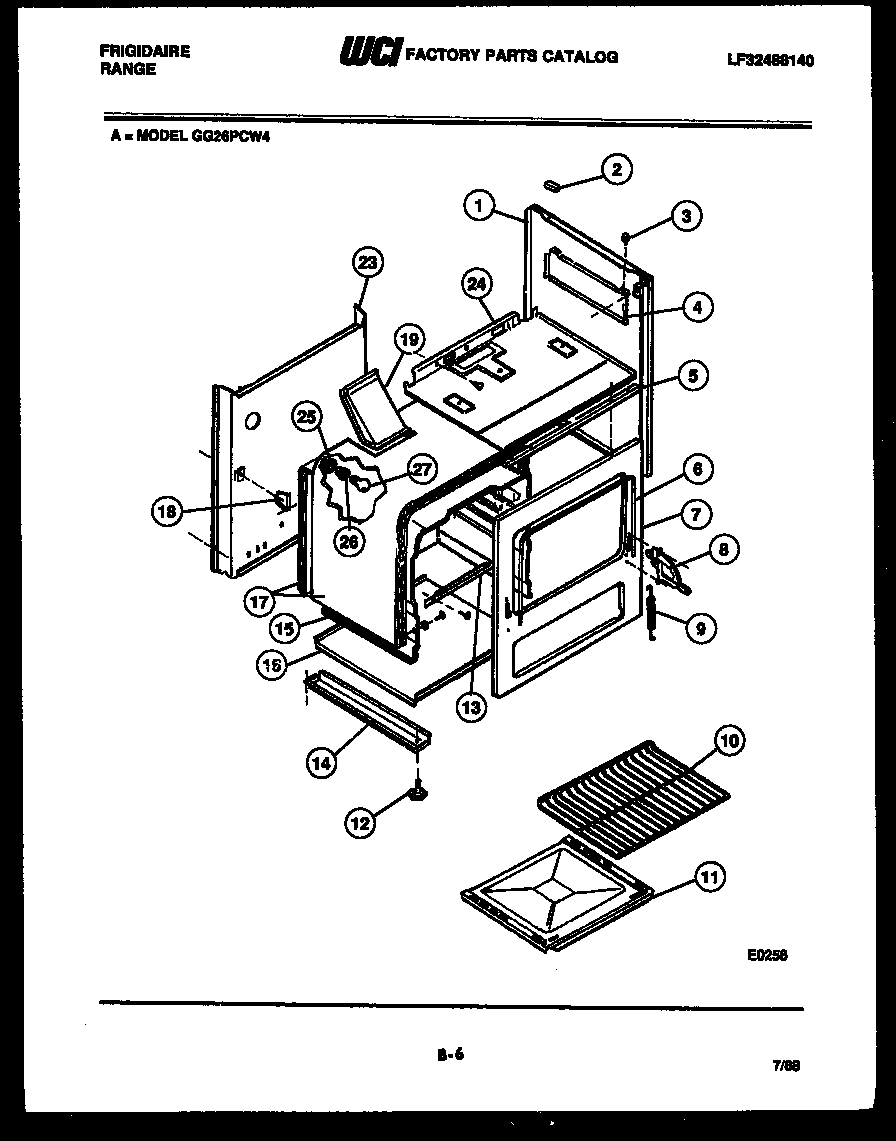

GG26PCW4 06 – BODY PARTS

Products

Position	Product
1	BODYSIDE (WHITE) LH & RH
2	WCI 08068052
3	WCI 08008012
4A	WCI 08011552
4	SHIELD – HEAT RH
5	WCI 08014024
6	SEAL – DOOR
7	WCI 3017601
8A	318348801 Frigidaire Oven Left Side Door Hinge
8	HINGE – DOOR RH
9	WCI 08011485
10	WCI 3016128
11	OVEN BOTTOM
12	SCREW – LEVELING (4)
13	WCI 08008036
14	BASE-RAIL (2)
15C	WCI 3018830
15B	OVEN LINER TOP
15A	OVEN LINER-SIDE LH
15	OVEN LINER-SIDE RH
16	WCI 08013989
17	WCI 3017171
17A	WCI 3017172
18	SUPPORT – REAR (2)
19	WCI 3017173
23	COVER – SPARK MODULE
24	WCI 3017450
25	CUP – OVEN LIGHT
26	316116400 Frigidaire Oven Light Socket
27	316538904 Frigidaire Oven Lamp Light
