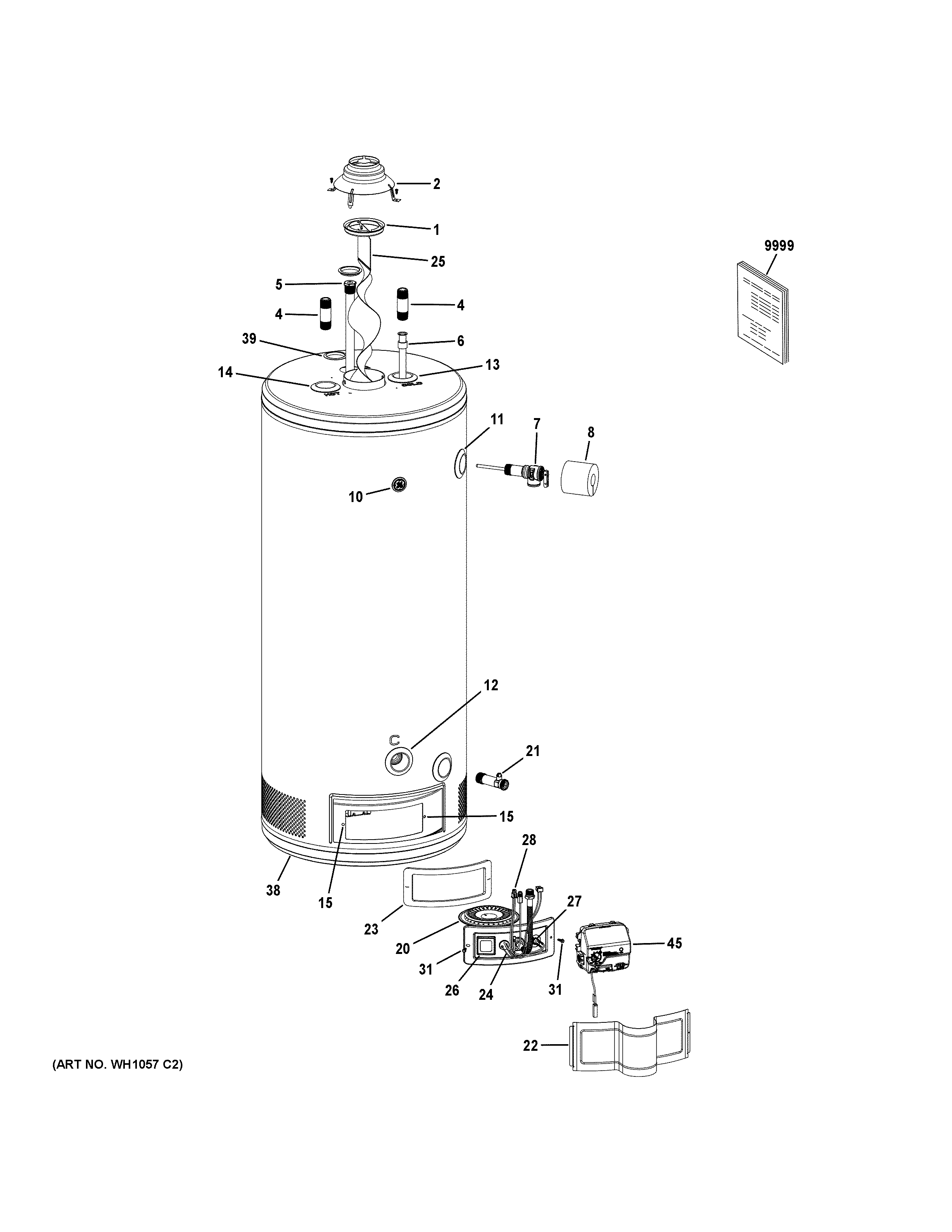

GG30S08BXR01 WATER HEATER ASSEMBLY

Products

PositionProduct
1FLUE COLLAR
2VENT HOOD
4INLET/OUTLET PIPE
5ROD ANODE
6DIP TUBE (18"L)
7T-P VALVE
8T-P VALVE INSULATION
10WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
11FOAM DAM
12GAS VALVE FOAM DAM
13INLET FOAM DAM (BLUE)
14OUTLET FOAM DAM (RED)
15J-CLIP
20BURNER ASM (16.5 – 2.70 – ATM – NG)
21VALVE DRAIN BRASS
22WS02X22761 GE Outer Door
23BURNER DOOR GASKET
24WS52X23199 GE Pilot Assembly – Natural Gas Short
25BAFFLE
26SIGHT GLASS
27WS21X23195 GE Door Thermistor
28HARNESS THERMISTOR
31SCR 8-18 AB UIHWH 3/4 SEMS SMS
38COVER BOTTOM
39ANODE FILL PLUG
45WS52X23161 GE Gas Control Valve (ATM – Natural Gas)
9999PM OWNERS AND INSTALL
