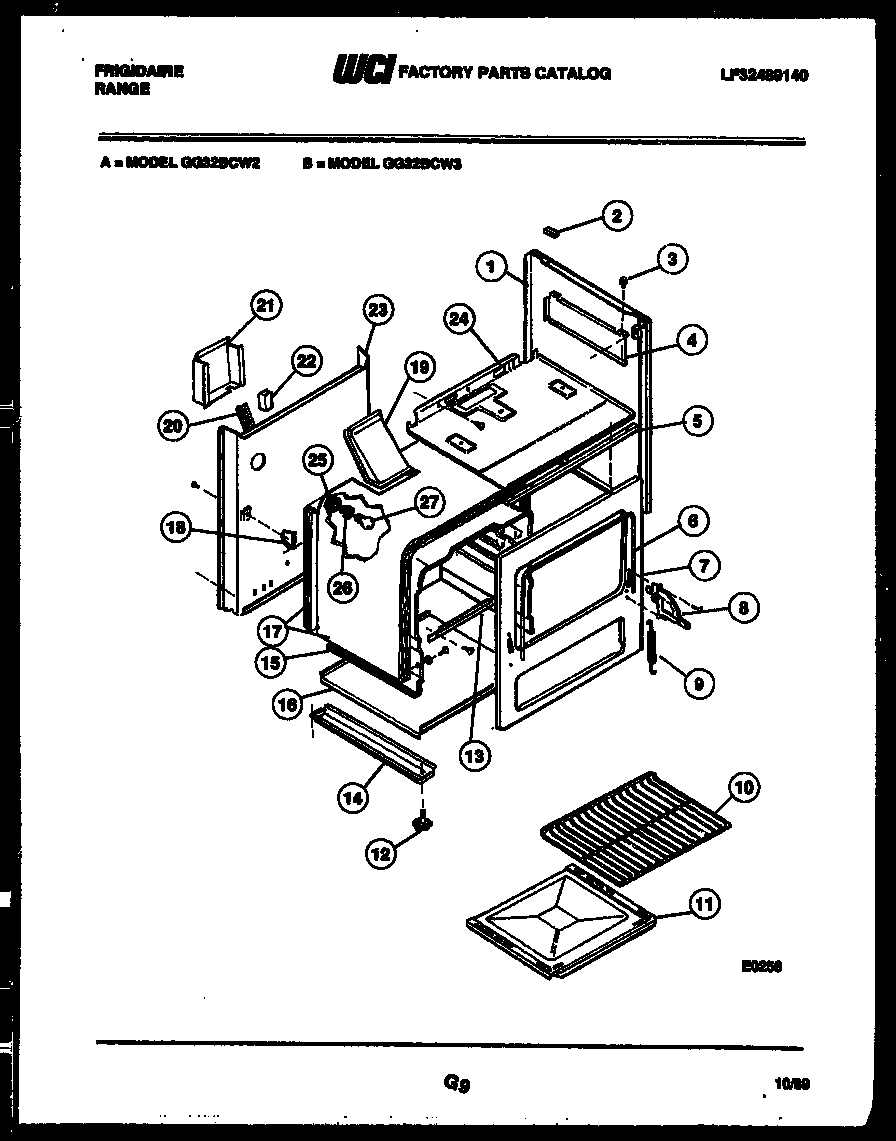

GG32BCW2 06 – BODY PARTS

GG32BCW2 06 – BODY PARTS

Written by

in

GG32BCW2 06 – BODY PARTS

Products

PositionProduct
1PANEL-BODYSIDE (WHITE) (2)
2GROMMET MAIN TOP
3GROMMET
4WCI 3131053
4AWCI 3131054
5SUPPORT CONTROL PNL
6WCI 08008022
7WCI 3017790
8A318348801 Frigidaire Oven Left Side Door Hinge
8WCI 3204670
9SPRING – OVEN DOOR
10RACK-OVEN
11WCI 3018282
12WCI 3051080
13SUPPORT-OVEN BOTTOM
14WCI 0806047
15AOVEN LINER-SIDE LH
15OVEN LINER-SIDE RH
15BWCI 3018347
15CWCI 3018286
16WCI 3011645
17WCI 3017171
17AWCI 3017172
18SUPPORT-REAR OVN (2)
19WCI 3017173
20CHANNEL – MAIN WIRE
21WCI 08013953
225303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
23WCI 3013340
24BURNER-BOX BOTTOM
25WCI 3051511
26316116400 Frigidaire Oven Light Socket
27316538904 Frigidaire Oven Lamp Light
