GG32CL0 29 – BURNERS, IGNITORS, CONTROLS – Aparts

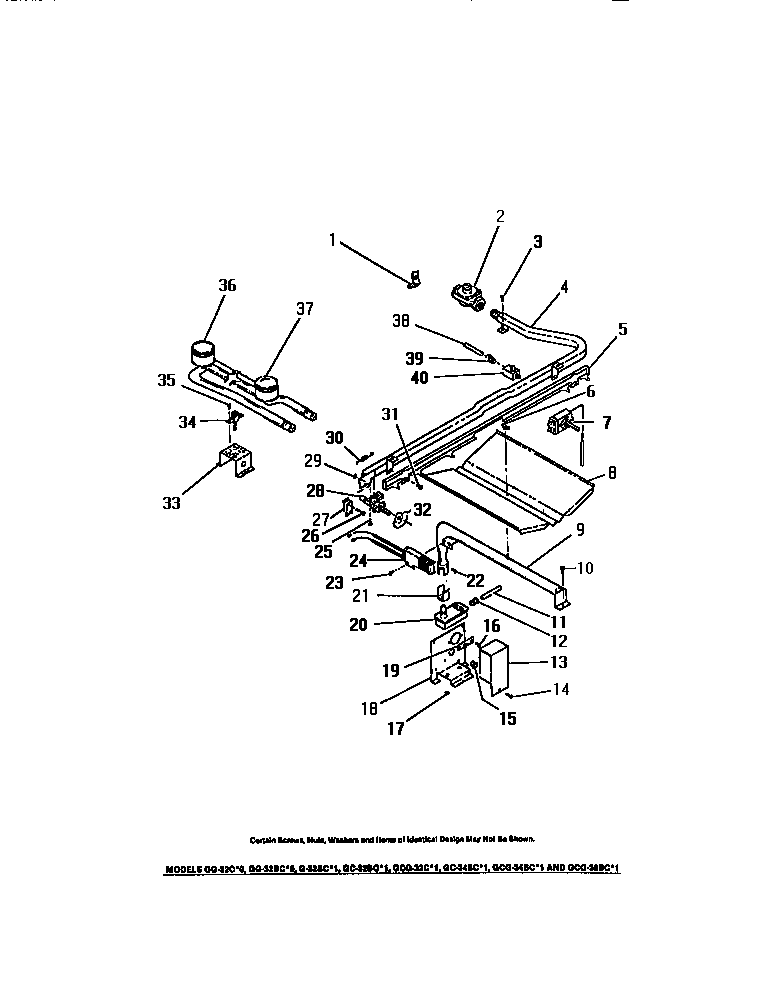

GG32CL0 29 – BURNERS, IGNITORS, CONTROLS

Products

Position	Product
1	CLIP, CAPILLARY TUBE
2	WCI 8007974
4	WCI 8013906
5	WCI 8014021
6	WCI 8007979
7	WCI 8013926
8	WCI 8007980
9	WCI 8009418
13	WCI 8007986
15	BUSHING
17	WCI 8007960
18	WCI 8007987
19	WCI 8007985
20	VALVE, OVEN
21	WCI 8008010
23	WCI 8008011
24	IGNITOR, OVEN
25	SCREW (2)
26	WCI 8008000
27	SWITCH-MICRO
28	WCI 8013940
29	WCI 8007991
30	WCI 8013921
31	WCI 8012509
32	WCI 8008002
33	WCI 8014002
34	IGNITOR-TOP, R.H.
34A	WCI 8013884
35	WCI 8007905
36	WCI 8013853
37	WCI 8013852
38	3/8`` TUBE
39	WCI 8008363
40	SHUT OFF VALVE
