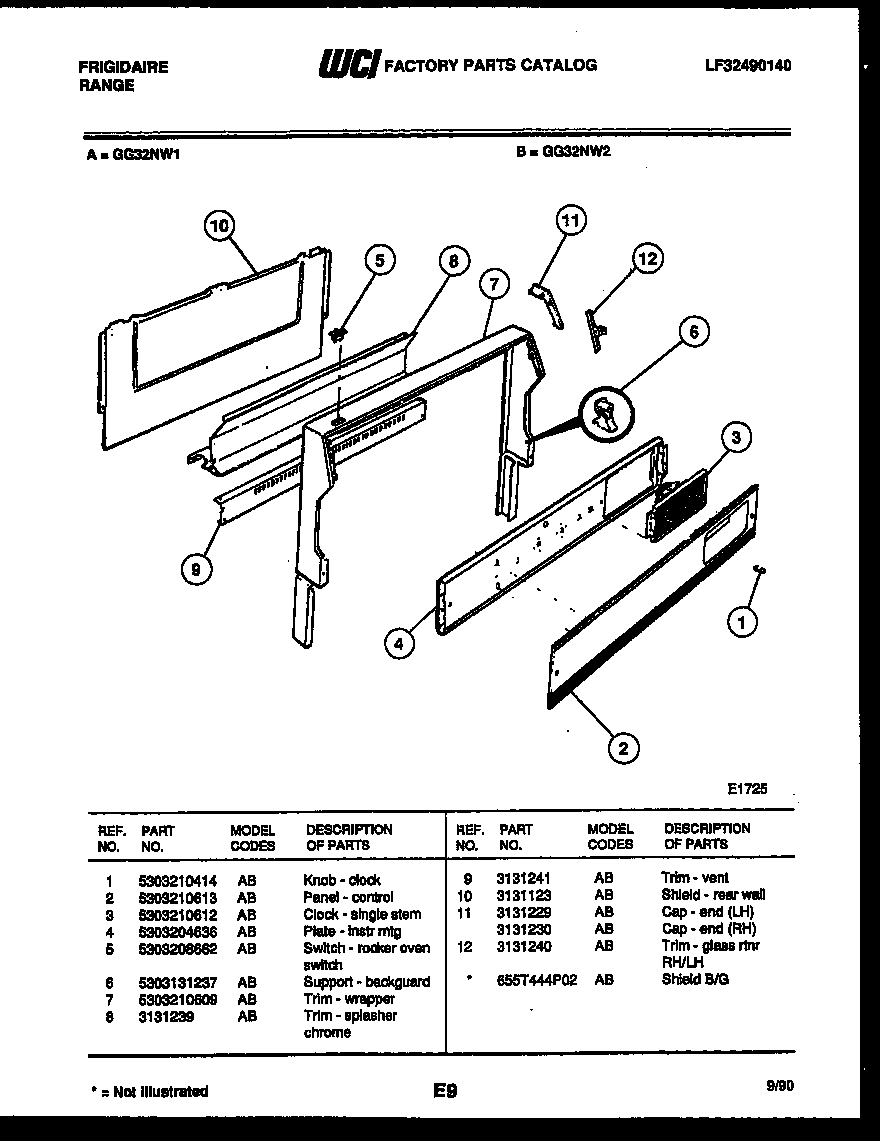

GG32NL1 02 – BACKGUARD

Products

PositionProduct
*35956SHIELD-BACKGUARD (NON-ILLUSTRATED)
1KNOB – CLOCK (3) – GREY
2PANEL-CONTROL GLASS
3CLOCK/TIMER, ANALOG 1 STEM
4PLATE – INST MOUNTING
55308015487 Frigidaire Switch-Oven Light
6SUPPORT-BACKGUARD,(2)
7WCI 5303210609
8WCI 3131239
9WCI 3131241
10SHIELD-BACKGUARD,REAR WALL
11ASHIELD-REAR WALL
11WCI 3131229
12TRIM-GLASS RTNR. LH & RH
