GG32PCL0 28 – BURNERS, IGNITORS, CONTROLS – Aparts

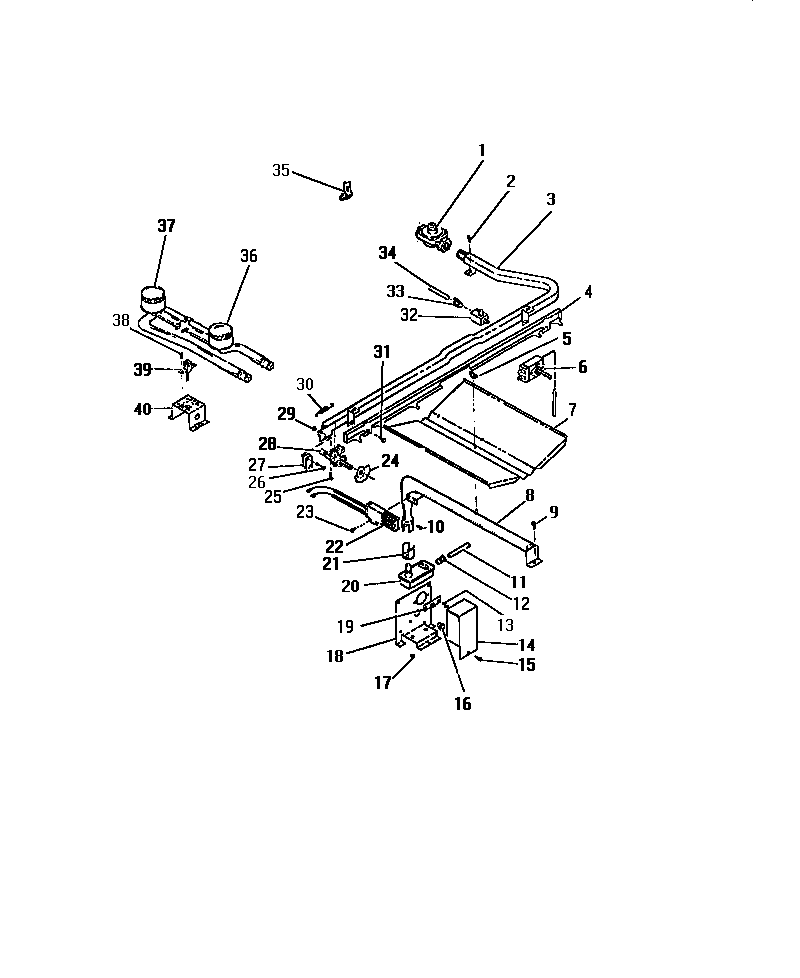

GG32PCL0 28 – BURNERS, IGNITORS, CONTROLS

Products

Position	Product
1	WCI 8007974
3	WCI 8013905
4	WCI 8014020
5	WCI 8007979
6	WCI 8013926
7	WCI 8007980
8	WCI 8009418
14	WCI 8007986
16	BUSHING
17	WCI 8007960
18	WCI 8007987
19	WCI 8007985
20	VALVE, OVEN
21	WCI 8008010
22	IGNITOR, OVEN
23	WCI 8008011
24	WCI 8008002
25	SCREW (2)
26	WCI 8008000
27	SWITCH-MICRO
28	WCI 8013940
29	WCI 8007991
30	WCI 8013921
31	WCI 8012509
32	SHUT OFF VALVE
33	WCI 8008363
34	3/8`` TUBE
35	CLIP, CAPILLARY TUBE
36	WCI 8013852
37	WCI 8013853
38	WCI 8007905
39	IGNITOR-TOP, R.H.
39	WCI 8014087
40	WCI 8014002
