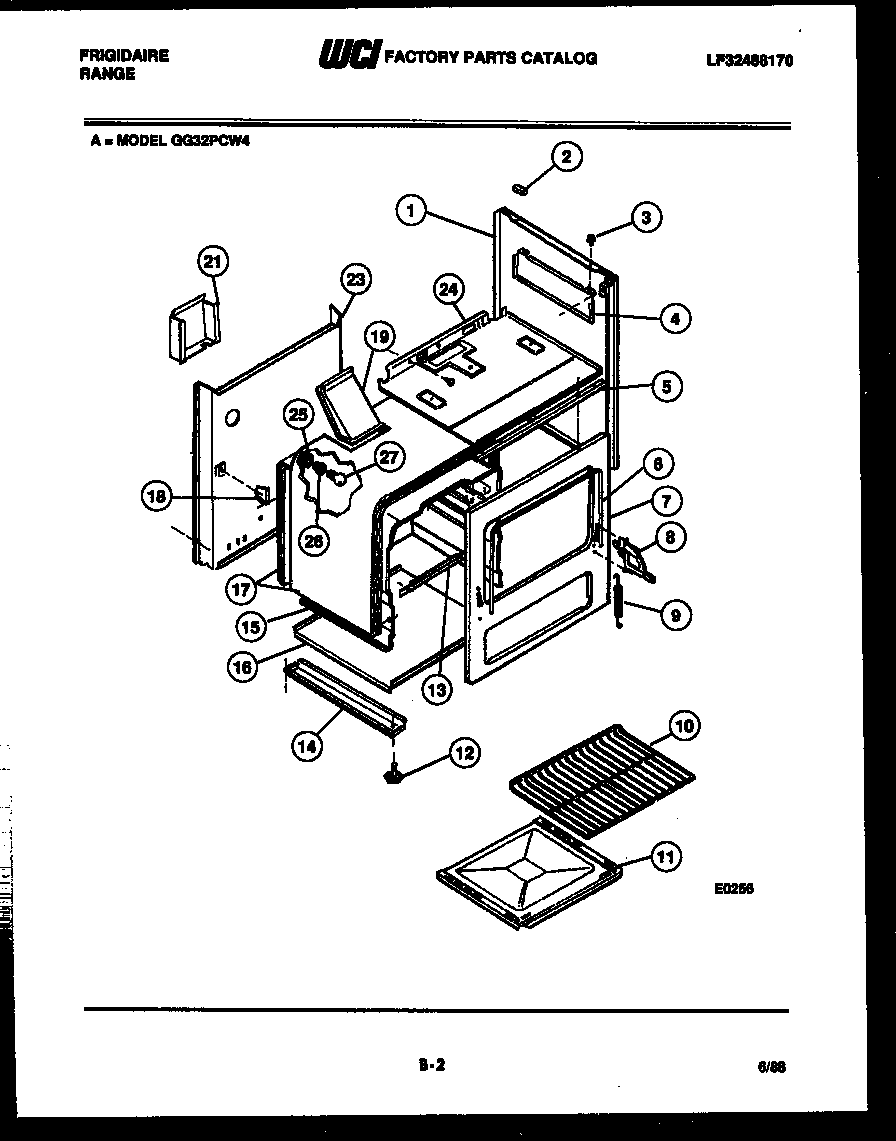

GG32PCW4 06 – BODY PARTS

Products

Position	Product
1	BODYSIDE (WHITE) LH & RH
2	WCI 08068052
3	WCI 08008012
4	SHIELD – HEAT RH
4A	WCI 08011552
5	WCI 08014027
6	WCI 08008022
7	WCI 3017790
8	HINGE – DOOR RH
8A	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING – OVEN DOOR
10	WCI 08068027
11	WCI 3018282
12	SCREW – LEVELING (4)
13	WCI 08008036
14	BASE-RAIL (2)
15C	WCI 3018286
15A	OVEN LINER-SIDE LH
15	OVEN LINER-SIDE RH
15B	WCI 3018347
16	BOTTOM – OVEN
17A	WCI 3017172
17	WCI 3017171
18	SUPPORT – REAR (2)
19	WCI 3017173
21	WCI 08008357
23	WCI 08012600
24	WCI 3017174
25	CUP – OVEN LIGHT
26	316116400 Frigidaire Oven Light Socket
27	316538904 Frigidaire Oven Lamp Light
