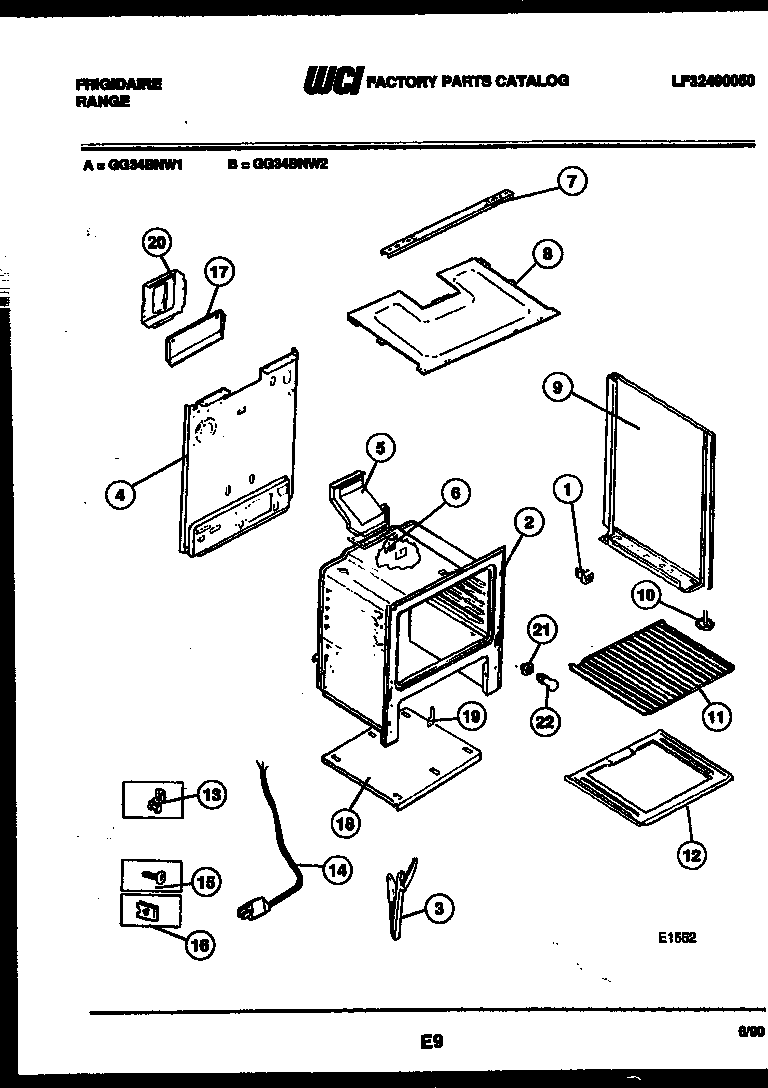

GG34BNW1 07 – BODY PARTS

Products

Position	Product
*32530	3131903 Frigidaire Door/Drawer Bumper
*32530	WCI 08010570
*32530	WCI 3131252
*32530	SHIELD-BACKGUARD,REAR WALL
1	SPACER-BODYSIDE, (8)
3	CHAN-DOOR HINGE (2)
4	WCI 3203082
5	WCI 3131904
6	316542102 Frigidaire Flue Gasket
7	CHANNEL-BURNER BOX
8	BURNER BOX BOTTOM
9	PNL-BODYSIDE RH-WHITE
9A	PNL-BODYSIDE LH-WHITE
10	SCREW-LEVELING
11	316067902 Frigidaire Oven Rack
12B	INSUL – OVEN BACK (NON-ILLUSTRATED)
12A	INSULATION, OVEN WRAPPER
12	BTTM-OVEN
13	5303284616 Frigidaire Range Bulb Clip Thermostat
14	5304515659 Frigidaire Oven Power Cord
15	316282700 Frigidaire Oven Screw
16	3203010 Frigidaire Clip
17	WCI 3131348
18	WCI 3131180
19A	316064600 Frigidaire Oven Support
19	WCI 3131570
20B	COVER-OVEN FRONT
20C	COVER-POWER CORD, (NON-ILLUSTRATED)
20A	SHIELD-TOP (NON-ILLUSTRATED)
20E	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
20F	ANTI-TIP KIT (NOT ILLUSTRATED)
20	WCI 3131660
20D	COVER-IGNITOR
21	316116400 Frigidaire Oven Light Socket
22	316538904 Frigidaire Oven Lamp Light
