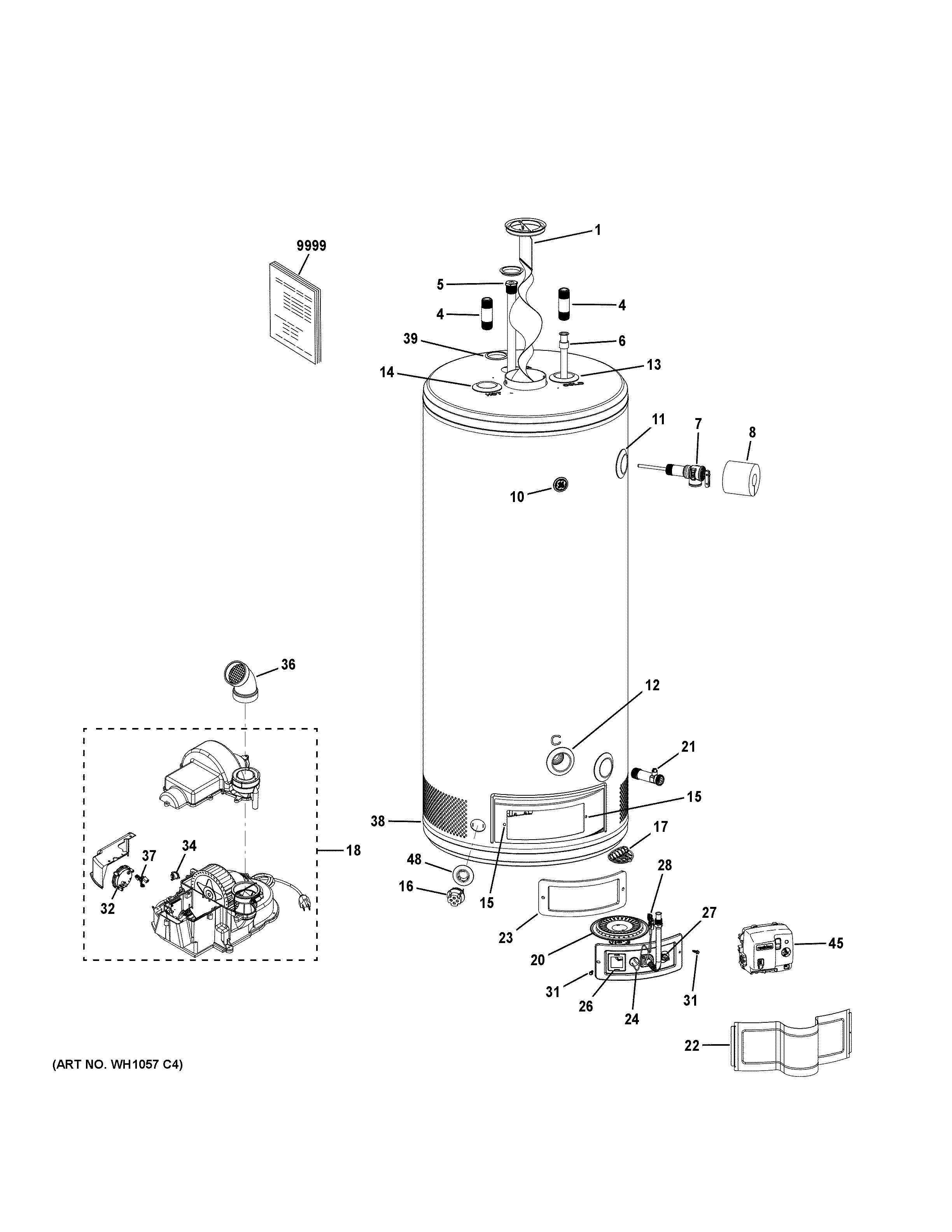

GG40T08AYV01 WATER HEATER ASSEMBLY

Products

PositionProduct
1BAFFLE COLLAR ASM 50T PV
4INLET/OUTLET PIPE
5ROD ANODE – MAG 46.75"
6DIP TUBE
7T-P VALVE
8T-P VALVE INSULATION
10WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
11FOAM DAM
12GAS VALVE FOAM DAM
13INLET FOAM DAM (BLUE)
14OUTLET FOAM DAM (RED)
15NUT-U
16FV SENSOR
17SPACER BOTTOM PV
18BLOWER ASM – PV 50T LN
20BURNER ASM 16.5 PV NG
21VALVE DRAIN BRASS
22WS02X22761 GE Outer Door
23BURNER DOOR GASKET
24PILOT ASM – PV/PD NAT (HW)
26SIGHT GLASS ASM
27WS21X23195 GE Door Thermistor
28HARNESS THERMISTOR
31SCR 8-18 AB UIHWH 3/4 SEMS SMS
32PRESSURE SWITCH (MPL -0.40)
34TEMPERATURE SWITCH (TOD 150F)
36ELBOW ASM PVC 2 IN DIA
37HARNESS FUSE-JUMPER
38COVER BOTTOM
39ANODE FILL PLUG
45GAS CONTROL VALVE (PV 120V – NG)
48FV SENSOR DAM
9999PM OWNERS AND INSTALL
