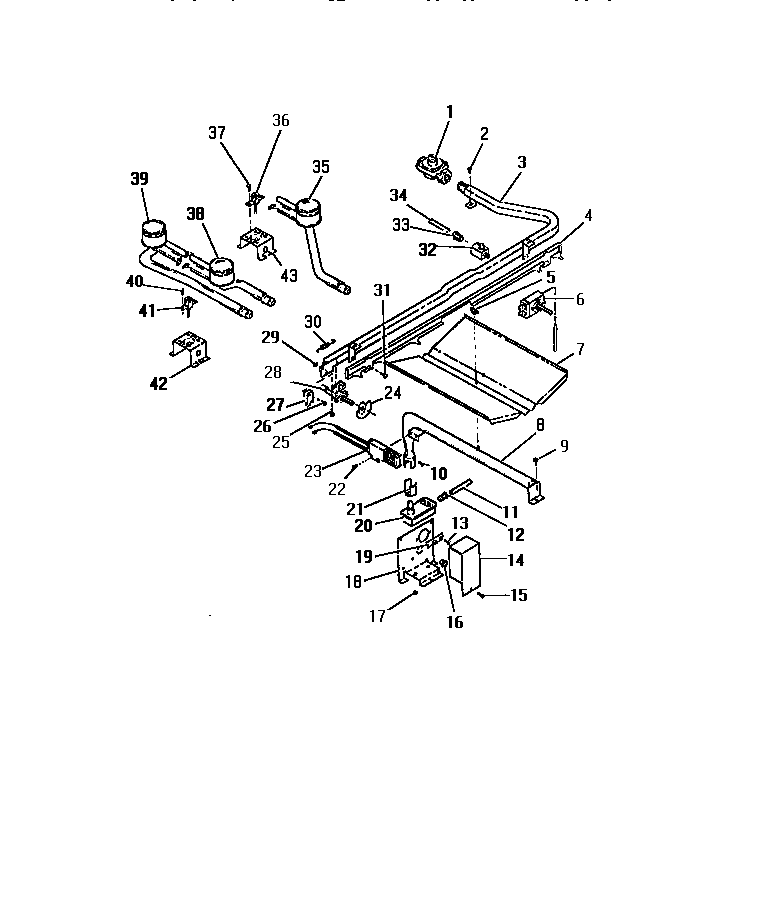

GG46CW0 32 – BURNERS, IGNITORS, CONTROLS

GG46CW0 32 – BURNERS, IGNITORS, CONTROLS

Written by

in

GG46CW0 32 – BURNERS, IGNITORS, CONTROLS

Products

Position	Product
1	WCI 8007974
3	WCI 8013907
4	WCI 8014022
5	WCI 8007979
6	WCI 8013926
7	WCI 8007980
8	WCI 8009418
14	WCI 8007986
16	BUSHING
17	WCI 8007960
18	WCI 8007987
19	WCI 8007985
20	VALVE, OVEN
21	WCI 8008010
22	WCI 8008011
23	IGNITOR, OVEN
24A	CAM, GRIDDLE VALVE (4)
24	WCI 8008002
25	SCREW (2)
26	WCI 8008000
27	SWITCH-MICRO
28A	WCI 8013915
28	WCI 8013940
29	WCI 8007991
30	WCI 8013921
31	WCI 8012509
32	SHUT OFF VALVE
33	WCI 8008363
34	3/8“ TUBE
35	WCI 8013854
36	IGNITOR-TOP, R.H.
38	WCI 8013852
39	WCI 8013853
40	WCI 8007905
41	IGNITOR, TOP BURNER, R.H.
41A	WCI 8013884
42	WCI 8014002
43	WCI 8014026
