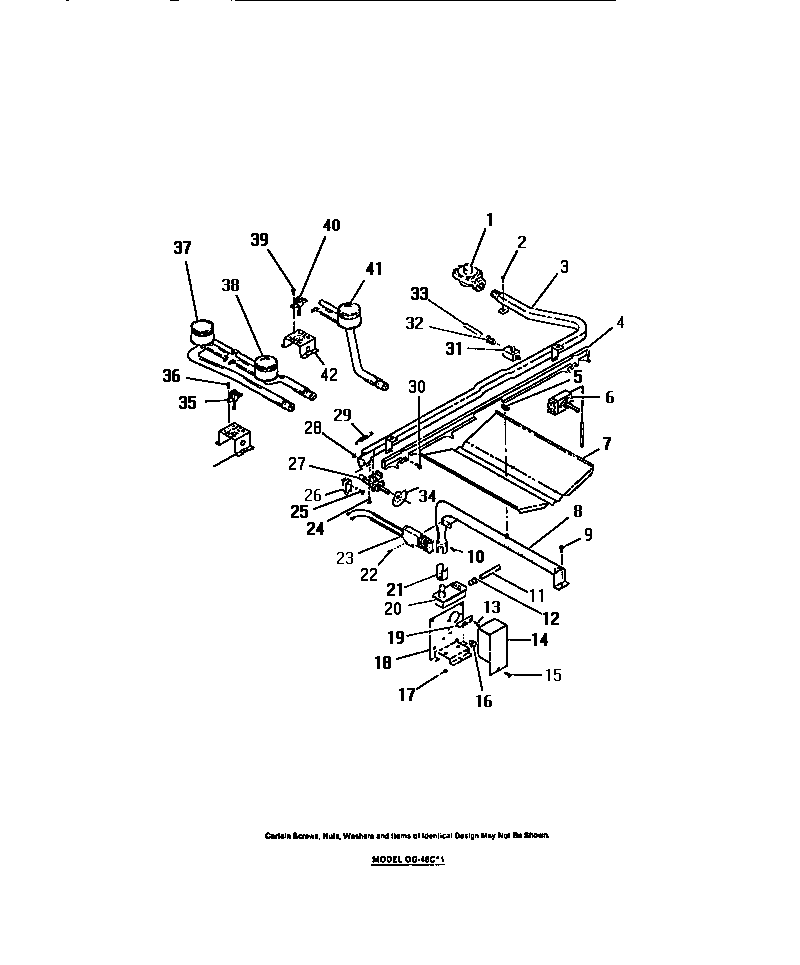

GG46CW1 31 – BURNERS, IGNITORS, CONTROLS

GG46CW1 31 – BURNERS, IGNITORS, CONTROLS

Written by

in

GG46CW1 31 – BURNERS, IGNITORS, CONTROLS

Products

Position	Product
1	WCI 8007974
3	WCI 8013907
4	WCI 8014022
5	WCI 8007979
6	WCI 8013926
7	WCI 8007980
8	WCI 8009418
14	WCI 8007986
16	BUSHING
17	WCI 8007960
18	WCI 8007987
19	WCI 8007985
20	VALVE, OVEN
21	WCI 8008010
22	WCI 8008011
23	IGNITOR, OVEN
24	SCREW (2)
25	WCI 8008000
26	SWITCH-MICRO
27A	WCI 8013915
27	WCI 8013940
28	WCI 8007991
29	WCI 8013921
30	WCI 8012509
31	SHUT OFF VALVE
32	WCI 8008363
33	3/8“ TUBE
34	WCI 8008002
34A	CAM, GRIDDLE VALVE (4)
35A	IGNITOR, TOP BURNER, R.H.
35	WCI 8013884
37	WCI 8013853
38	WCI 8013852
39	WCI 8007905
40	IGNITOR-TOP, R.H.
41	WCI 8013854
42	WCI 8014026
