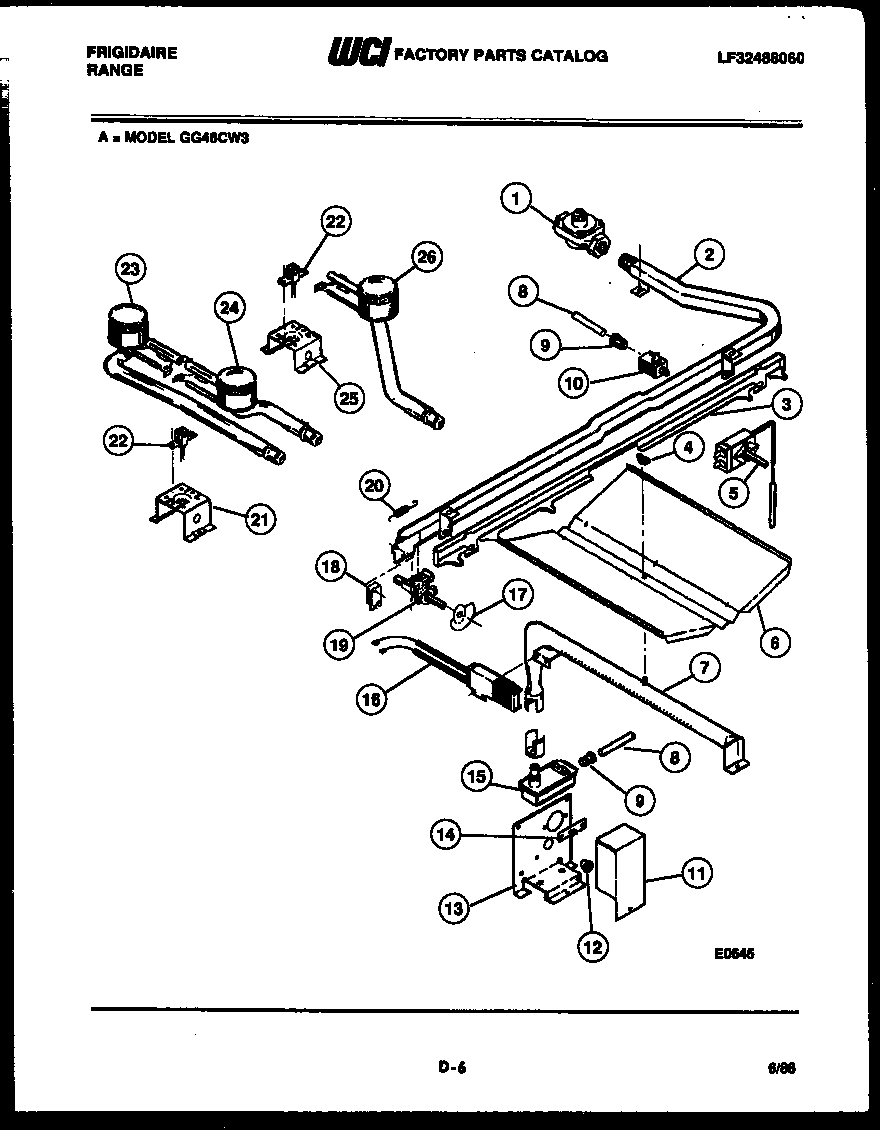

GG46CW3 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*13230	REFLECTOR PLATE (NON-ILLUSTRATED)
1	WCI 8007974
2	WCI 8013907
3	WCI 3018341
4	WCI 8007979
5	WCI 8013926
6	WCI 8007980
7	WCI 8009418
8	TUBING-OVEN SPLY 3/8
9	WCI 8008363
10	SHUT OFF VALVE
11	WCI 8007986
12	BUSHING
13	WCI 8007987
14	WCI 8007985
15	VALVE, OVEN
16	IGNITOR, OVEN
17A	CAM, GRIDDLE VALVE (4)
17	WCI 8008002
18	SWITCH-MICRO
19	WCI 8013940
19A	VALVE GRIDDLE
20	WCI 8013921
21	SUPPORT – TOP BURNER
22	IGNITOR
23	WCI 8013853
24	WCI 8013852
25	SUPPORT – GRID BURNER
26	WCI 8013854
