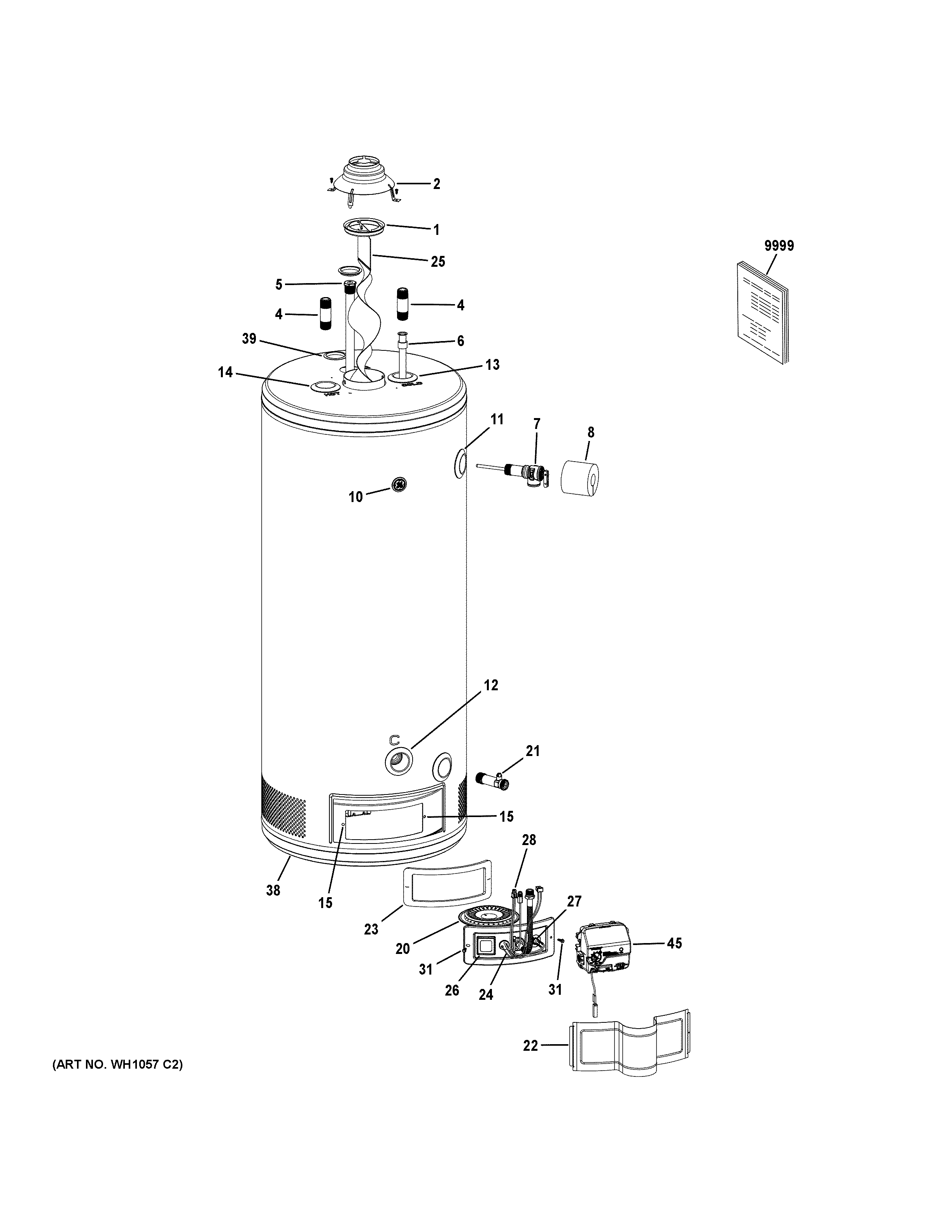

GG50S08BXR01 WATER HEATER ASSEMBLY

Products

Position	Product
1	FLUE COLLAR
2	VENT HOOD
4	INLET/OUTLET PIPE
5	ROD ANODE
6	DIP TUBE (20"L)
7	T-P VALVE
8	T-P VALVE INSULATION
10	WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
11	FOAM DAM
12	GAS VALVE FOAM DAM
13	INLET FOAM DAM (BLUE)
14	OUTLET FOAM DAM (RED)
15	J-CLIP
20	BURNER ASM (21.5 - 32 - ATM - NG)
21	VALVE DRAIN BRASS
22	WS02X22761 GE Outer Door
23	BURNER DOOR GASKET
24	WS52X23201 GE Pilot Assembly Long Natural
25	BAFFLE
26	SIGHT GLASS
27	WS21X23195 GE Door Thermistor
28	HARNESS THERMISTOR
31	SCR 8-18 AB UIHWH 3/4 SEMS SMS
38	COVER BOTTOM
39	ANODE FILL PLUG
45	WS52X23161 GE Gas Control Valve (ATM - Natural Gas)
9999	PM OWNERS AND INSTALL
