GG94BLW1 02 – CONTROL PANEL

GG94BLW1 02 – CONTROL PANEL

Written by

in

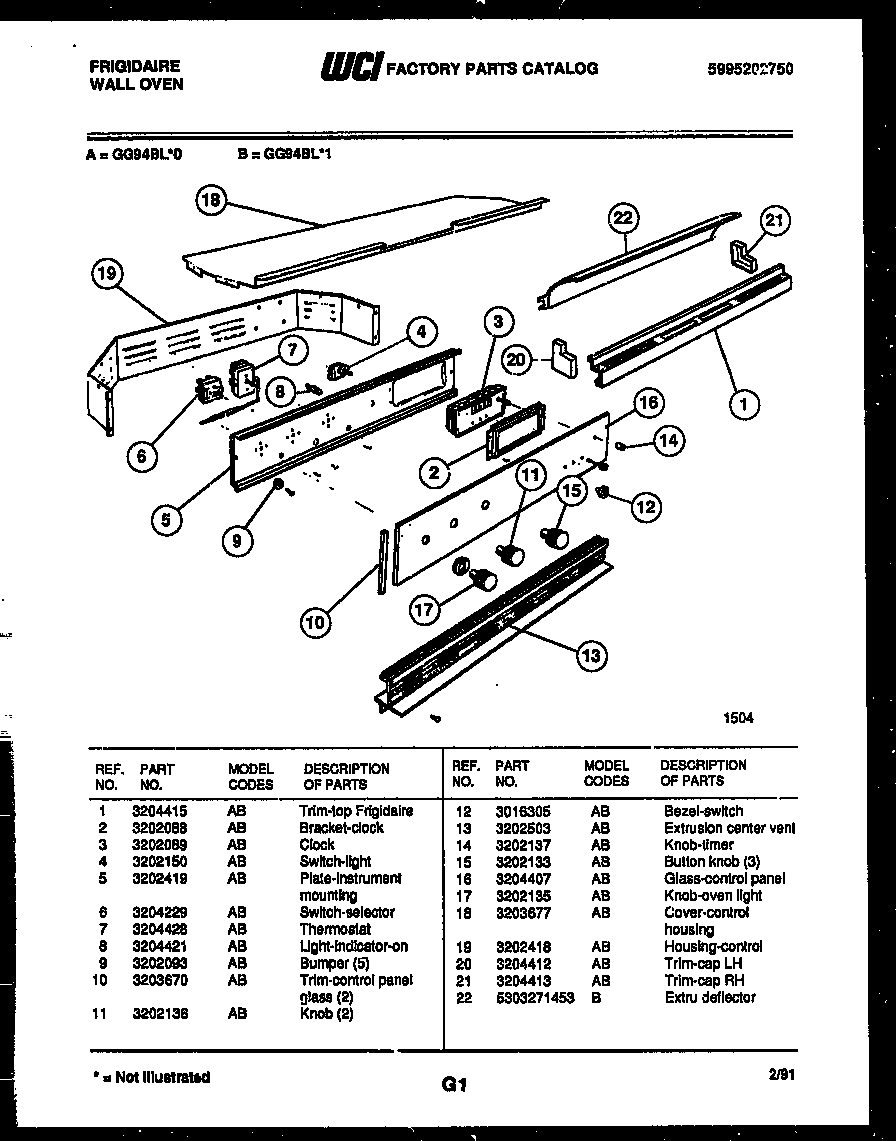

GG94BLW1 02 – CONTROL PANEL

Products

PositionProduct
1WCI 3204415
2WCI 3202088
3WCI 3202089
4WCI 3202150
5WCI 3202419
6WCI 3204220
7WCI 3204428
8WCI 3204421
9WCI 3202093
10TRIM-CONT. PANEL GLASS (2)
11KNOB-SELECTOR & THERMOSTAT
12WCI 3016305
13TRIM-CENTER VENT
14WCI 3202137
15BUTTON-CLOCK (4)
16WCI 3204407
17WCI 3202135
18COVER-CONT. HOUSING
19HOUSING-CONT
20WCI 3204412
21WCI 3204413
22TRIM-CANOPY/SHIELD
