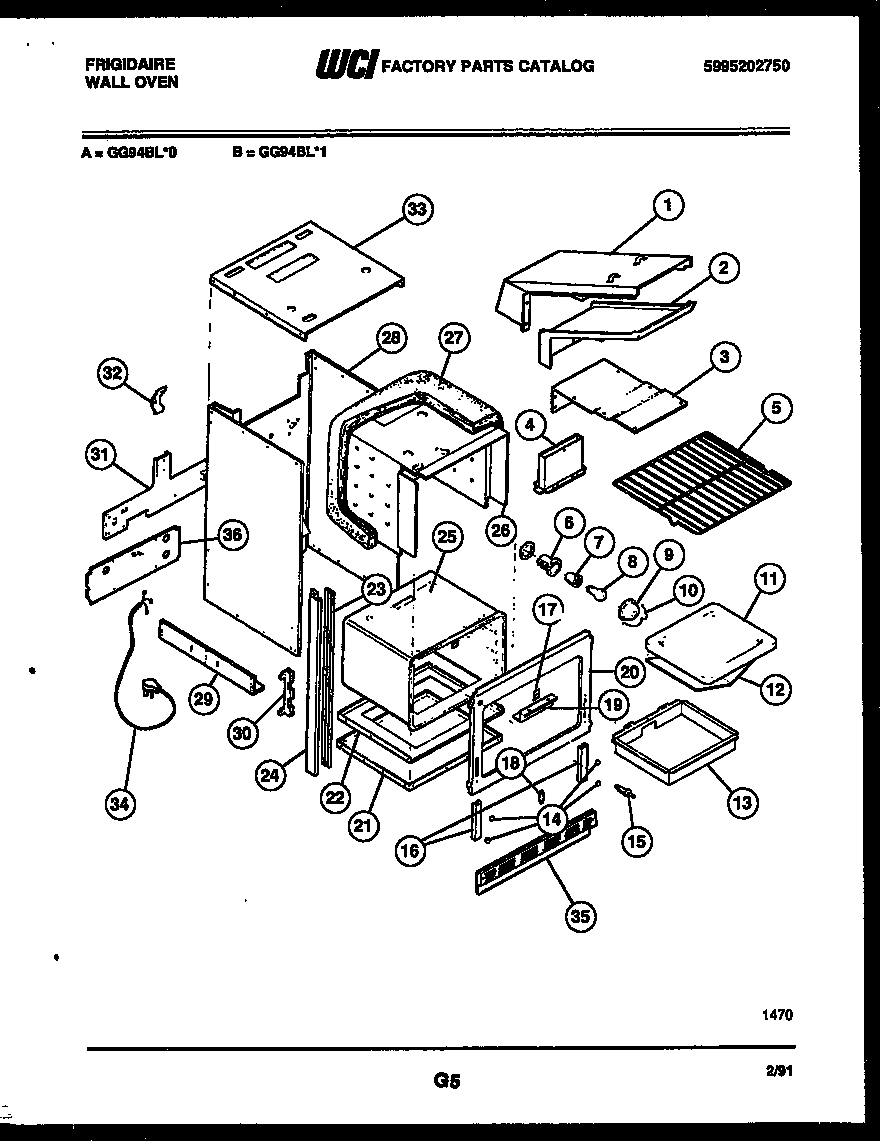

GG94BLW1 06 – BODY PARTS

Products

Position	Product
*48252	WCI 3201632
*48253	WCI 191S018F245
*48252	WCI 5303271455
*48251	WCI 5300009126
*48252	WCI 3203680
1	SHIELD-FLUE COVER
2	WCI 3203725
3	SHIELD – FLUE BOTTOM
4	ADAPTER-FLUE
5	318345216 Frigidaire Oven Rack
7	316116400 Frigidaire Oven Light Socket
8	316538904 Frigidaire Oven Lamp Light
9	5304524341 Frigidaire Lens
10	WIRE, GLASS RETAINER
11	WCI 3203721
12	BAFFLE-OVEN BTTM
13	WCI 3203731
14	WCI 3203663
15	WCI 5301314211
16	WCI 3203688
17	WCI 3202082
18	WCI 3019063
19	SHIELD-VENT
20	WCI 3202463
21	WCI 3202447
22	SHIELD-INSULAT. BASE
23	TRIM-SIDE, INNER, LH
23A	TRIM-SIDE, INNER, RH
24	WCI 3204414
25	WCI 3203727
26	SHIELD-OVEN, TOP & SIDES
27	WCI 3016319
27B	INSUL. ADAPTOR
27C	INSUL. OVEN BTTM.
27D	INSUL. WRAP.
27A	WCI 3206471
29A	SUPPORT-HEIGHT ADJUSTMENT (2)
29	WRAPPER, BACK & SIDES
30	WCI 3201631
31	BRKT. SAFETY VALVE
32	WCI 3016281
33	WCI 3203690
34	WCI 3203699
35	TRIM-BASE
36	COVER-ACCESS
