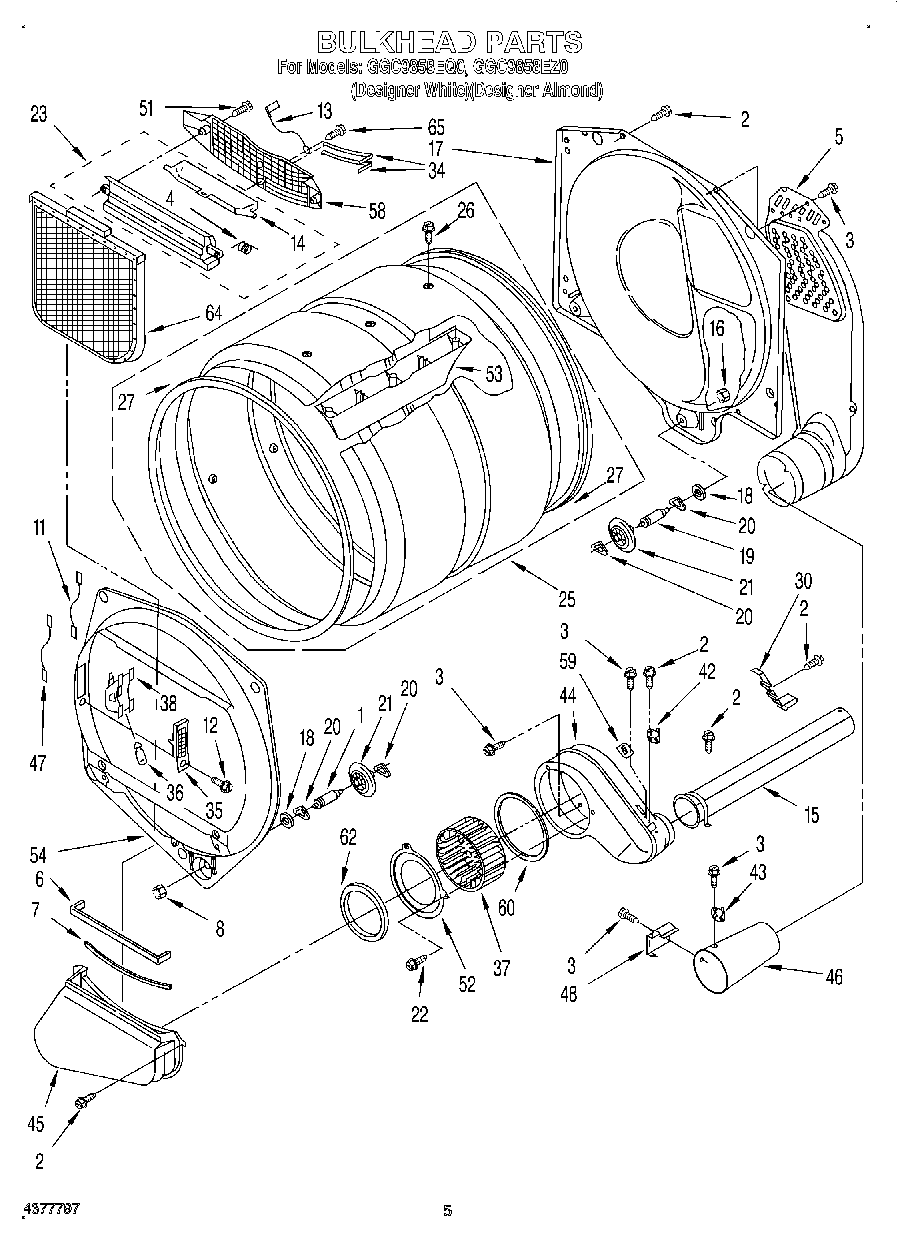

GGC9858EQ0 03 – BULKHEAD

GGC9858EQ0 03 – BULKHEAD

Written by

in

GGC9858EQ0 03 – BULKHEAD

Products

PositionProduct
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
3WP90767 Whirlpool Screw
4WP3394986 Whirlpool Spring
5Air Duct Assembly
6WP697813 Whirlpool Seal
8WP3359452 Whirlpool Nut
11Wire, Jumper (Brown)
12WP308685 Whirlpool Microwave Screw
13Ground-Sensor
14W11222846 Whirlpool Door
15279936 Whirlpool Exhaust Pipe
16Nut, 3/8-16 (L.H.)
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22303776 Whirlpool Dishwasher Screw
23W11129408 Whirlpool Out Housing
25W10545924 Whirlpool Drum Assembly
26Screw
27280114 Whirlpool Dryer Drum Seal
30WP3395536 Whirlpool Clip Assembly
34WP3387223 Whirlpool Electrode Assembly
35Lens, Light
36WP3395618 Whirlpool Light Bulb
37WP697772 Whirlpool Dryer Blower Wheel
38Bracket, Lampholder
42WP3387134 Whirlpool Dryer Cycling Thermostat
43W11050897 Whirlpool Dryer High Limit Thermostat
44WP8544363 Whirlpool Housing
45Lint Duct Assembly
46Funnel, Burner
47Wire, Jumper (Black)
48WP338906 Whirlpool Dryer Gas Sensor
51WP3387230 Whirlpool Screw
52279780 Whirlpool Plate Cover
53WPW10113136 Whirlpool Drum Baffle
54Bulkhead, Front
58Grill, Outlet
59WP3390719 Whirlpool Dryer Thermal Fuse
60WP697770 Whirlpool Blower Cover Plate Seal
62WP8566209 Whirlpool Seal
64W10120998 Whirlpool Dryer Lint Screen Filter
