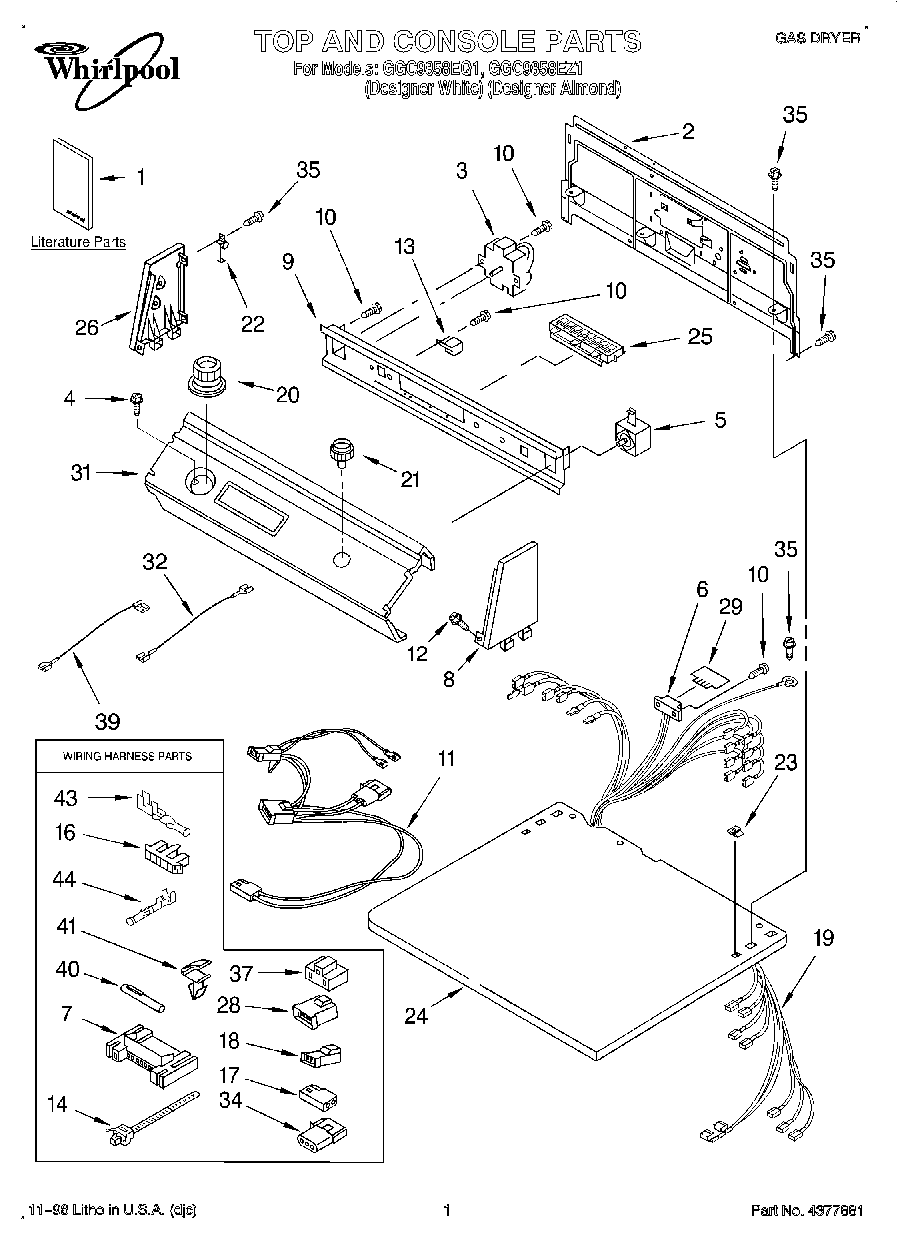

GGC9858EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Guide, Use & Care
	Dryer
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Label, Wiring Diagram
	350938 Whirlpool Spray Gun
	Literature Parts (Instructions, Installation)
2	Panel, Rear Console
3	WP3976570 Whirlpool Timer
4	3400859 Whirlpool Screw
5	WP3398094 Whirlpool Push To Start Switch
6	3391885 Whirlpool Connector
7	3395683 Whirlpool Connector
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
11	WP3401850 Whirlpool Wire Harness
12	WP388326 Whirlpool Screw
13	WP694419 Whirlpool Buzzer Adjuster
14	WP3391018 Whirlpool Wire Tie
16	Connector, Timer
17	Receptacle, Latching (2-Way) (Uses Terminal 94614)
18	WP3403499 Whirlpool Connector
19	Harness, Wiring
20	WP3957752 Whirlpool Knob
20	3957753 Whirlpool Knob
21	WP3957800 Whirlpool Knob
22	Hinge, Console (2)
23	WP357213 Whirlpool Hinge Stopper
24	Top (White)
24	Top (Almond)
25	Switch, Clean Touch (White)
25	Switch, Clean-Touch (Almond)
26	Cap, End (L.H.) (Almond)
26	Cap, End (L.H.)
28	WP3403498 Whirlpool Connector
29	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
31	Panel, Control (White)
31	Panel, Control (Almond)
32	Wire, Jumper (Black)
32	Wire, Jumper (Yellow)
34	Plug, 3-Way
35	WP488729 Whirlpool Refrigerator Door Screw
37	3401144 Whirlpool Connector
39	Wire, Jumper (White)
40	Receptacle
41	WP3394427 Whirlpool Clip
43	WP596797 Whirlpool Terminal
44	WP94614 Whirlpool Terminal
