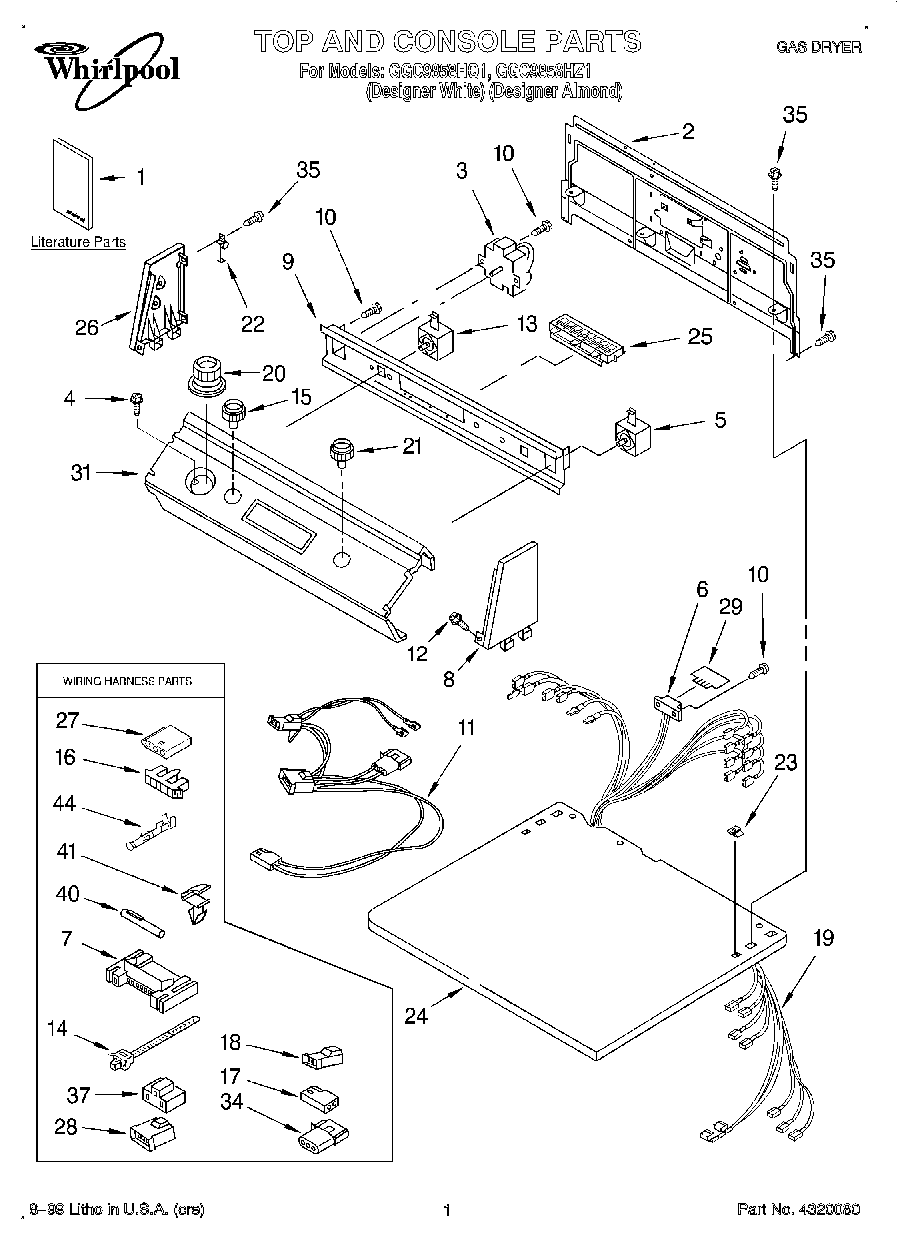

GGC9858HZ1 01 – TOP AND CONSOLE, LITERATURE

Products

Position	Product
	Dryer
1	Literature Parts (Label, Wiring Diagram)
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Instructions, Installation)
2	Panel, Rear Console
3	WP3406725 Whirlpool Timer
4	3400859 Whirlpool Screw
5	WP3398094 Whirlpool Push To Start Switch
6	3391885 Whirlpool Connector
7	3395683 Whirlpool Connector
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
11	WP3401850 Whirlpool Wire Harness
12	WP388326 Whirlpool Screw
13	WP3398093 Whirlpool Buzzer Adjuster
14	WP3391018 Whirlpool Wire Tie
15	3957797 Whirlpool Knob
15	WP3957796 Whirlpool Knob
16	Connector, Timer
17	Receptacle, Latching (2-Way) (Uses Terminal 94614)
18	WP3403499 Whirlpool Connector
19	Harness, Wiring
20	Timer Knob Assembly (Almond)
20	WP3957746 Whirlpool Knob Assembly
21	WP3957800 Whirlpool Knob
22	Hinge, Console (2)
23	WP357213 Whirlpool Hinge Stopper
24	Top (Almond)
24	Top (White)
25	Switch, Clean Touch (White)
25	Switch, Clean Touch (Almond)
26	Cap, End (L.H.) (Almond)
26	Cap, End (L.H.)
27	3936144 Whirlpool Connector
28	WP3403498 Whirlpool Connector
29	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
31	Panel, Control (Almond)
31	Panel, Control (White)
34	Plug, 3-Way
35	WP488729 Whirlpool Refrigerator Door Screw
37	3401144 Whirlpool Connector
40	Receptacle
41	WP3394427 Whirlpool Clip
44	WP94614 Whirlpool Terminal
