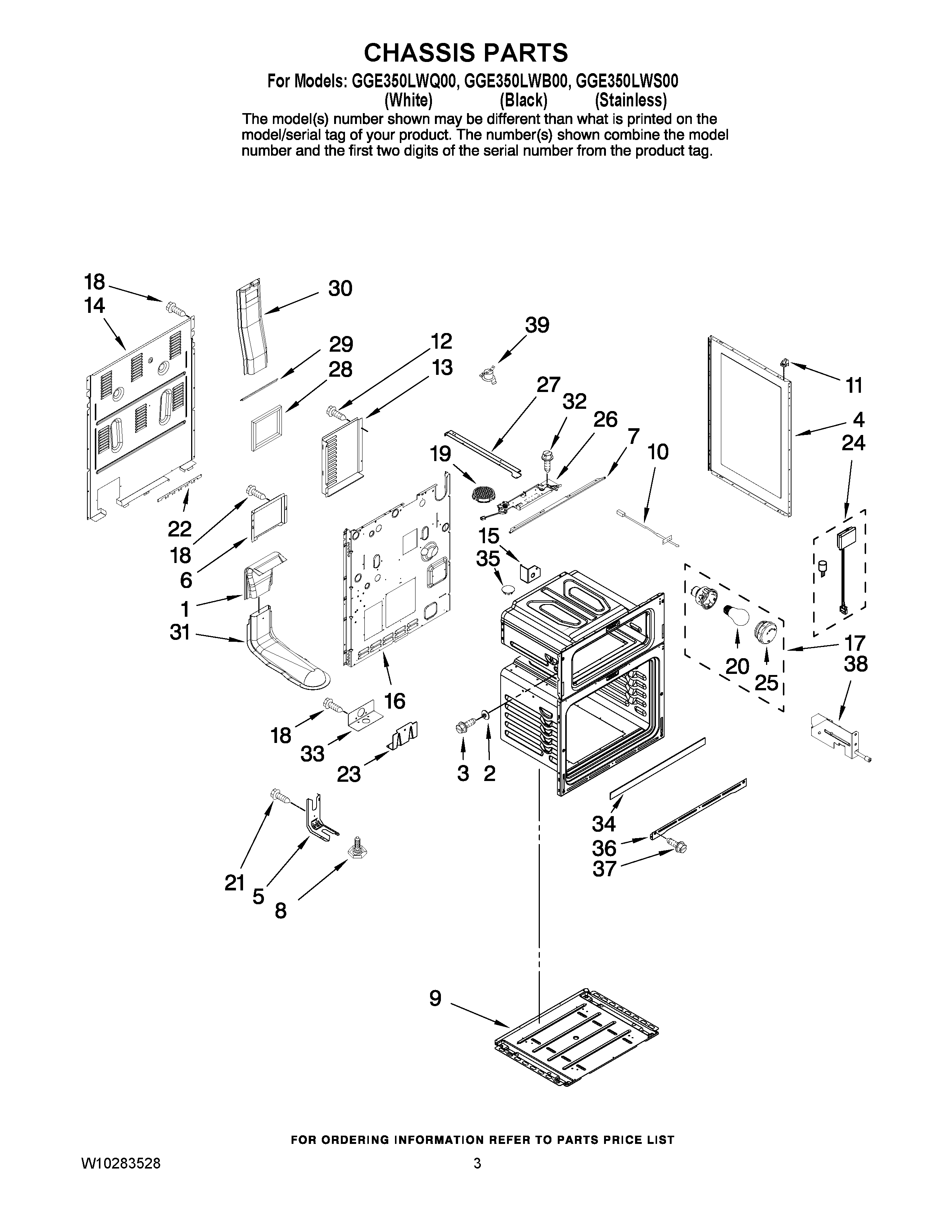

GGE350LWQ00 03 – CHASSIS PARTSadmin2025-04-26T12:23:35+00:00GGE350LWQ00 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, WRAP (UPPER OVEN) |
| NI | INSULATION, WRAP (LOWER OVEN) |
| NI | INSULATION, BACK (UPPER OVEN) |
| 1 | EXTENSION, VENT |
| 2 | SPACER, SIDE PANEL |
| 3 | Screw, Shoulder(6) |
| 4 | PANEL, SIDE (WHITE (2)) |
| 4 | PANEL, SIDE (BLACK (2)) |
| 5 | BRACKET, ANTI TIP |
| 6 | COVER, ACCESS |
| 7 | BRACKET, COOKTOP |
| 8 | FOOT, LEVELER |
| 9 | BASE, GEMINI |
| 10 | Sensor, Oven |
| 10 | SENSOR, OVEN |
| 11 | SPACER, TOP (RIGHT) |
| 11 | SPACER, TOP (LEFT) |
| 12 | Screw |
| 13 | COVER, BOTTOM WIRE |
| 14 | COVER, UPPER WIRE |
| 15 | BRACKET (RIGHT) |
| 15 | BRACKET (LEFT) |
| 16 | BACK, MAIN |
| 18 | Screw |
| 19 | SMOKE ELIMINATOR |
| 20 | BULB, OVEN |
| 21 | SCREW, ANTI-TIP KIT |
| 22 | SHIELD, POWER CORD |
| 23 | SUPPORT, LWR OVEN |
| 24 | LIGHT ASSY. (UPPER) |
| 24 | Light Assembly |
| 25 | WP3196068 Whirlpool Light Lens |
| 26 | LATCH, DOOR LOCK |
| 27 | BOTTOM, BURNER BOX (RIGHT) |
| 27 | BOTTOM, BURNER BOX (LEFT) |
| 28 | GASKET, VENT |
| 29 | SHEILD, DOOR LOCK |
| 30 | VENT, OVEN |
| 31 | VENT, BOX (LOWER) |
| 31 | VENT, BOX (UPPER) |
| 32 | SCREW |
| 33 | W10190166 Whirlpool Service Bracket |
| 34 | SEAL, FRAME |
| 35 | PLUG, HOLE |
| 36 | TRIM, KICKPLATE |
| 37 | SCREW (BLACK) |
| 38 | SWTCH-LITE |
| 39 | SWITCH, HI-LIMIT |
