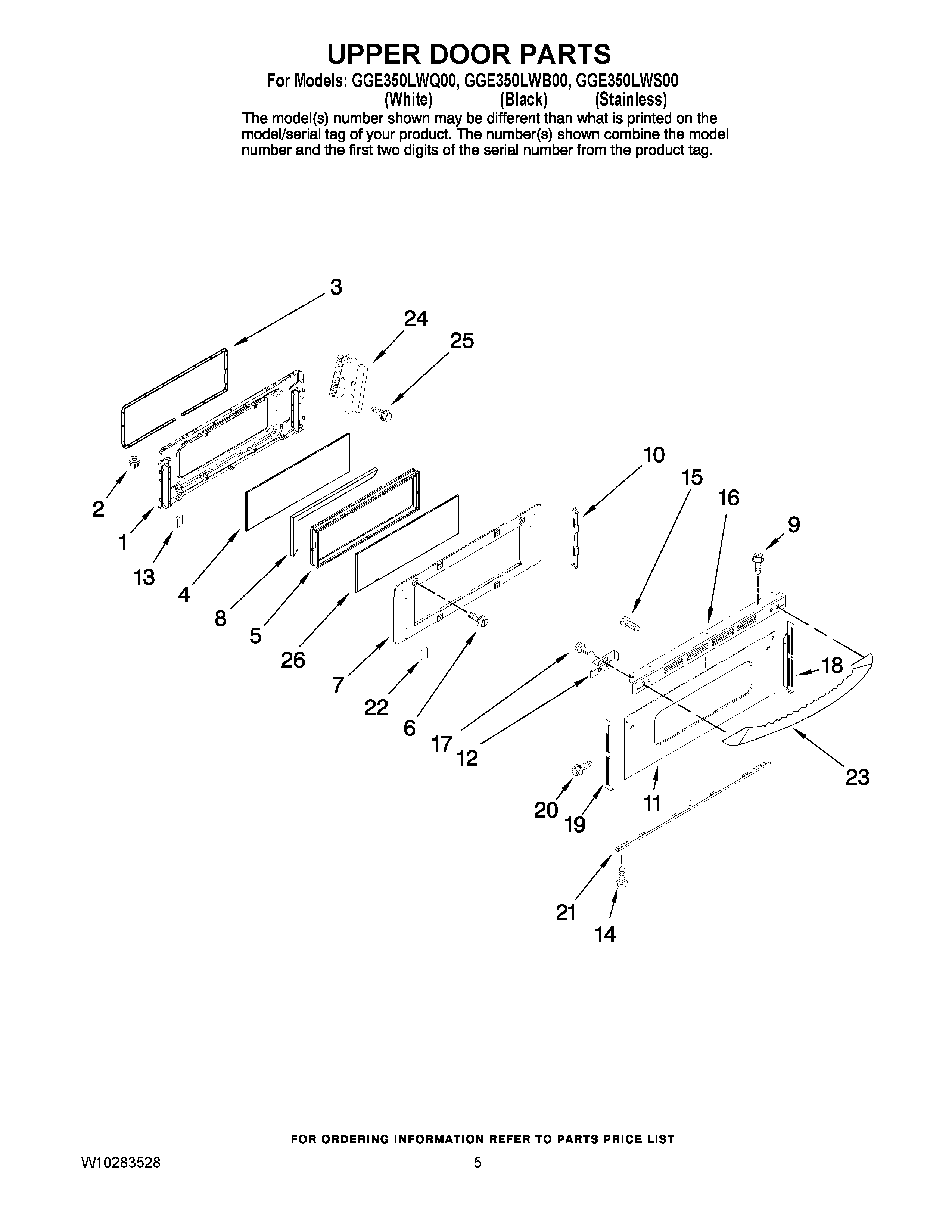

GGE350LWQ00 04 – UPPER DOOR PARTS

Products

Position	Product
1	LINING, DOOR
2	NUT, SNAP
2	NUT, SNAP (WHITE)
3	GASKET, DOOR
4	GLASS, INNER (2)
5	FRAME, GLASS
6	Screw
7	BAFFEL, DOOR
8	INSULATION, DOOR
10	RETAINER, GLASS
11	KIT, DOOR GLASS (INCL. FOIL TAPE) (BLACK)
11	KIT, DOOR GLASS (INCL. FOIL TAPE) (SS OUTER PANEL)
11	KIT, DOOR GLASS (INCL. FOIL TAPE) (STAINLESS)
11	KIT, DOOR GLASS (INCL. FOIL TAPE) (WHITE)
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	Spacer, Rubber
14	SCREW W/WASHER
15	Screw
16	Trim, Door Top
16	Trim, Door Top
17	SCREW
18	TRIM, DOOR (RT) (WHITE)
18	TRIM, DOOR (RT) (BLACK)
19	TRIM, DOOR (LT) (WHITE)
19	TRIM, DOOR (LT) (BLACK)
20	SCREW (BLACK)
20	SCREW (WHITE)
21	Trim, Door Bottom
21	Trim, Door Bottom
22	Tape, White
23	W10118431 Whirlpool Door Handle
23	WPW10144883 Whirlpool Door Handle
23	WPW10118430 Whirlpool Door Handle
24	HINGE, DOOR (2)
25	SCREW
26	GLASS, DOOR
