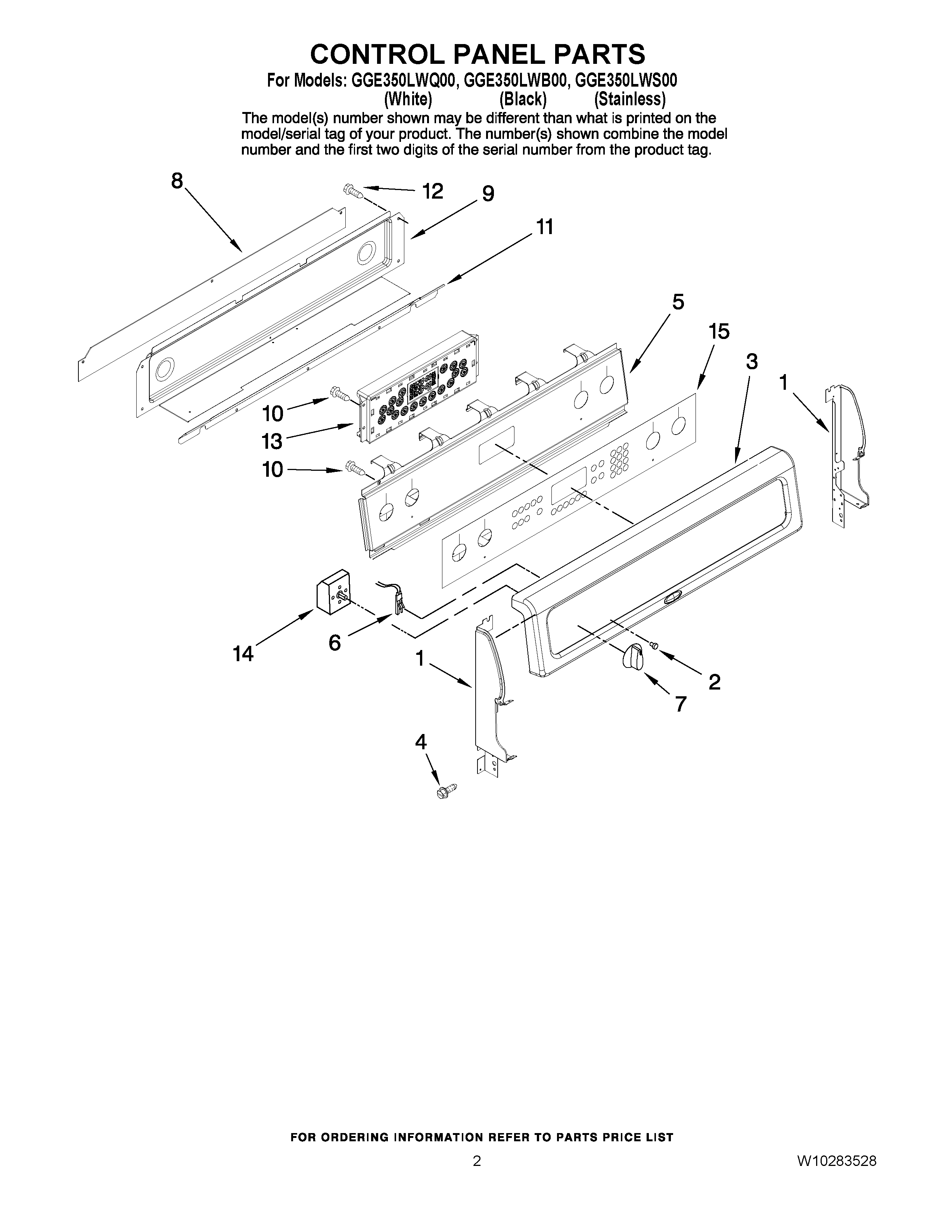

GGE350LWS00 02 – CONTROL PANEL PARTS

GGE350LWS00 02 – CONTROL PANEL PARTS

Written by

in

GGE350LWS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1SUPPORT, BACKGUARD (WHITE RIGHT)
1SUPPORT, BACKGUARD (BLACK RIGHT)
1SUPPORT, BACKGUARD (BLACK LEFT)
1SUPPORT, BACKGUARD (WHITE LEFT)
2WP3196068 Whirlpool Light Lens
3Panel, Control (Black)
3Panel, Control (White)
3Panel, Control (Stainless)
4SCREW (BLACK)
5OVERLAY, BRKT.
6Light, Indicator
7KNOB (WHITE)
7KNOB, DUAL (WHITE)
7KNOB (BLACK)
7KNOB, DUAL (BLACK)
8SHIELD, SIGHT
9COVER, REAR WIRE
10SCREW
11SHIELD, WIRE
12SCREW
13CONTROL, H3 (ELEC)
14SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
14SWITCH, INFINITE (RIGHT REAR)
14SWITCH, INFINITE (RIGHT FRONT)
15W10253425 Whirlpool Dishwasher Membrane Switch
15MEMBRANE, SWITCH (WHITE)
