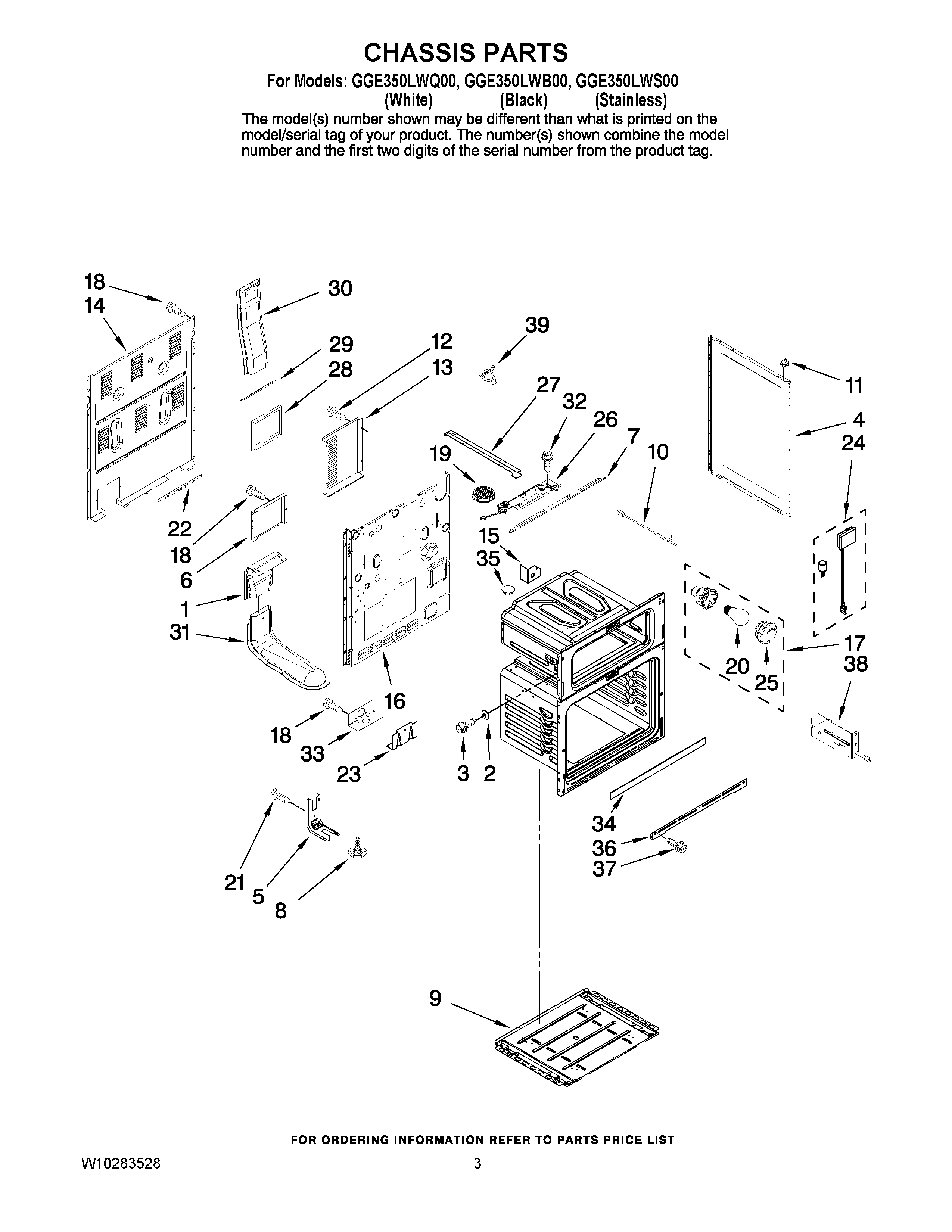

GGE350LWS00 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP (UPPER OVEN)
NI	INSULATION, WRAP (LOWER OVEN)
NI	INSULATION, BACK (UPPER OVEN)
1	EXTENSION, VENT
2	SPACER, SIDE PANEL
3	Screw, Shoulder(6)
4	PANEL, SIDE (WHITE (2))
4	PANEL, SIDE (BLACK (2))
5	BRACKET, ANTI TIP
6	COVER, ACCESS
7	BRACKET, COOKTOP
8	FOOT, LEVELER
9	BASE, GEMINI
10	Sensor, Oven
10	SENSOR, OVEN
11	SPACER, TOP (RIGHT)
11	SPACER, TOP (LEFT)
12	Screw
13	COVER, BOTTOM WIRE
14	COVER, UPPER WIRE
15	BRACKET (RIGHT)
15	BRACKET (LEFT)
16	BACK, MAIN
18	Screw
19	SMOKE ELIMINATOR
20	BULB, OVEN
21	SCREW, ANTI-TIP KIT
22	SHIELD, POWER CORD
23	SUPPORT, LWR OVEN
24	LIGHT ASSY. (UPPER)
24	Light Assembly
25	WP3196068 Whirlpool Light Lens
26	LATCH, DOOR LOCK
27	BOTTOM, BURNER BOX (RIGHT)
27	BOTTOM, BURNER BOX (LEFT)
28	GASKET, VENT
29	SHEILD, DOOR LOCK
30	VENT, OVEN
31	VENT, BOX (LOWER)
31	VENT, BOX (UPPER)
32	SCREW
33	W10190166 Whirlpool Service Bracket
34	SEAL, FRAME
35	PLUG, HOLE
36	TRIM, KICKPLATE
37	SCREW (BLACK)
38	SWTCH-LITE
39	SWITCH, HI-LIMIT
