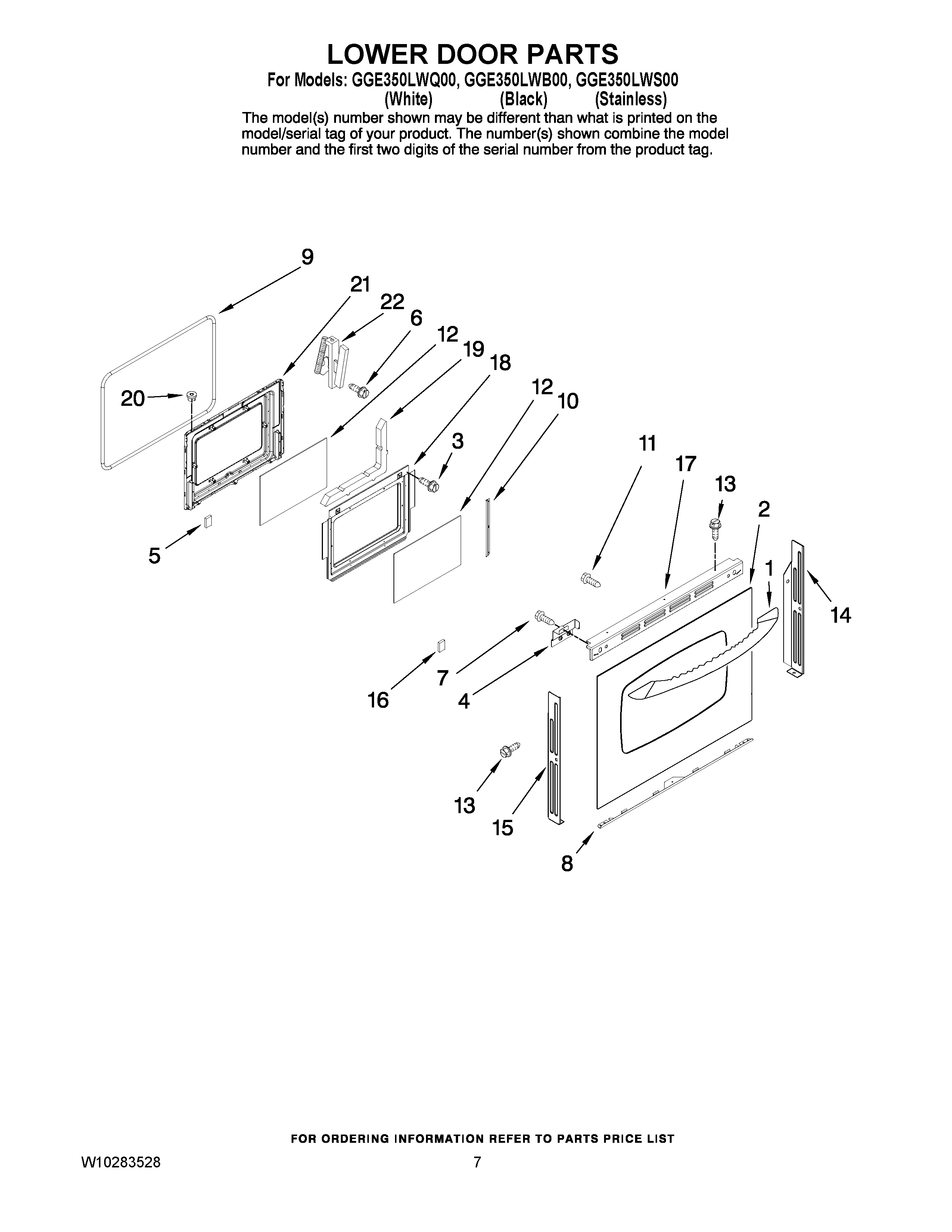

GGE350LWS00 05 – LOWER DOOR PARTS

Products

Position	Product
1	WPW10118430 Whirlpool Door Handle
1	W10118431 Whirlpool Door Handle
1	WPW10144883 Whirlpool Door Handle
2	KIT, DOOR GLASS (INCL. FOIL TAPE) (SS, OUTER PANEL)
2	KIT, DOOR GLASS (INCL. FOIL TAPE) (WHITE)
2	KIT, DOOR GLASS (INCL. FOIL TAPE) (STAINLESS)
2	KIT, DOOR GLASS (INCL. FOIL TAPE) (BLACK)
3	Screw
4	Bracket, Handle (Left)
4	Bracket, Handle (Right)
5	Spacer, Rubber
6	SCREW, HANDLE
7	W11396735 Whirlpool Screw
8	Trim, Door Bottom
8	Trim, Door Bottom
9	GASKT-DOOR OVEN
10	Bracket, Glass
11	Screw
12	PANEL, OUTER DOOR
12	GLASS. OUTER DOOR (S.STEEL MDL ONLY)
12	PANEL, OUTER DOOR (BLACK)
12	GLASS, INNER
13	SCREW (BLACK)
14	Trim, Door Side (Right)
14	TRIM, DOOR SIDE (BLACK, RIGHT)
15	Trim, Door Side (Left)
15	TRIM, DOOR SIDE (BLACK, LEFT)
16	Tape, White
17	Trim, Door Top
17	Trim, Door Top
18	Baffel, Retainer
19	Insulation, Door
20	NUT, SNAP (WHITE)
20	NUT, SNAP
21	Lining, Door
22	HINGE
