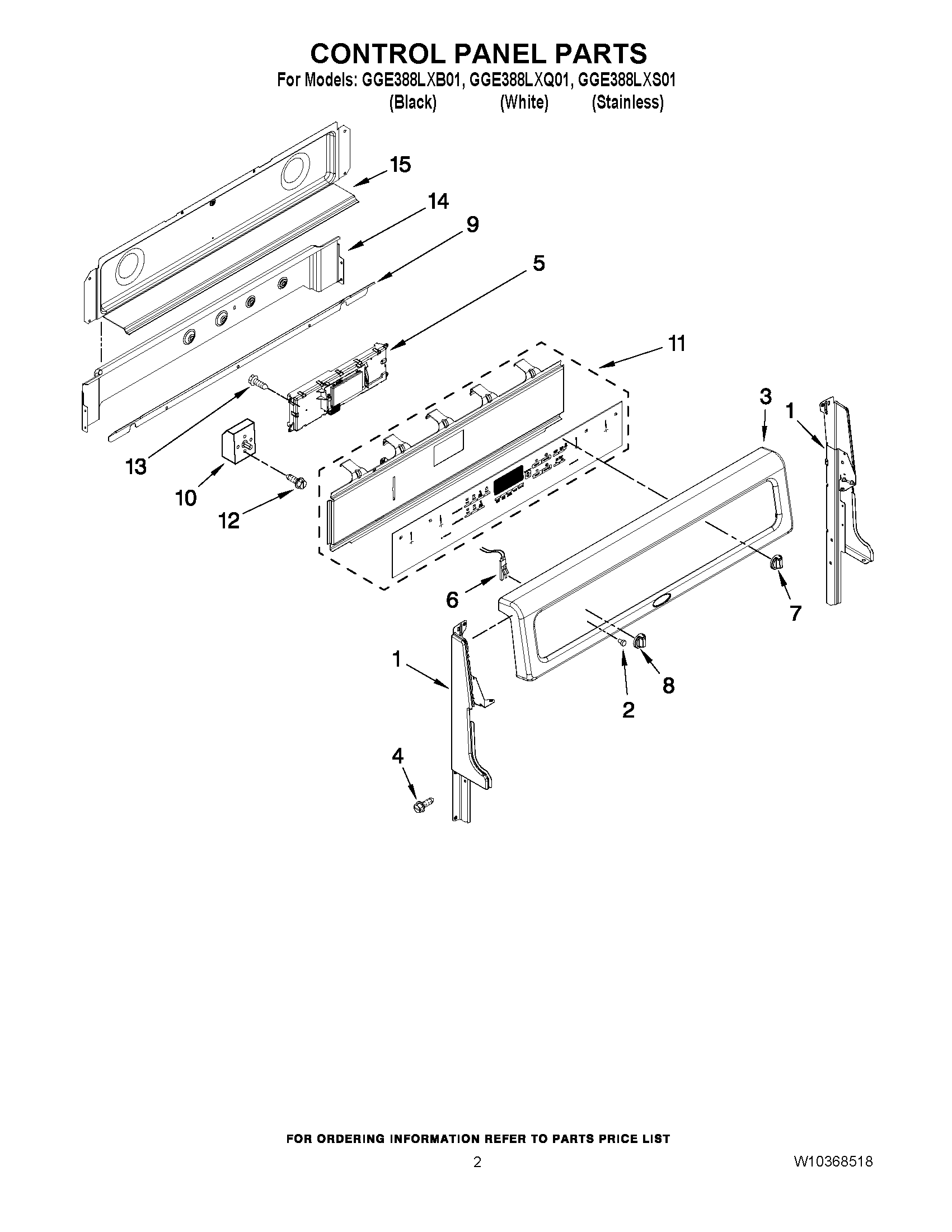

GGE388LXB01 02 – CONTROL PANEL PARTSadmin2025-04-26T12:20:29+00:00GGE388LXB01 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | W10319110 Whirlpool Endcap Panel |
| 1 | W10319112 Whirlpool Panel Endcap |
| 1 | SUPPORT, BACK GUARD (RIGHT HAND) |
| 1 | W10319109 Whirlpool Endcap Panel |
| 2 | WP3196068 Whirlpool Light Lens |
| 3 | Panel, Control (Stainless) |
| 3 | Panel, Control (Black) |
| 3 | Panel, Control (White) |
| 4 | SCREW (BLACK) |
| 5 | ELECTRIC, CONTROL |
| 6 | Light, Indicator |
| 7 | KNOB (BLACK) |
| 7 | KNOB (WHITE) |
| 8 | KNOB, DUAL (WHITE) |
| 8 | KNOB, DUAL (BLACK) |
| 10 | SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT) |
| 10 | SWITCH, INFINITE (RIGHT REAR) |
| 10 | SWITCH, INFINITE (RIGHT FRONT) |
| 11 | W10321794 Whirlpool Dishwasher Membrane Switch |
| 12 | WPL 7101P30960 |
| 13 | SCREW |
| 14 | W10278697 Whirlpool Vent Shield Assembly |
| 15 | W10296773 Whirlpool Rear Cover |
