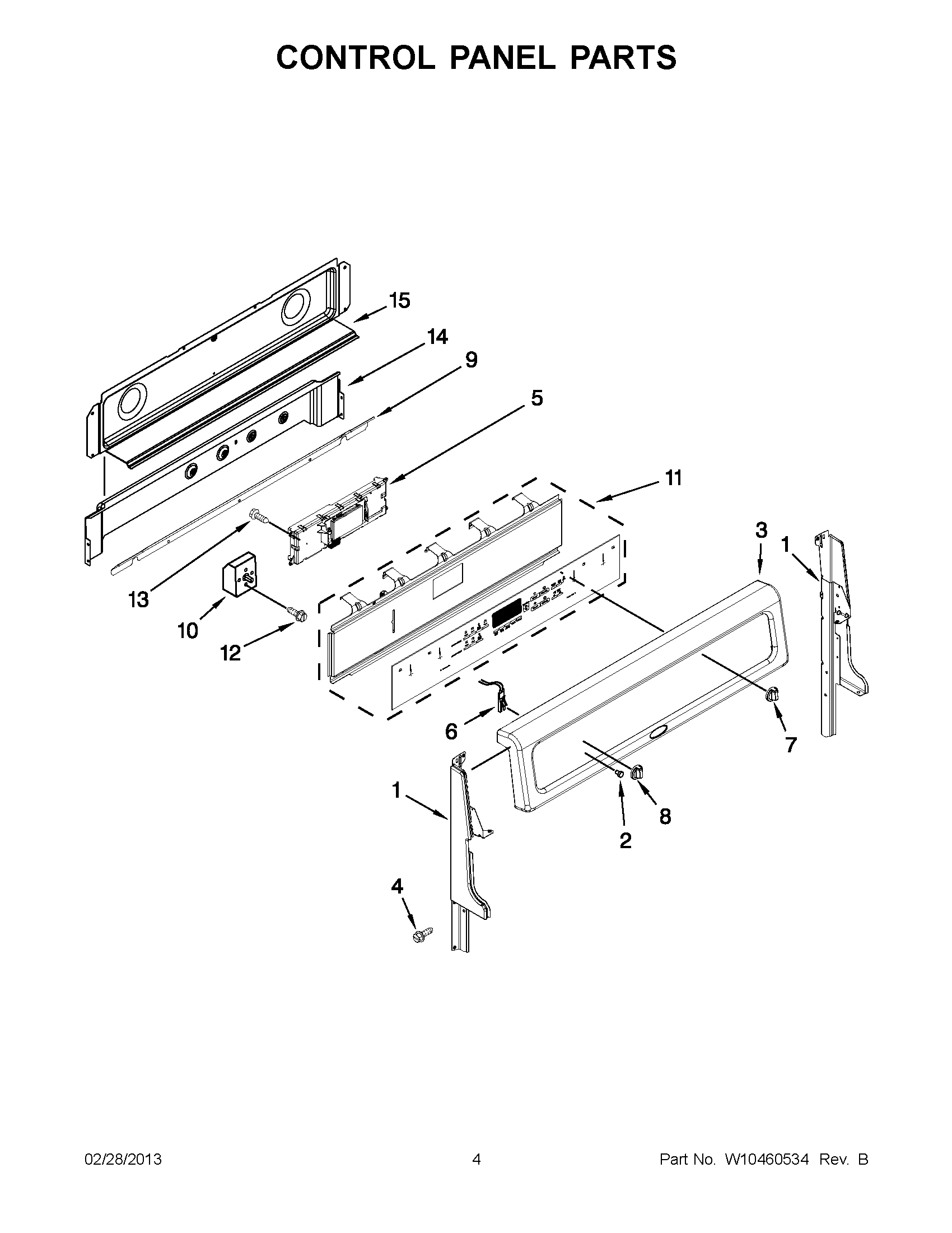

GGE388LXQ02 02 – CONTROL PANEL PARTS

GGE388LXQ02 02 – CONTROL PANEL PARTS

Written by

in

GGE388LXQ02 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319112 Whirlpool Panel Endcap
1W10319110 Whirlpool Endcap Panel
1W10319109 Whirlpool Endcap Panel
1SUPPORT, BACK GUARD (RIGHT HAND)
2WP3196068 Whirlpool Light Lens
3Panel, Control (White)
3Panel, Control (Black)
3Panel, Control (Stainless)
4SCREW (BLACK)
5ELECTRIC, CONTROL
6Light, Indicator
7KNOB (WHITE)
7KNOB (BLACK)
8KNOB, DUAL (WHITE)
8KNOB, DUAL (BLACK)
10SWITCH, INFINITE (RIGHT REAR)
10SWITCH, INFINITE (RIGHT FRONT)
10WPW10441696 Infinite Switch (Right) Front)
11W10321794 Whirlpool Dishwasher Membrane Switch
12WPL 7101P30960
13SCREW
14W10278697 Whirlpool Vent Shield Assembly
15W10296773 Whirlpool Rear Cover
