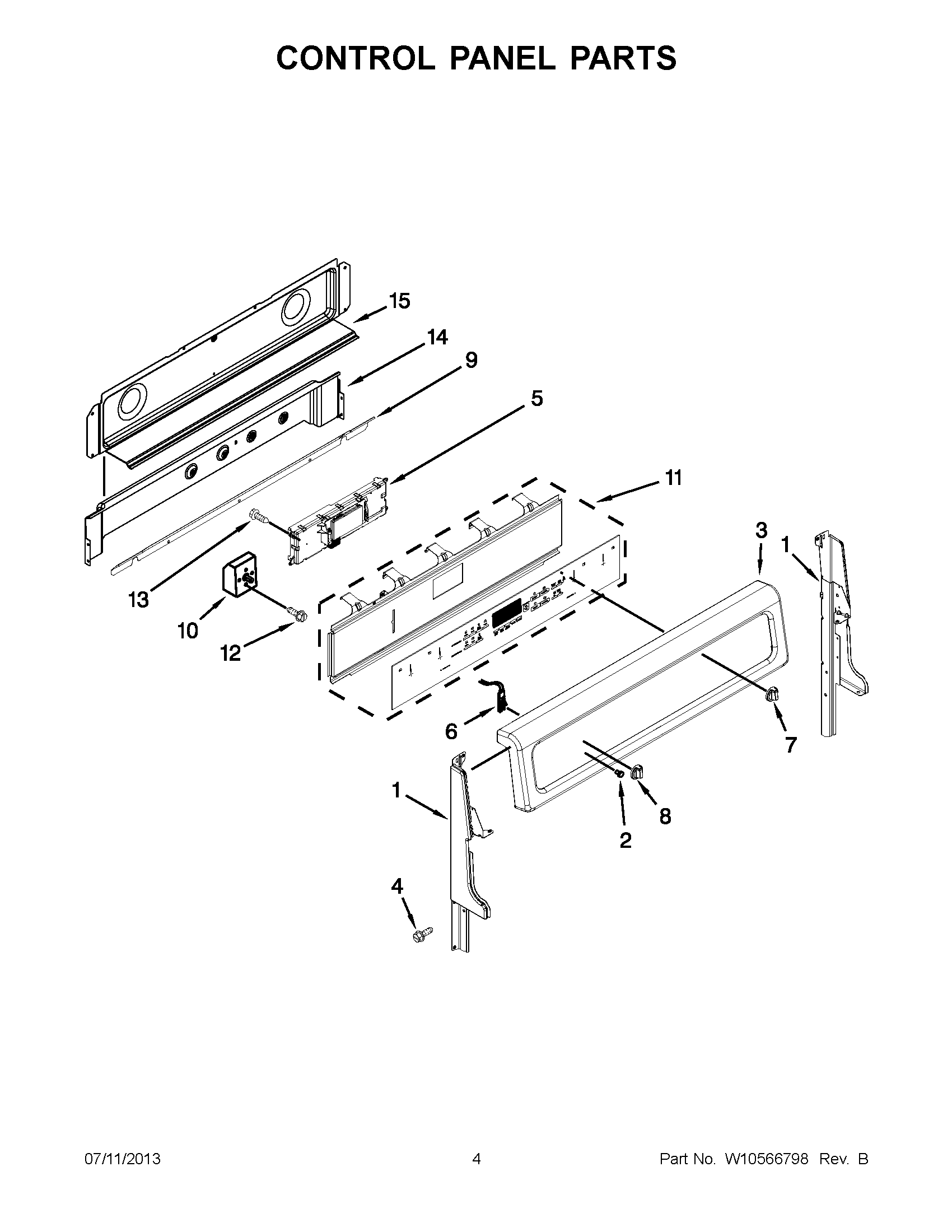

GGE388LXQ04 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319112 Whirlpool Panel Endcap
1	W10319110 Whirlpool Endcap Panel
1	W10319109 Whirlpool Endcap Panel
1	SUPPORT, BACK GUARD (RIGHT HAND)
2	WP3196068 Whirlpool Light Lens
3	CONSOLE (BLACK)
3	CONSOLE (WHITE)
3	CONSOLE (STAINLESS)
4	SCREW (BLACK)
5	ELECTRIC, CONTROL
6	Light, Indicator
7	KNOB (WHITE)
7	KNOB (BLACK)
8	KNOB, DUAL (WHITE)
8	KNOB, DUAL (BLACK)
10	SWITCH, INFINITE (RIGHT REAR)
10	SWITCH, INFINITE (RIGHT FRONT)
10	WPW10441696 Infinite Switch (Right) Front)
11	W10321794 Whirlpool Dishwasher Membrane Switch
12	WPL 7101P30960
13	SCREW
14	W10278697 Whirlpool Vent Shield Assembly
15	W10296773 Whirlpool Rear Cover
