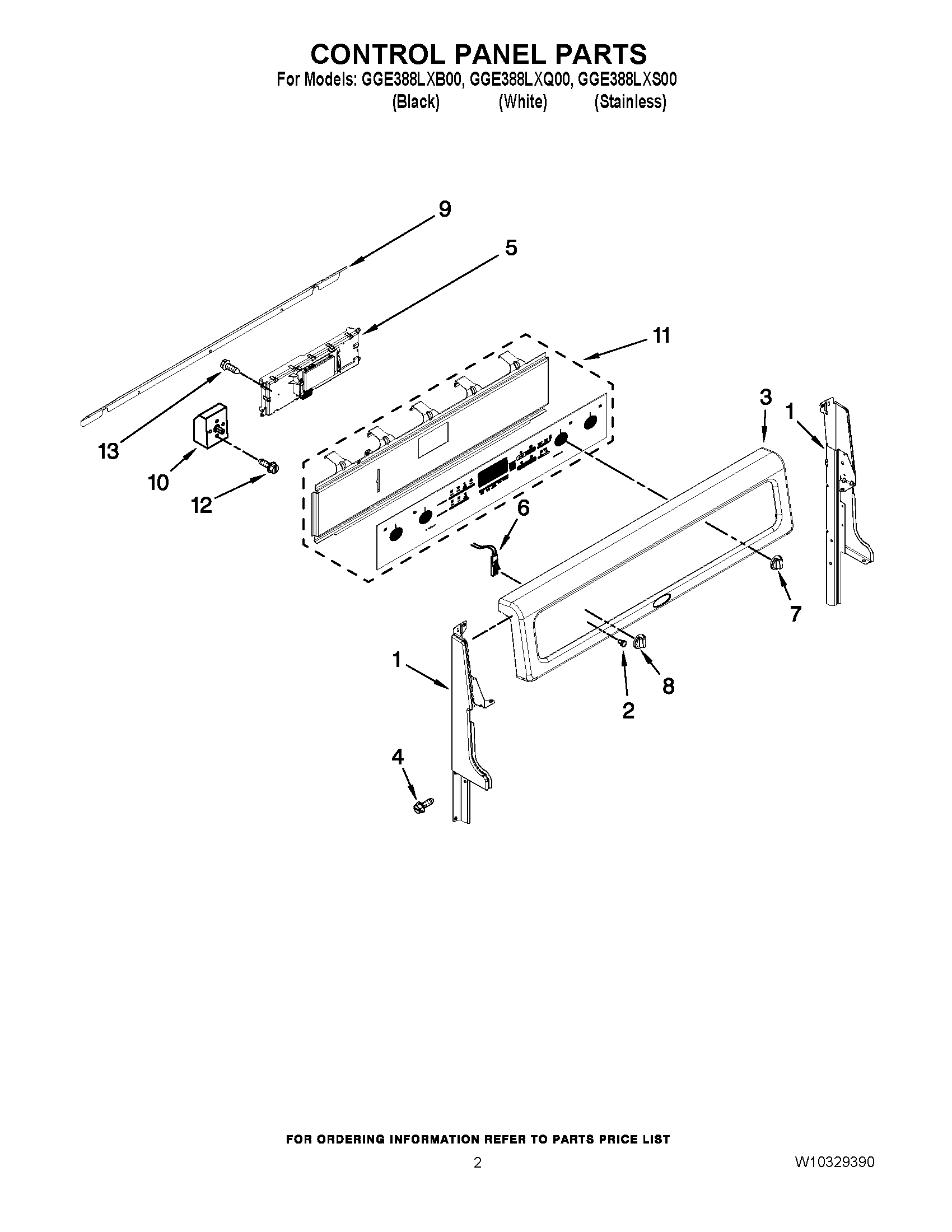

GGE388LXS00 02 – CONTROL PANEL PARTS

GGE388LXS00 02 – CONTROL PANEL PARTS

Written by

in

GGE388LXS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1SUPPORT, BACKGUARD (BLACK, RIGHT)
1W10319112 Whirlpool Panel Endcap
1W10319110 Whirlpool Endcap Panel
1W10319109 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3Panel, Control (Stainless)
3Panel, Control (Black)
3Panel, Control (White)
4SCREW (BLACK)
5ELECTRIC, CONTROL
6Light, Indicator
7KNOB (WHITE)
7KNOB (BLACK)
8KNOB, DUAL (BLACK)
8KNOB, DUAL (WHITE)
10SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
10SWITCH, INFINITE (RIGHT REAR)
10SWITCH, INFINITE (RIGHT FRONT)
11W10321794 Whirlpool Dishwasher Membrane Switch
12WPL 7101P30960
13SCREW
