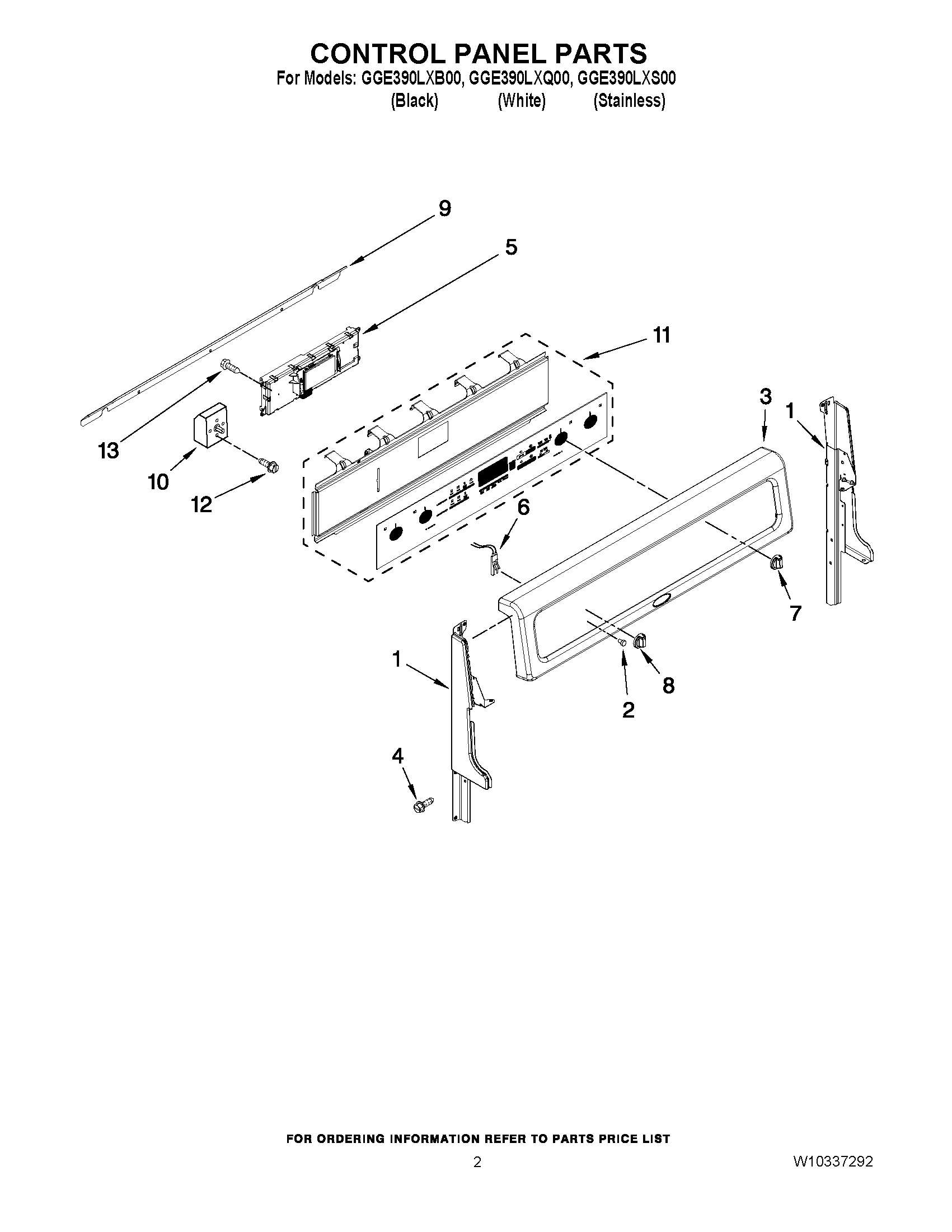

GGE390LXB00 02 – CONTROL PANEL PARTSadmin2025-04-26T12:22:07+00:00GGE390LXB00 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | SUPPORT, BACKGUARD (BLACK, RIGHT) |
| 1 | W10319109 Whirlpool Endcap Panel |
| 1 | W10319110 Whirlpool Endcap Panel |
| 1 | W10319112 Whirlpool Panel Endcap |
| 2 | WP3196068 Whirlpool Light Lens |
| 3 | Panel, Control (Black) |
| 3 | Panel, Control (White) |
| 3 | Panel, Control (Stainless) |
| 4 | SCREW (BLACK) |
| 5 | WPW10365412-includeCORE Whirlpool WPW10365412 Refrigerator Electronic Control Board + Core |
| 6 | Light, Indicator |
| 7 | KNOB (BLACK) |
| 7 | KNOB (WHITE) |
| 8 | KNOB, DUAL (BLACK) |
| 8 | KNOB, DUAL (WHITE) |
| 10 | SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT) |
| 10 | SWITCH, INFINITE (RIGHT REAR) |
| 11 | W10321792 Whirlpool Membrane Switch |
| 11 | ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK) |
| 12 | WPL 7101P30960 |
| 13 | SCREW |
