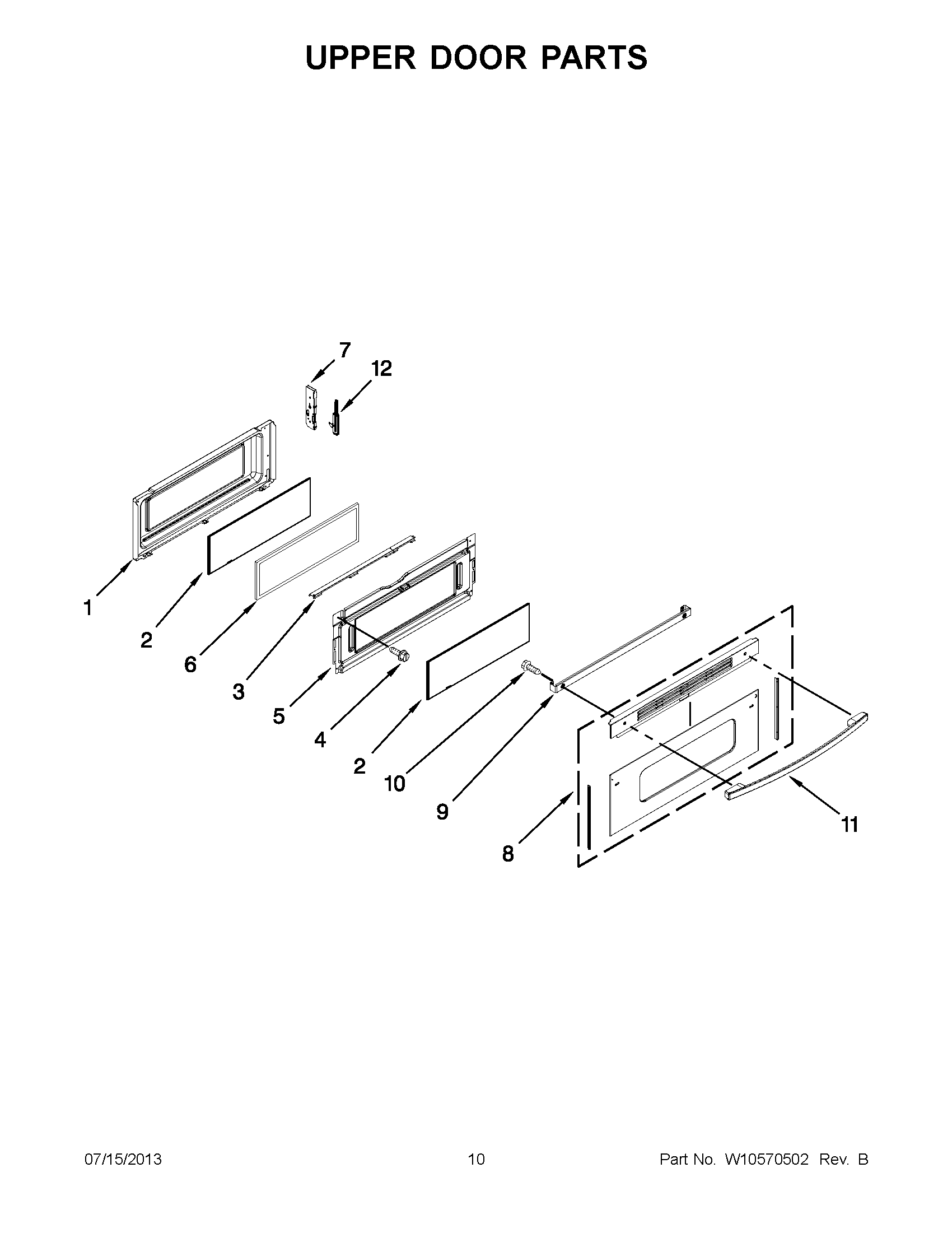

GGE390LXB04 05 – UPPER DOOR PARTS

Products

Position	Product
1	W11051040 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	WPW10321271 Whirlpool Insulation Assembly
7	W10647259 Whirlpool Hinge Receiver
8	GLASS, DOOR (STAINLESS)
8	GLASS, DOOR (WHITE)
8	GLASS, DOOR (BLACK)
9	WPW10294695 Whirlpool Mounting Bracket
10	WPW10317886 Whirlpool Screw
11	W10817434 Whirlpool Door Handle
11	WPW10144883 Whirlpool Door Handle
11	WPW10323589 Whirlpool Door Handle
12	WPW10485733 Whirlpool Door Hinge
12	WPW10485732 Whirlpool Door Hinge
