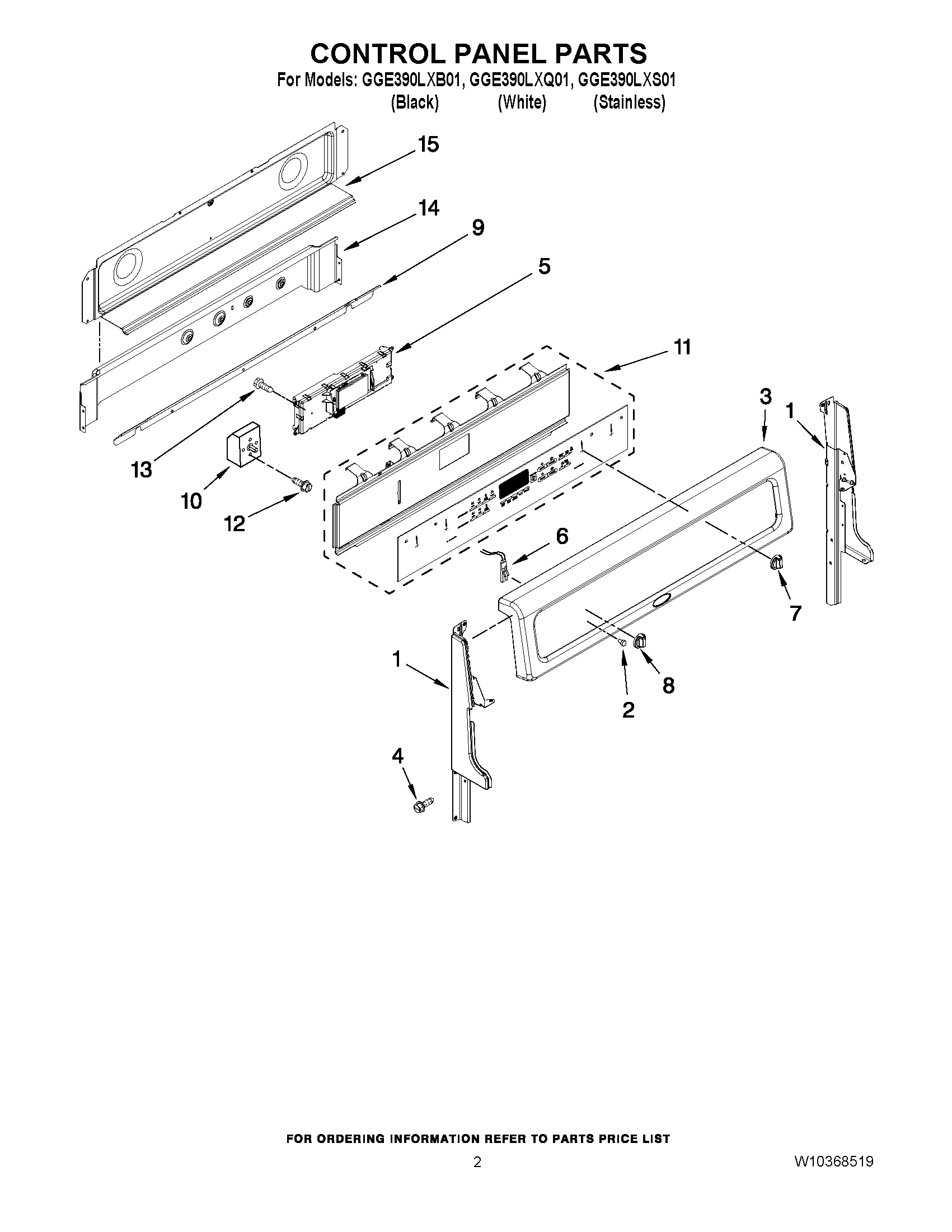

GGE390LXQ01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1SUPPORT, BACK GUARD (RIGHT HAND)
1W10319112 Whirlpool Panel Endcap
1W10319110 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3Panel, Control (Black)
3Panel, Control (White)
3Panel, Control (Stainless)
4SCREW (BLACK)
5WPW10365412-includeCORE Whirlpool WPW10365412 Refrigerator Electronic Control Board + Core
6Light, Indicator
7KNOB (BLACK)
7KNOB (WHITE)
8KNOB, DUAL (BLACK)
8KNOB, DUAL (WHITE)
10SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
10SWITCH, INFINITE (RIGHT REAR)
11W10321792 Whirlpool Membrane Switch
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK)
12WPL 7101P30960
13SCREW
14W10278697 Whirlpool Vent Shield Assembly
15W10296773 Whirlpool Rear Cover
