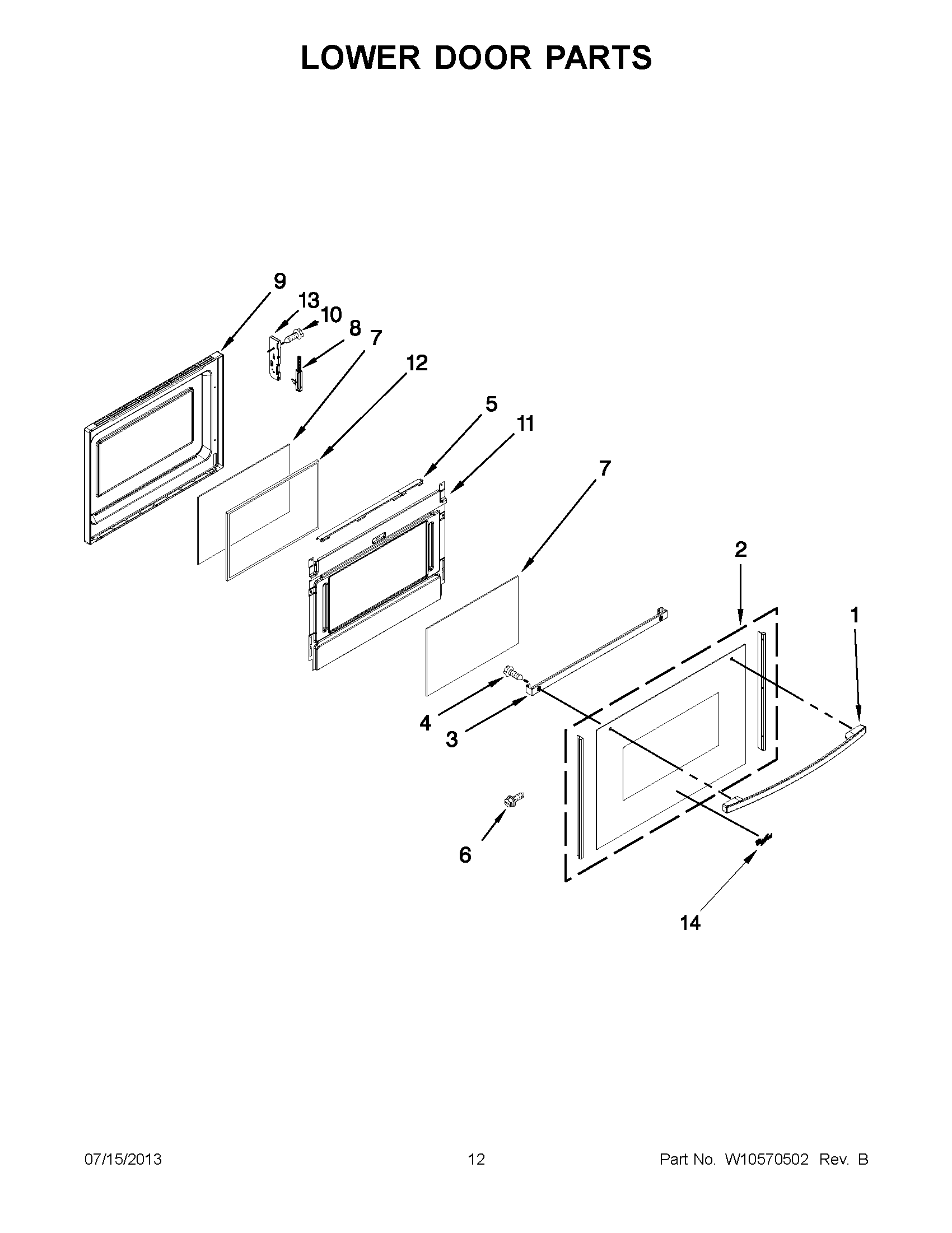

GGE390LXQ04 06 – LOWER DOOR PARTS

GGE390LXQ04 06 – LOWER DOOR PARTS

Written by

in

GGE390LXQ04 06 – LOWER DOOR PARTS

Products

PositionProduct
1W10817434 Whirlpool Door Handle
1WPW10323589 Whirlpool Door Handle
1WPW10144883 Whirlpool Door Handle
2GLASS, DOOR (STAINLESS)
2GLASS, DOOR (BLACK)
2GLASS, DOOR (WHITE)
3WPW10294695 Whirlpool Mounting Bracket
4WPW10317886 Whirlpool Screw
5WPW10272594 Whirlpool Window Frame
6WPW10292297 Whirlpool Screw
7WP9757706 Whirlpool Door Inner Glass
8WPW10335434 Whirlpool Door Hinge
8WPW10335433 Whirlpool Door Hinge
9WPW10272698 Whirlpool Dishwasher Door Liner
10Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13WPW10272328 Whirlpool Hinge Receptacle
13WPW10272329 Whirlpool Hinge Receptacle
14W11178521 Whirlpool Dishwasher Nameplate
