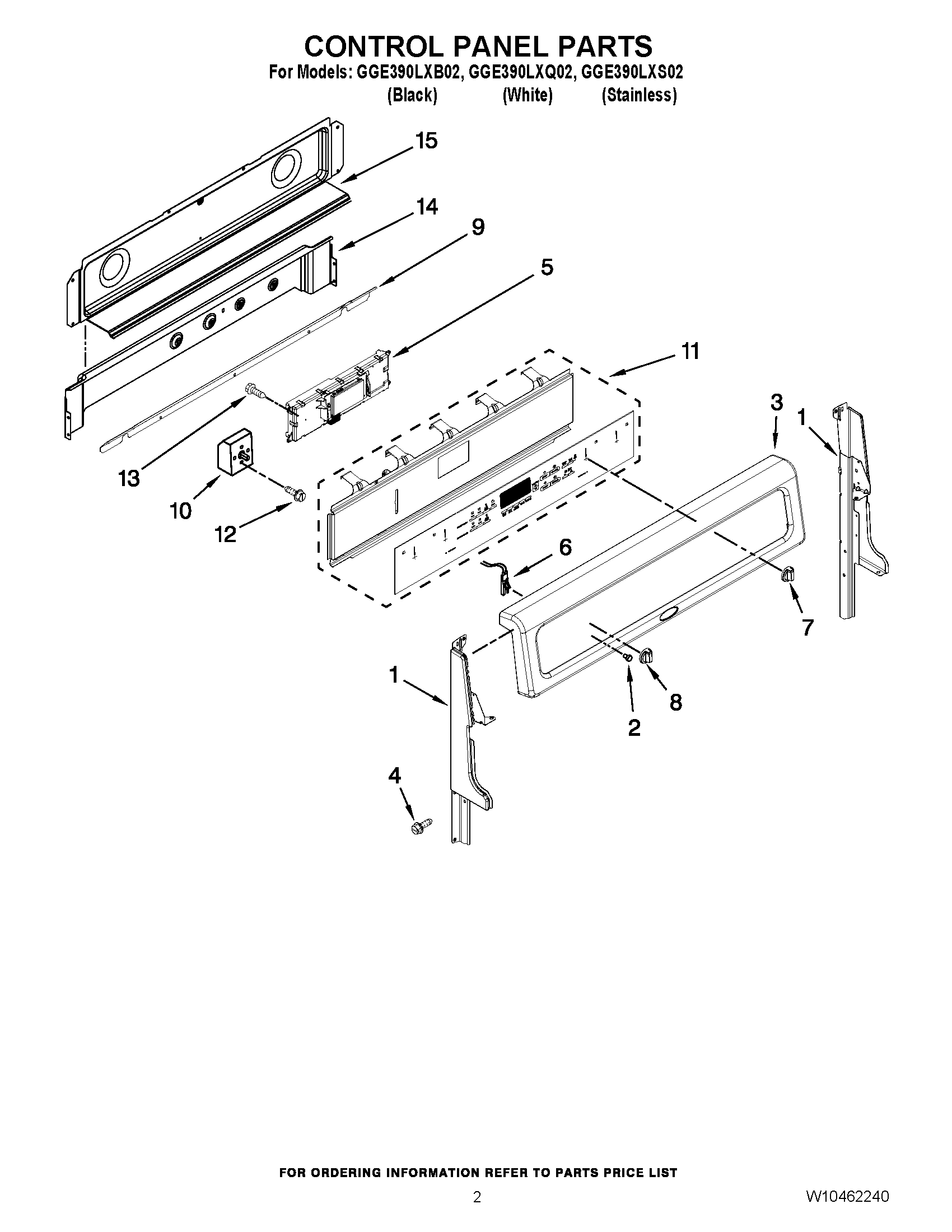

GGE390LXS02 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1	SUPPORT, BACK GUARD (RIGHT HAND)
1	W10319112 Whirlpool Panel Endcap
1	W10319110 Whirlpool Endcap Panel
2	WP3196068 Whirlpool Light Lens
3	Panel, Control (Black)
3	Panel, Control (White)
3	Panel, Control (Stainless)
4	SCREW (BLACK)
5	WPW10365412-includeCORE Whirlpool WPW10365412 Refrigerator Electronic Control Board + Core
6	Light, Indicator
7	KNOB (WHITE)
7	KNOB (BLACK)
8	KNOB, DUAL (WHITE)
8	KNOB, DUAL (BLACK)
10	WPW10441696 Infinite Switch (Right) Front)
10	SWITCH, INFINITE (RIGHT REAR)
11	W10321792 Whirlpool Membrane Switch
11	ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK)
12	WPL 7101P30960
13	SCREW
14	W10278697 Whirlpool Vent Shield Assembly
15	W10296773 Whirlpool Rear Cover
