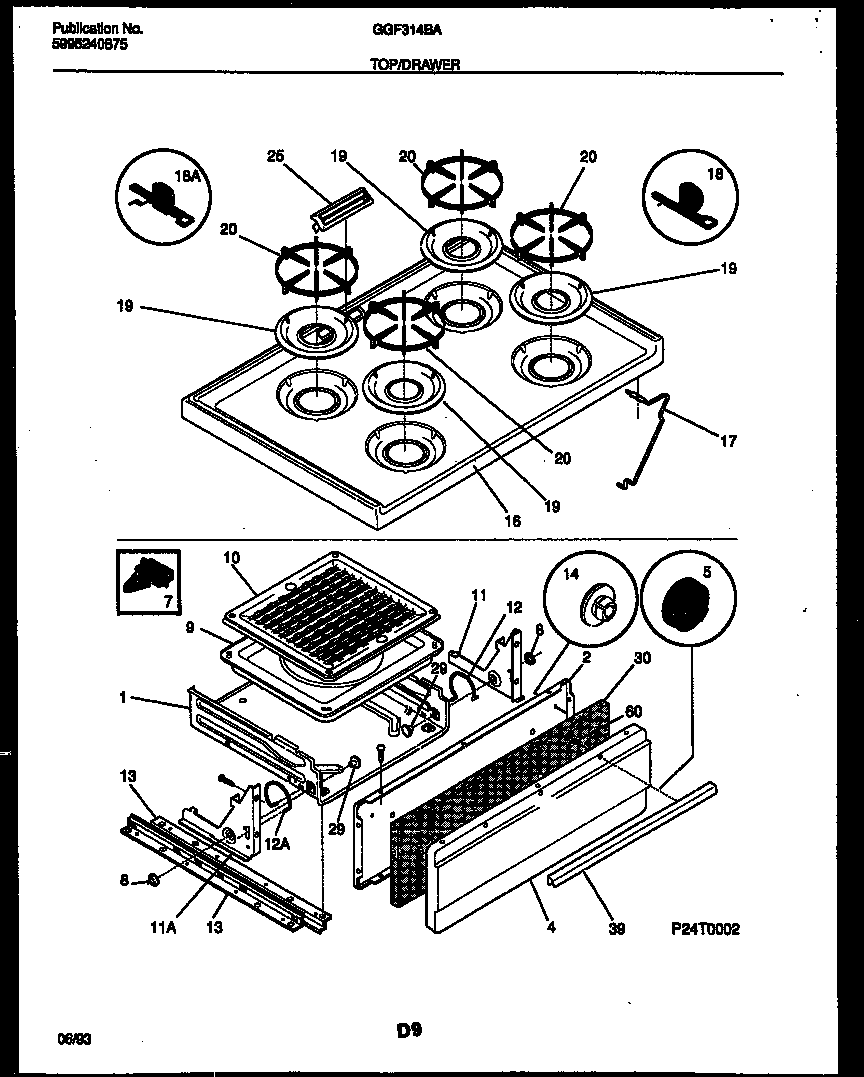

GGF314BADA 05 – COOKTOP AND BROILER DRAWER PARTS

Products

PositionProduct
*63914WCI 5303281584
1DRAWER-BROILER
2WCI 3202803
4PANEL – BROILER ALMD
4PNL-DRAWER (WHTE)
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11AWCI 3200673
11WCI 3018860
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303200658
17ROD-MAIN SUPPORT (2)
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
195303131115 Frigidaire Range Chrome Drip Bowl, 8"
20316055800 Frigidaire Oven Grate
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019504
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
