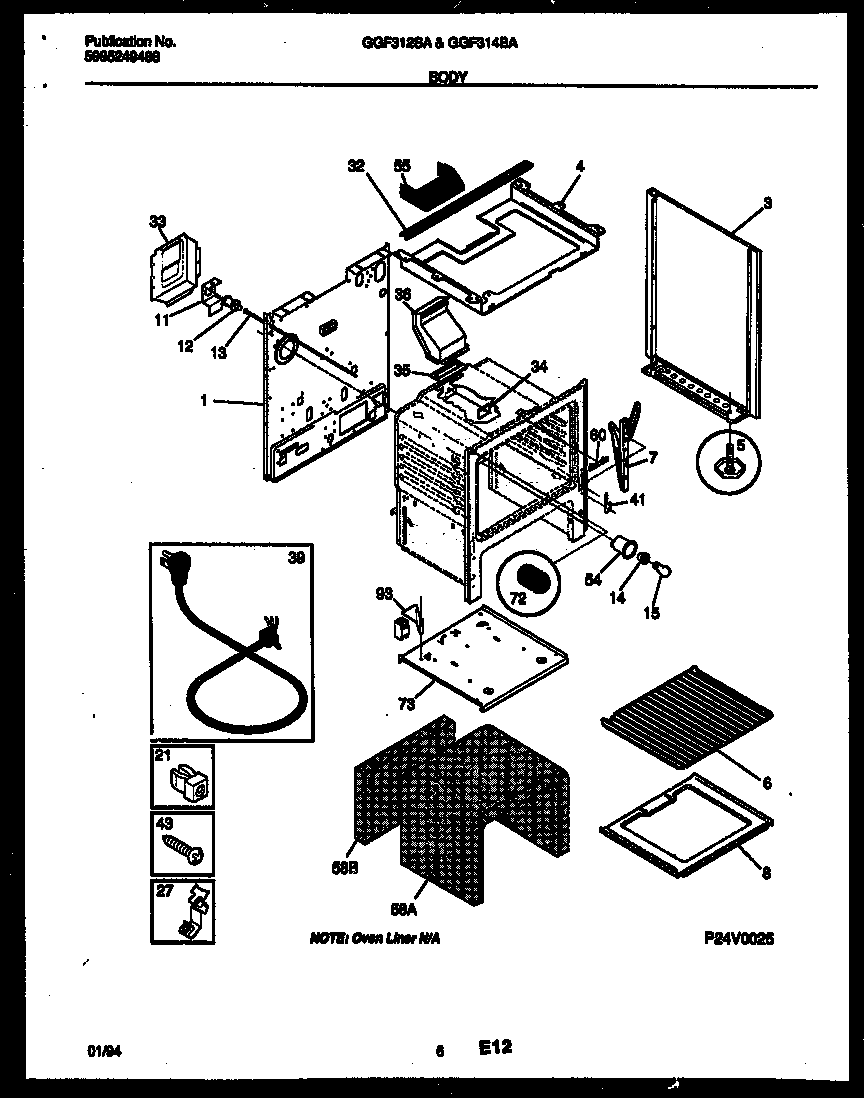

GGF314BAWB 04 – BODY PARTS

GGF314BAWB 04 – BODY PARTS

Written by

in

GGF314BAWB 04 – BODY PARTS

Products

PositionProduct
*69041WCI 5303280614
1WCI 3203082
3WCI 5303269543
3BWCI 5303269545
4BURNER BOX BOTTOM
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5AANTI-TIP KIT
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 3051511
55ASHIELD-FLUE, (NON-ILLUSTRATED)
55SHIELD-TOP (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 31605501
