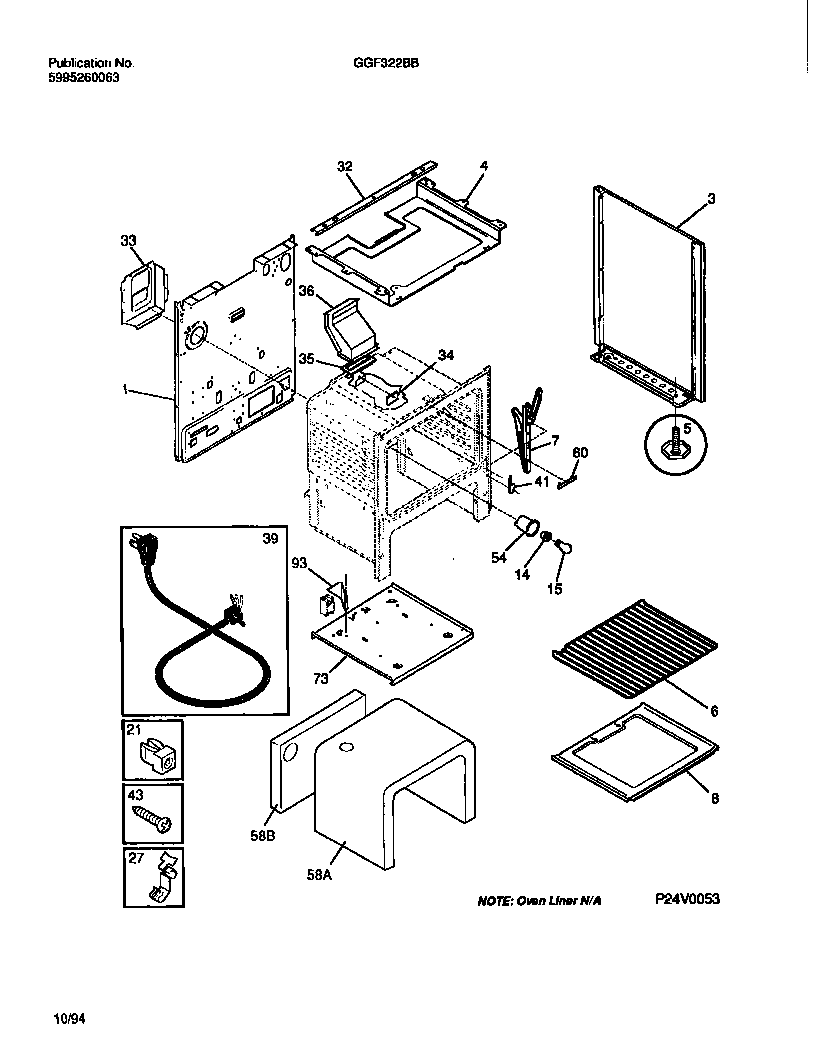

GGF322BBDA 04 – BODY

Products

Position	Product
*71602	TOUCH, UP PAINT, ALMOND (NI)
*71603	WCI 5303280614
1	WCI 316029405
3A	WCI 5303269545
3	WCI 5303269543
4	WCI 316067204
5B	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5A	WCI 3934058
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8A	316064600 Frigidaire Oven Support
8	PANEL-OVEN BOTTOM
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 316055601
34	WCI 3048607
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
58A	INSULATION, OVEN WRAPPER
58B	INSUL – OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
73	BASE-BROIL
93	WCI 316055501
