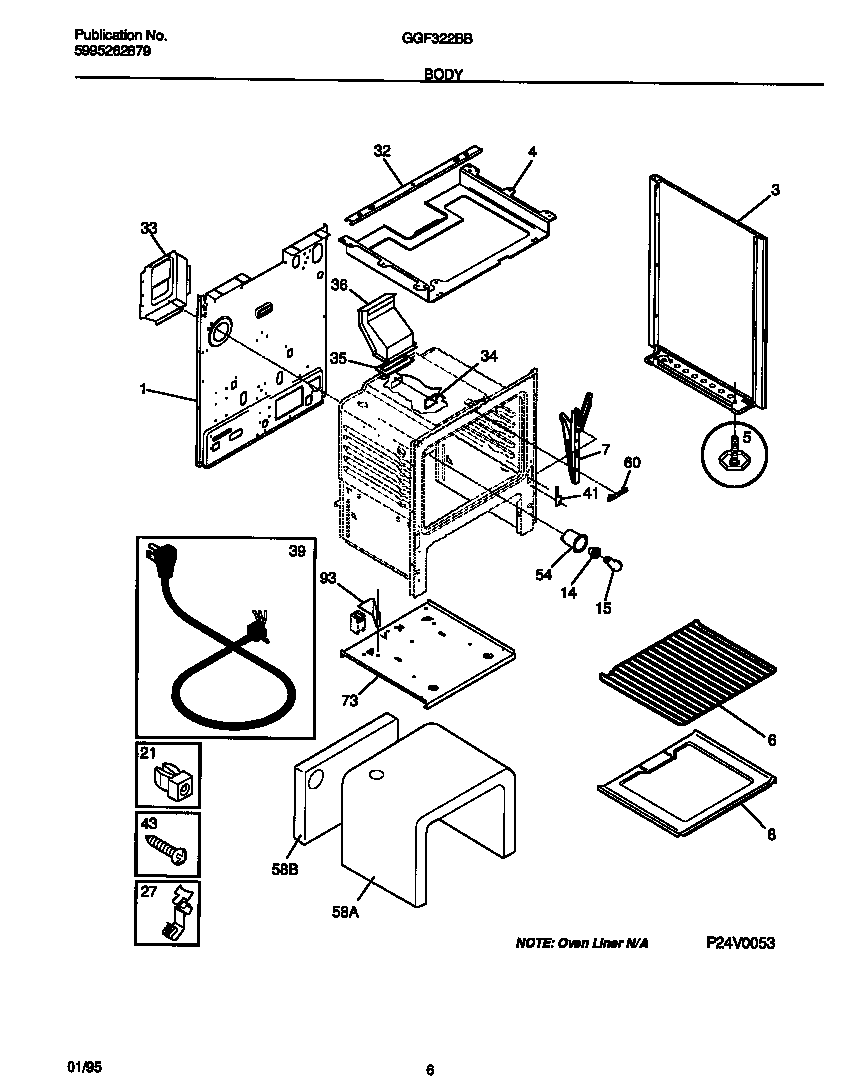

GGF322BBWB 04 – BODY

Products

Position	Product
*53202	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
*53203	WCI 5303280614
1	WCI 316029410
3	WCI 316081005
3	WCI 316081004
4	WCI 316067204
5D	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C	316116000 Frigidaire Screw
5B	WCI 3934058
5A	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8A	BTTM-OVEN
8B	316064600 Frigidaire Oven Support
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
58	INSUL – OVEN BACK (NON-ILLUSTRATED)
58	INSULATION, OVEN WRAPPER
60	COVER-OVEN FRONT
73	BASE-BROIL
93	WCI 316055501
